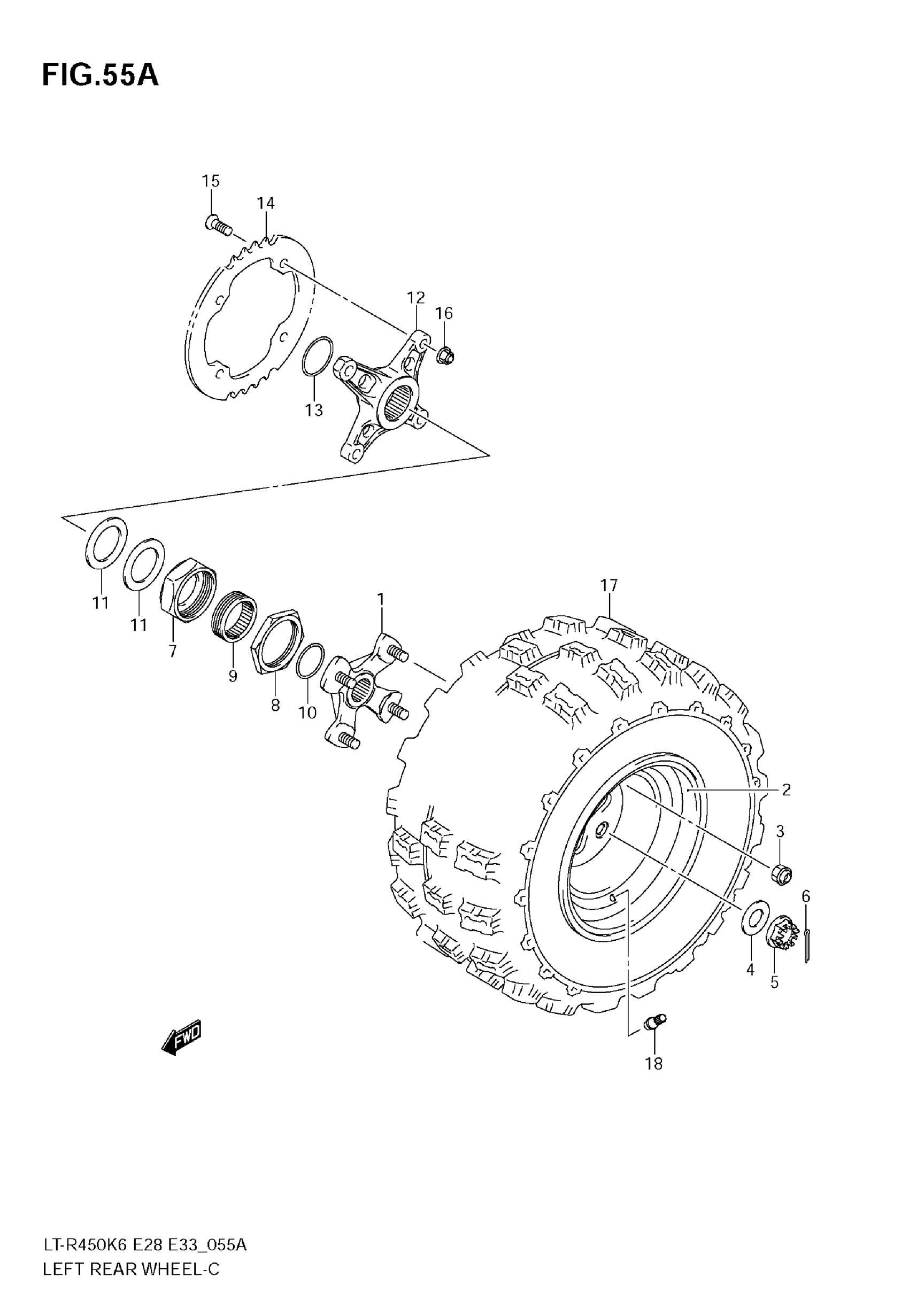

Suzuki LT-R450 (2009) LEFT REAR WHEEL (MODEL K8/K9) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-45G01

$245.55

2

RIM, REAR WHEEL (8X8.0AT) | LT-R450

65310-45G00

Unavailable

2

RIM, REAR WHEEL (8X8.0AT) | LT-R450Z

65310-45G10-YPJ

Unavailable

3

NUT

09159-10114

$5.11

4

WASHER

09164-20002

$3.70

5

NUT, HUB | MODEL K8 This part replaces 09141-20007.

09141-20009

$28.85

5

NUT, HUB | MODEL K9

09141-20009

$28.85

6

COTTER PIN

04111-4035A

$1.49

7

NUT, REAR AXLE

64871-45G00

$82.02

8

NUT, REAR AXLE LOCK

64872-45G00

$38.52

9

BOLT, REAR AXLE NUT

64873-45G00

$70.53

10

RING, STOPPER

09380-40004

$3.85

11

WASHER, REAR AXLE NO.1

64723-45G00

$14.23

12

FLANGE, REAR SPROCKET MOUNTING

64611-45G10

$236.72

13

SEAL, RR SPROCKET MTG DUST

09281-40001

$6.20

14

SPROCKET, REAR

64511-45G10

$103.03

15

SCREW

09120-10001

$4.56

16

NUT

09159-10115

$3.55

17

TIRE, REAR

65110-45G10

Unavailable

18

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
