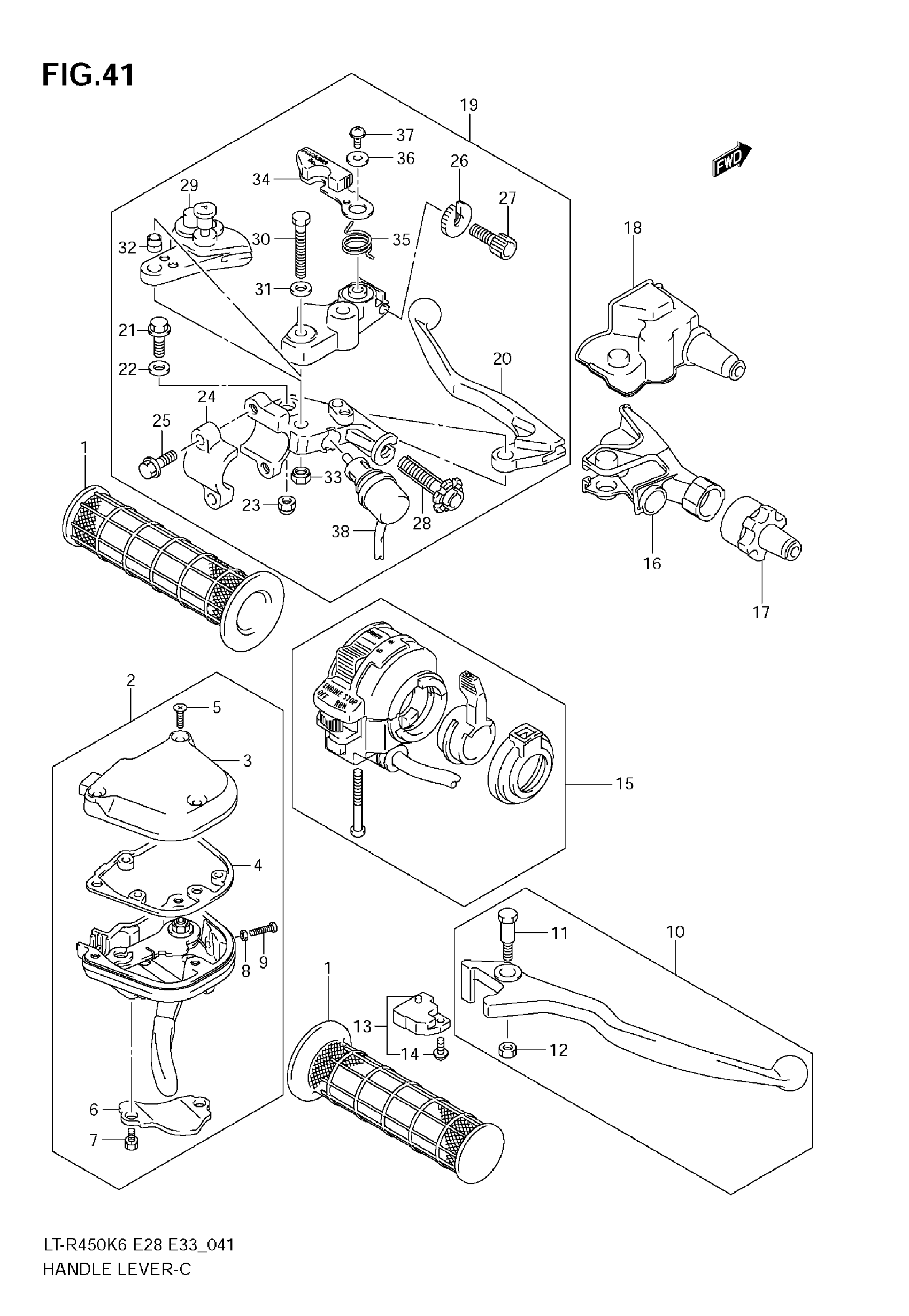

Suzuki LT-R450 (2009) HANDLE LEVER (MODEL K6/K7/K8) Diagram

#

Description
Price

1

GRIP, HANDLE | MODEL K6/K7 This part replaces 57211-21G00.

57211-21G10

$10.15

1

GRIP | MODEL K8

57211-21G10

$10.15

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 9

57100-38F50

$177.50

3

CAP

57121-38F50

$53.18

4

GASKET

57157-38F50

$22.10

5

SCREW

57128-07G00

$10.17

6

HOLSER

57126-07G00

$29.10

7

BOLT

57127-07G00

$11.95

8

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

9

SCREW

02112-0520B

$1.84

10

LEVER, FRONT BRAKE | Includes Item(s) 11 - 12

57300-45G00

$68.80

11

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

12

NUT,LEVER PIVOT

57433-09F00

$3.56

13

SWITCH ASSY,FR BRAKE | Includes Item(s) 14 This part replaces 57460-17C11.

57460-14J02

$38.46

14

SCREW

57465-17C00

$2.19

15

SWITCH ASSY, HANDLE LH

37400-45G00

$184.72

16

COVER, CLUTCH LEVER

57541-45G00

$13.92

17

COVER, CLUTCH ADJUSTER

57542-45G00

$12.17

18

COVER, TRANSFER LEVER

57543-45G00

$12.35

19

LEVER SET,CLUTC | Includes Item(s) 20 - 38 This part replaces 57500-45G00.

57500-45G02

$268.10

20

LEVER

57621-45G00

$30.48

21

BOLT, PIVOT

57513-07G00

$12.90

22

WASHER

57432-07G00

$10.55

23

NUT

08319-2106B

$2.32

24

HOLDER

57512-07G00

$36.17

25

..BOLT

01547-0620B

$2.45

26

NUT,LOCK This part replaces 57442-07G10.

57442-07G11

$23.35

27

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

28

ADJUSTER, CLUTCH CABLE

57441-37F00

$137.02

29

LOCK, SET, PARKING

57800-07860

Unavailable

30

BOLT, LOCK

57431-45G00

$14.77

31

.WASHER This part replaces 57433-07G00.

08322-0106B

$2.26

32

SPACER

57623-07G00

$13.35

33

NUT

08319-2106B

$2.32

34

KNOB SET, PARKING

57700-07850

$25.52

35

SCREW, PLATE

57619-07G00

Unavailable

36

WASHER

57618-07G00

Unavailable

37

SPRING, RETURN

57624-07G00

$13.85

38

SWITCH, CLUTCH

57560-07G10

$61.88
