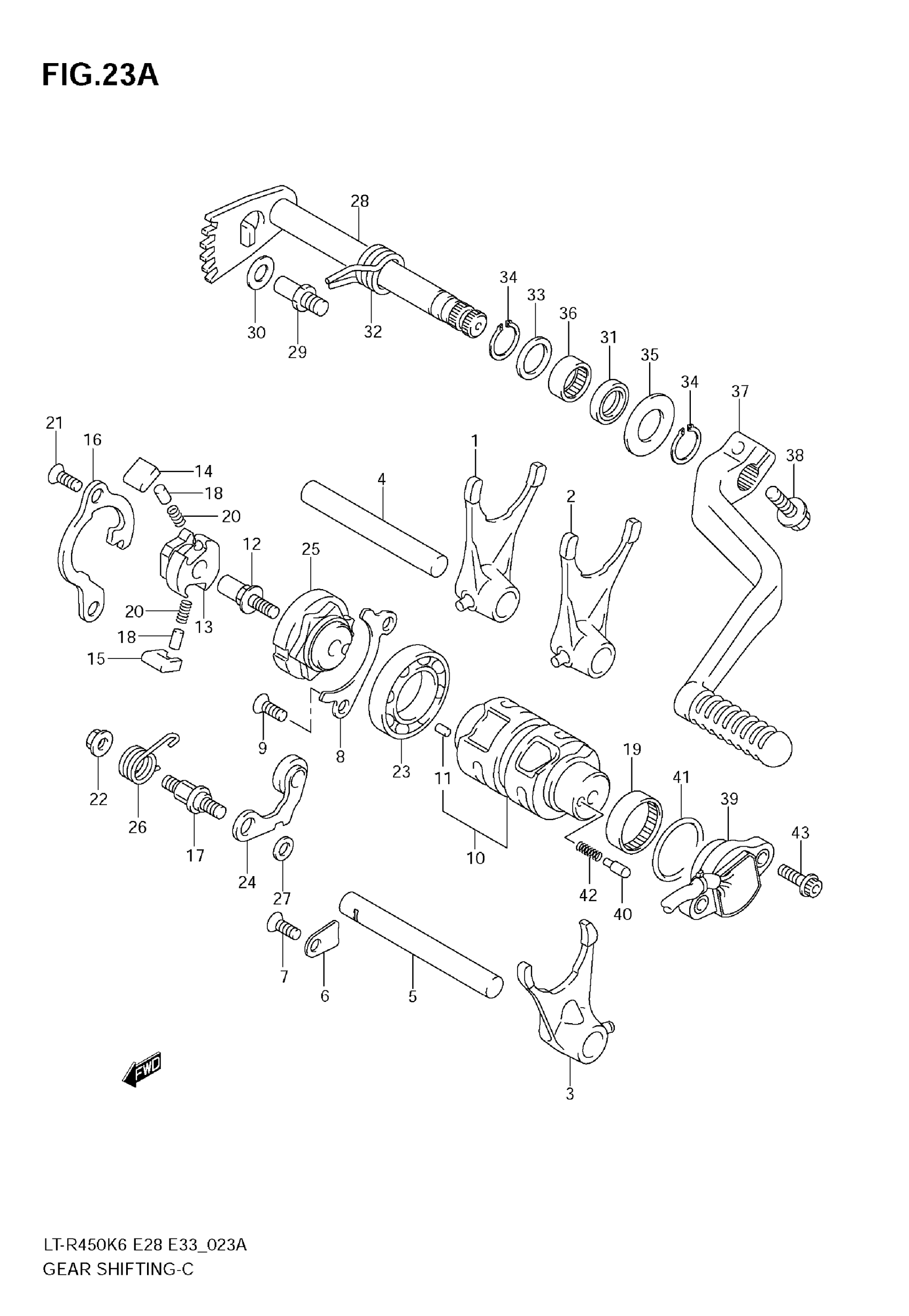

Suzuki LT-R450 (2009) GEAR SHIFTING (MODEL K8/K9) Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-45G10

$93.55

2

FORK, GEAR SHIFT NO.2

25211-45G10

$93.55

3

FORK, GEAR SHIFT NO.3

25231-45G10

$94.90

4

SHAFT, GEAR FORK NO.1

25411-45G00

$26.50

5

SHAFT, GEAR FORK NO.2

25412-45G00

$33.12

6

RETAINER

24741-20A00

$2.80

7

SCREW (6X12)

09126-06011

$2.01

8

REATAINER, SHIFT CAM

24741-45G00

$11.18

9

SCREW (6X12)

09126-06011

$2.01

10

CAM, GEAR SHIFT | Includes Item(s) 11

25310-45G10

$212.72

11

PIN (4X13.8)

04221-04089

$1.10

12

PIN, SHIFT

25313-45G00

$17.22

13

GEAR, GEAR SHIFT CAM

25322-45G00

$100.46

14

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

15

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

16

LIFTER, GEAR SHIFT PAWL

25331-45G00

$26.50

17

SUPPORT, CAM STOPPER

25356-12C00

$19.60

18

PIN, SHIFT PAWL

09209-05023

$2.73

19

BEARING, SHIFT CAM LH | 33X38X8

09263-25018

$19.30

20

SPRING, SHIFT PAWL RETURN

09440-04003

$1.48

21

SCREW, SHIFT PAWL LIFTER | 6X12

09120-06014

$2.43

22

NUT, SHIFT PAWL LIFTER

08316-1006B

$2.50

23

BEARING

08113-69050

$32.64

24

STOPPER, SHIFT CAM

25350-45G10

$19.12

25

PLATE, SHIFT CAM STOPPER

25381-45G00

$73.45

26

SPRING, SHIFT CAM

25355-38F00

$5.52

27

WASHER, SHIFT CAM

08211-06121

$1.56

28

SHAFT,GEAR SHIF This part replaces 25510-45G10.

25510-45G11

$116.15

29

STOPPER, GEAR SHIFT ARM

25671-37F10

$6.00

30

WASHER, GEAR SHAFT | 8X16X1.0

09181-08167

$1.98

31

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.04

32

SPRING, SHIFT SHAFT RETURN

09444-20010

Unavailable

33

WASHER, GEAR SHAFT | 14X20X1.0

09181-14139

$2.66

34

CIRCLIP, GEAR SHAFT

08331-3114A

$1.89

35

WASHER, GEAR SHIFT LH | 14X29X1.50

09160-14016

$1.91

36

BEARING, GEAR SHAFT (14X20X12)

09263-14027

$12.21

37

LEVER, GEAR SHIFT

25611-45G00

$103.13

38

BOLT, GEAR SHIFT

01550-0620A

$1.97

39

BASE ASSY, GEAR SHIFT TERM | MODEL K8

37730-45G00

$145.10

39

BASE ASSY, GEAR SHIFT TERM | MODEL K9

37730-45G10

$150.63

40

CONTACT

09209-05011

$2.02

41

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

42

SPRING

09440-04010

$1.52

43

BOLT

07120-0516A

$1.72
