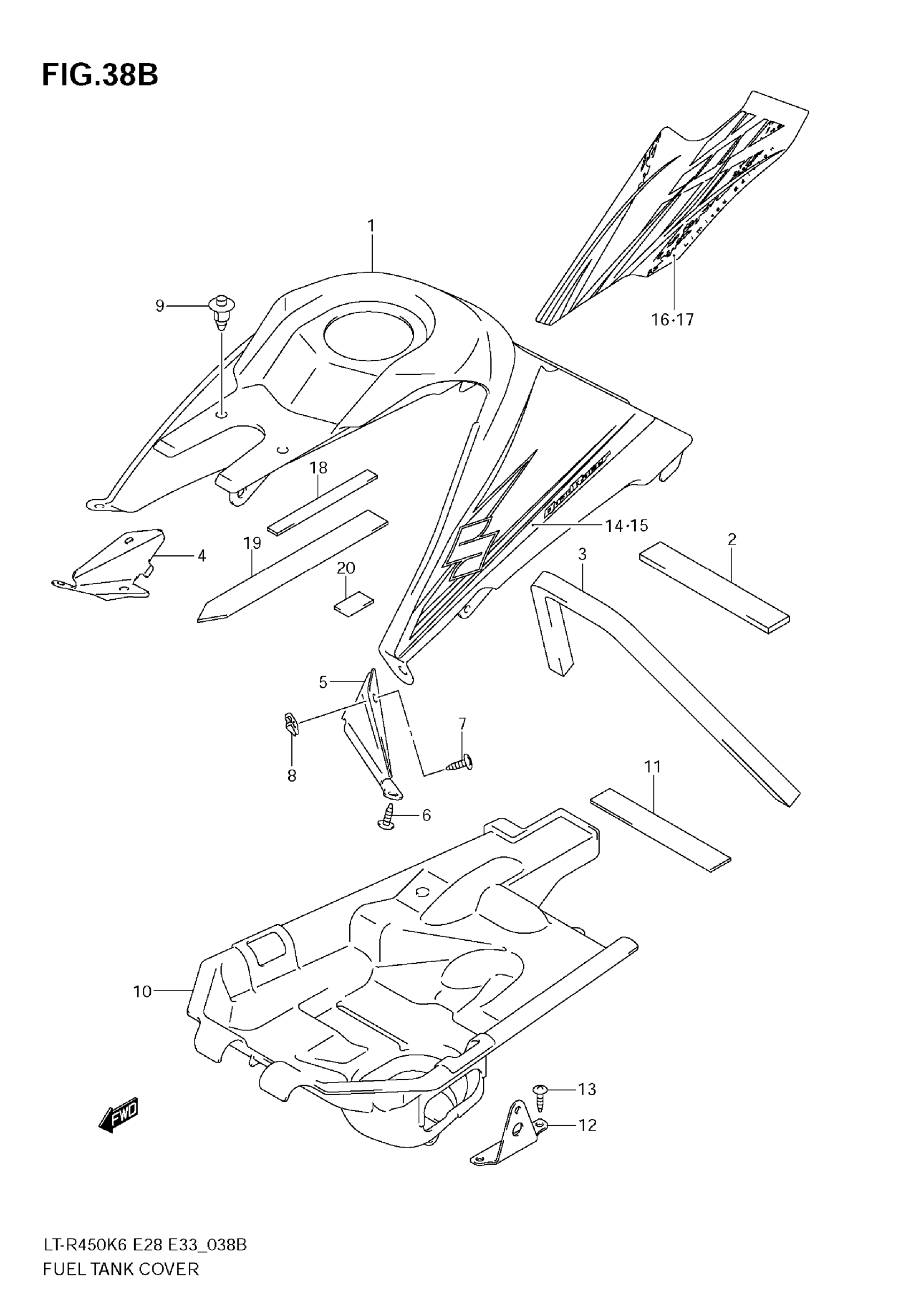

Suzuki LT-R450 (2009) FUEL TANK COVER (MODEL K9) Diagram

#

Description
Price

1

COVER, FUEL TANK (YELLOW) | LT-R450

44271-45G00-YU1

$205.32

1

COVER, FUEL TANK (BLACK) | LT-R450Z

44271-45G00-019

$197.72

2

CUSHION, NO.1

44556-45G00

Unavailable

3

CUSHION, NO.2

44555-45G00

Unavailable

4

BRACKET, RH

44174-45G00

$10.37

5

BRACKET, LH

44184-45G00

$10.17

6

SCREW, BRACKET

03241-0516A

$1.49

7

SCREW, COVER REAR

03241-1516A

$1.97

8

NUT (M5)

09148-05045

$2.36

9

CLIP

09409-07333

$2.31

10

COVER, FUEL TANK LOWER

44391-45G00

$175.98

11

CUSHION

47451-38A01

$4.43

12

BRACKET, HOSE GUIDE

44460-45G00

$14.27

13

SCREW

03241-1516A

$1.97

14

TAPE, COVER RH | LT-R450

68115-45G40-GTF

Unavailable

15

TAPE, COVER LH | LT-R450

68116-45G40-GTF

Unavailable

16

TAPE, COVER RH | LT-R450Z FOR 019

68115-45GA0-GVR

Unavailable

16

TAPE, COVER RH | LT-R450Z FOR ANT

68115-45GA0-GVS

Unavailable

17

TAPE, COVER LH | LT-R450Z FOR 019

68116-45GA0-GVR

Unavailable

17

TAPE, COVER RH | LT-R450Z FOR ANT

68116-45GA0-GVS

Unavailable

18

CUSHION, COVER NO.1

44556-45G00

Unavailable

19

CUSHION, COVER NO.3

44557-45G00

$17.70

20

CUSHION, LOWER

44558-45G00

Unavailable
