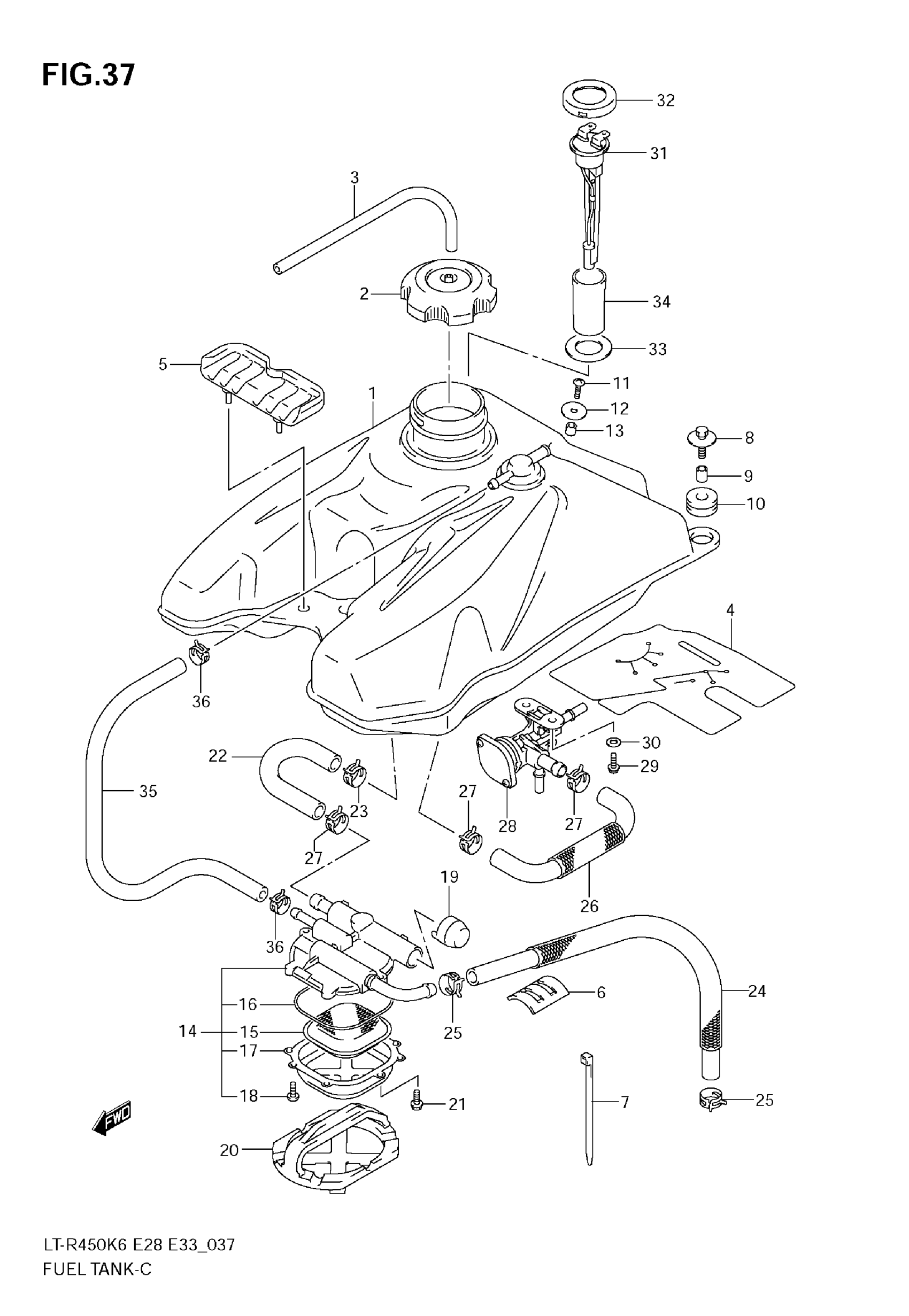

Suzuki LT-R450 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL | MODEL K6/K7

44100-45G00

Unavailable

1

TANK ASSY, FUEL | MODEL K8

44100-45G10

Unavailable

1

TANK ASSY, FUEL | MODEL K9

44100-45GA0

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

SHIELD, TANK

44191-45G00

$19.57

5

CUSHION,FUEL TA This part replaces 44541-45G00.

44541-45G01

$21.08

6

CUSHION, SIDE

44542-45G00

Unavailable

7

CLAMP

09407-14407

$3.57

8

BOLT, REAR | MODEL K6/K7 This part replaces 09116-06190-A05.

09116-06190

$2.34

8

BOLT, REAR | MODEL K8/K9

09116-06190

$2.34

9

SPACER | MODEL K6/K7 This part replaces 09180-06293-A05.

09180-06293

$2.58

9

SPACER | MODEL K8/K9

09180-06293

$2.58

10

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

11

SCREW, SEAT HOOK

02142-0620B

$1.80

12

WASHER

09160-06136

$1.84

13

SPACER | MODEL K6/K7 This part replaces 09180-06286-A05.

09180-06286

$2.50

13

SPACER | MODEL K8/K9

09180-06286

$2.50

14

COCK ASSY,FUEL | Includes Item(s) 15 - 18 This part replaces 44300-45G00.

44300-45G01

$197.91

15

FILTER, FUEL

44331-45G00

$63.07

16

O RING,FILTER C This part replaces 44346-45G00.

44346-45G01

$20.41

17

CUP

44347-45G00

$90.20

18

SCREW

44361-45G00

$6.80

19

CAP,FUEL COCK V This part replaces 44363-45G00.

44363-45G01

$16.18

20

CUSHION,FUEL FI This part replaces 44345-45G00.

44345-45G01

$17.02

21

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

22

HOSE, FUEL NO.1 | MODEL K6/K7 This part replaces 44421-45G00.

44421-45G10

$45.83

22

HOSE, FUEL NO.1 | MODEL K8/K9

44421-45G10

$45.83

23

CLIP, TANK | MODEL K6/K7

09401-16404

Unavailable

23

CLIP, TANK | MODEL K8/K9

09401-16407

$2.44

24

HOSE, FUEL NO.2 | MODEL K6/K7 This part replaces 44430-45G00.

44430-45G11

$51.96

24

HOSE, FUEL NO.2 | MODEL K8/K9

44430-45G11

$51.96

25

CLIP, FILTER OUTLET

09401-12410

$2.31

26

HOSE, FUEL RETURN | MODEL K6/K7 This part replaces 44440-45G00.

44440-45G10

$69.42

26

HOSE, FUEL RETURN | MODEL K8/K9

44440-45G10

$69.42

27

CLIP NO.1

09401-15404

$2.26

28

COCK ASSY,FUEL NO.2 | MODEL K6/K7 This part replaces 44300-45G10.

44300-45G21

$236.65

28

COCK ASSY,FUEL NO.2 | MODEL K8/K9 This part replaces 44300-45G20.

44300-45G21

$236.65

29

BOLT

01547-0616A

$2.03

30

GASKET

09168-06026

$3.10

31

GAUGE ASSY,FUEL This part replaces 34810-45G00.

34810-45G01

$102.47

32

RETAINER, LEVEL SWITCH

34813-45G00

$7.53

33

PACKING, LEVEL SWITCH

34825-45G00

$10.95

34

COVER

34827-45G00

Unavailable

35

HOSE, FILTER | MODEL K6/K7 This part replaces 44450-45G00.

44450-45G10

$40.10

35

HOSE, FILTER | MODEL K8/K9

44450-45G10

$40.10

36

CLIP, BREATHER

09401-12404

$2.34
