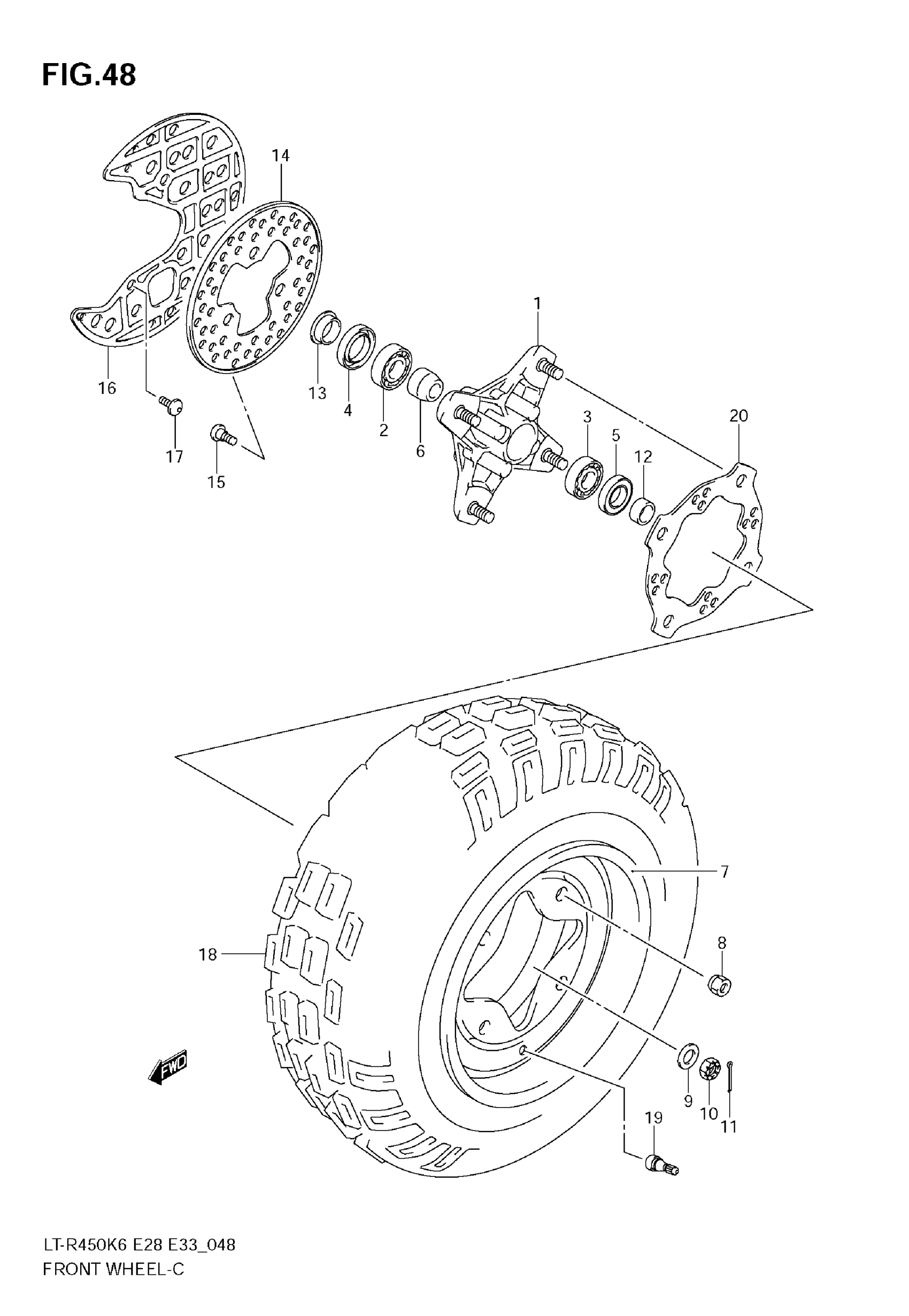

Suzuki LT-R450 (2009) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL (BLACK) | MODEL K6/K7 This part replaces 54110-45G10-019.

54110-45G20-019

$230.44

1

HUB, FRONT WHEEL (BLACK) | MODEL K8/K9

54110-45G20-019

$230.44

2

BEARING This part replaces 08120-60047.

08120-6004B

$16.23

3

BEARING, FRONT HUB OUTER

09262-15024

$24.83

4

DUST SEAL INNER

09284-26002

$10.92

5

DUST SEAL OUTER

09284-21001

$12.79

6

SPACER, FRONT HUB BEARING This part replaces 54731-07G01.

54731-07G10

$14.65

7

RIM, FRONT WHEEL (10X5.5AT) | LT-R450

55310-07G10

$555.60

7

RIM, FRONT WHEEL (10X5.5AT) | LT-R450Z

55310-07G20-YPJ

Unavailable

8

NUT

09159-10114

$5.11

9

WASHER | MODEL K6/K7/K8

08322-0114A

$1.84

9

WASHER | MODEL K9

09160-15052

$3.23

10

NUT, HUB

08314-4014A

$4.42

11

PIN, COTTER

04111-3025A

$1.49

12

SPACER, FRONT AXLE

09180-15068

$4.90

13

SPACER, FR AXLE NO.2

09180-20122

$17.67

14

DISC, FRONT BRAKE

59211-45G00

$191.90

15

BOLT, BRAKE DISC

09106-08160

$3.57

16

COVER, FRONT DISC

59231-45G00

$32.12

17

SCREW

09139-06158

$4.90

18

TIRE, FRONT | MODEL K6/K7/K8

55110-45G00

Unavailable

18

TIRE, FRONT | MODEL K9

55110-45G10

Unavailable

19

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

20

PLATE, FRONT HUB | MODEL K6/K7

54138-07G00

$17.03

20

PLATE, FRONT HUB | MODEL K8/K9

54138-07G10

$18.29
