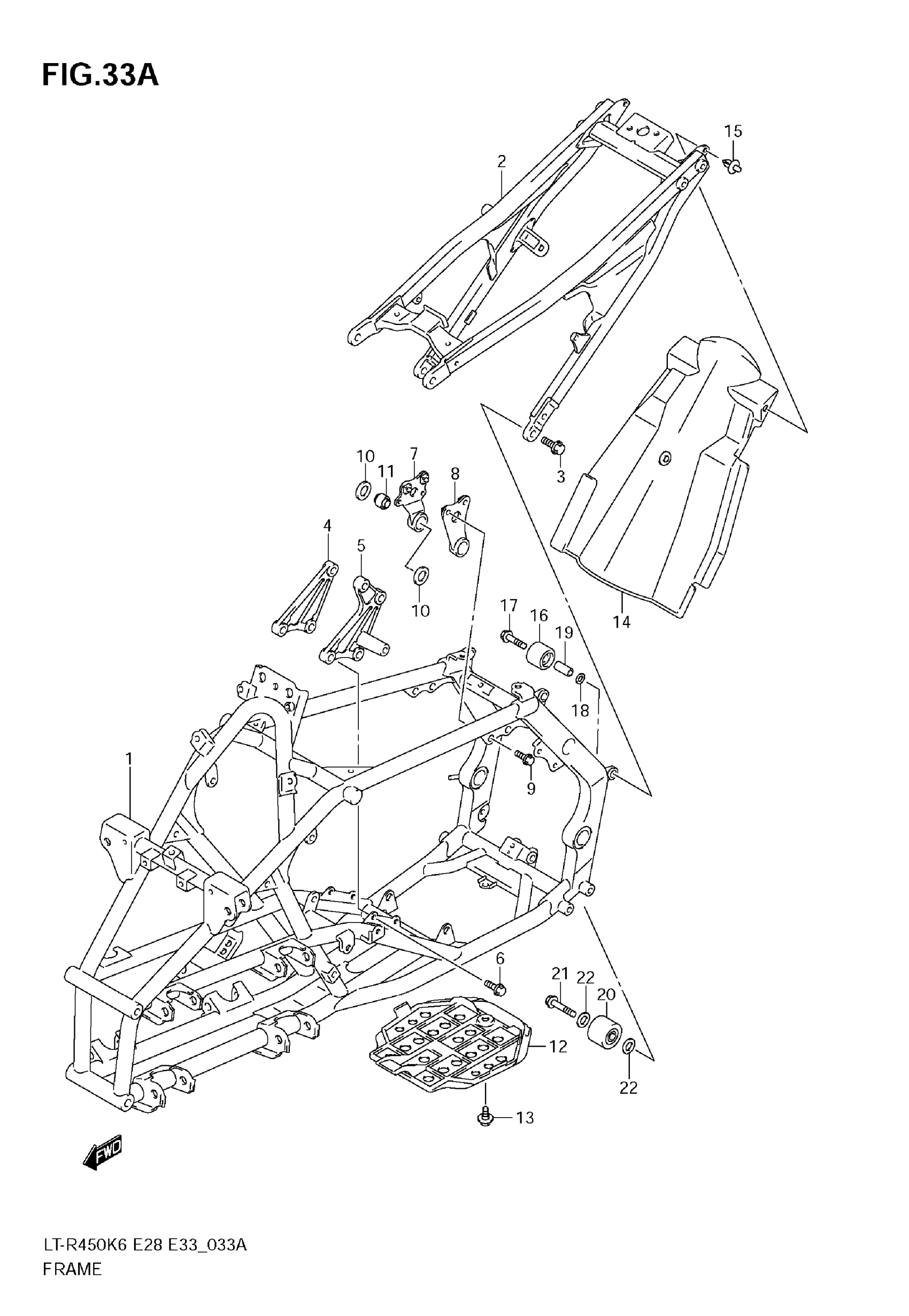

Suzuki LT-R450 (2009) FRAME (MODEL K9) Diagram

#

Description
Price

1

FRAME (BLUE) | LT-R450

41100-45G20-YBA

Unavailable

1

FRAME (GOLD) | LT-R450Z FOR 019

41100-45G20-YLC

Unavailable

1

FRAME (BLACK) | LT-R400Z FOR ANT

41100-45G20-019

Unavailable

2

RAIL, SEAT (SILVER) | LT-R450

41200-45GA0-YD8

$1,382.13

2

RAIL, SEAT (BLACK) | LT-R450Z

41200-45GA0-019

Unavailable

3

BOLT

09103-10310

$3.10

4

PLATE, MOUNT FRONT RH

41911-45G01

$112.37

5

PLATE, MOUNT FRONT LH

41921-45G01

$122.58

6

BOLT (8X16)

01550-0816A

$2.32

7

PLATE, MOUNT UPPER RH

41930-45G10

$24.52

8

PLATE, MOUNT UPPER LH

41940-45G10

$24.52

9

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

10

WASHER

09160-10142

$2.34

11

BUSH

09319-10070

$18.25

12

DROTECTOR, ENGINE

42511-45G00

$54.18

13

BOLT

09111-06085

$4.54

14

PROTECTOR, MUFFLER

42541-45G00

$63.47

15

CLIP

09409-08327

$2.32

16

ROLLER, CHAIN UPPER

43911-45G00

$31.10

17

BOLT

09103-08377

$3.49

18

WASHER

09181-08167

$1.96

19

SPACER

09180-08149

$5.58

20

ROLLER, CHAIN LOWER

43910-27C11

$64.67

21

BOLT,8X41

09103-08083

$3.70

22

WASHER

09181-08167

$1.96
