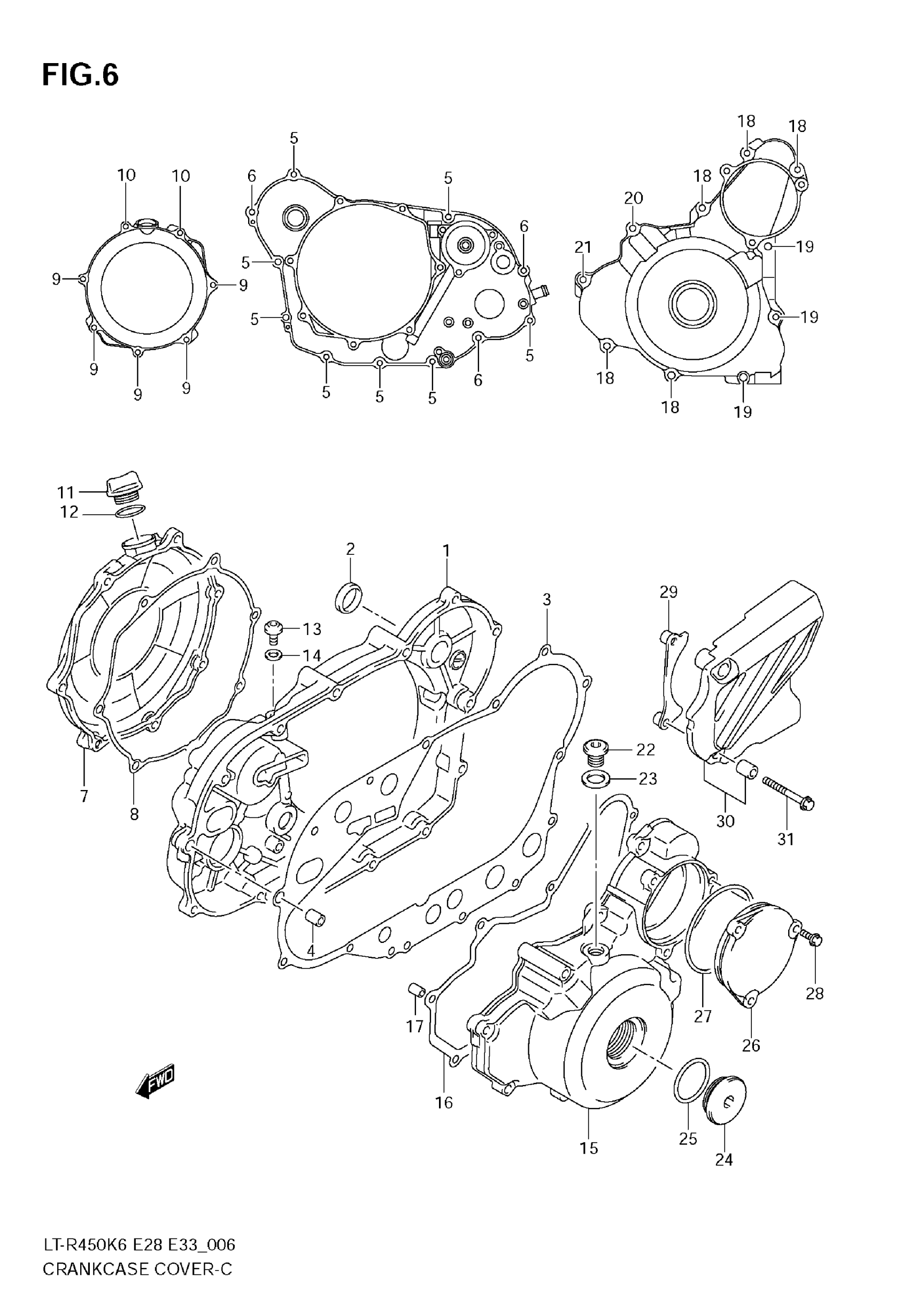

Suzuki LT-R450 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH INNER

11340-45G00

Unavailable

2

PLUG

11342-15D00

$10.07

3

GASKET, CLUTCH COVER

11482-45G00

$21.21

4

PIN

04211-09149

$1.65

5

BOLT (6X25)

09103-06212

$2.47

6

BOLT (6X35)

09103-06214

$2.48

7

COVER, CLUTCH OUTER | MODEL K6/K7/K8

11371-45G00

Unavailable

7

COVER, CLUTCH OUTER | MODEL K9

11371-45G10

Unavailable

8

GASKET, CLUTCH COVER OUTER

11484-45G00

$15.88

9

BOLT, OUTER COVER (6X25)

09103-06212

$2.47

10

BOLT, OUTER COVER (6X70)

09103-06225

$3.16

11

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

12

O RING

09280-17003

$1.65

13

PLUG, OIL GALLERY (8X12)

09106-08116

$3.20

14

GASKET (8.2X14X1)

09168-08016

$1.65

15

COVER, MAGNETO | MODEL K6/K7/K8

11351-45G00

$427.12

15

COVER, MAGNETO | MODEL K9 This part replaces 11351-45G10.

11351-45G11

$387.05

16

GASKET, MAGNETO COVER | MODEL K6/K7/K8

11483-45G00

$12.42

16

GASKET, MAGNETO COVER | MODEL K9

11483-45G10

$12.42

17

PIN

04211-09149

$1.65

18

BOLT (6X25)

09103-06212

$2.47

19

BOLT (6X35)

09103-06214

$2.48

20

BOLT (6X65)

09103-06239

$2.66

21

BOLT

01547-06357

$2.03

22

PLUG, T.D.C. | MODEL K6

09247-14026

$3.76

22

PLUG, SHAFT | MODEL K7/K8/K9 This part replaces 09248-14012.

09248-14011

$2.98

23

GASKET

09168-14002

$2.26

24

PLUG, CRANK HOLE

09259-36016-20H

$13.80

25

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

26

COVER, STARTER IDLE GEAR

11352-29F50

$36.79

27

O RING | MODEL K6/K7

09280-71004

$23.94

27

O RING | MODEL K8/K9

09280-71008

$6.88

28

BOLT

09103-06274

$2.03

29

PLATE, FR CHAIN GUIDE

27640-45G00

$20.80

30

COVER, ENGINE SPROCKET | MODEL K6 This part replaces 11360-45G00.

11360-45G01

$77.75

30

COVER, ENGINE SPROCKET | MODEL K7/K8/K9

11360-45G01

$77.75

31

BOLT (6X20) | MODEL K6/K7/K8

09103-06238

$2.66

31

BOLT (6X50) | MODEL K9

09103-06304

$2.53
