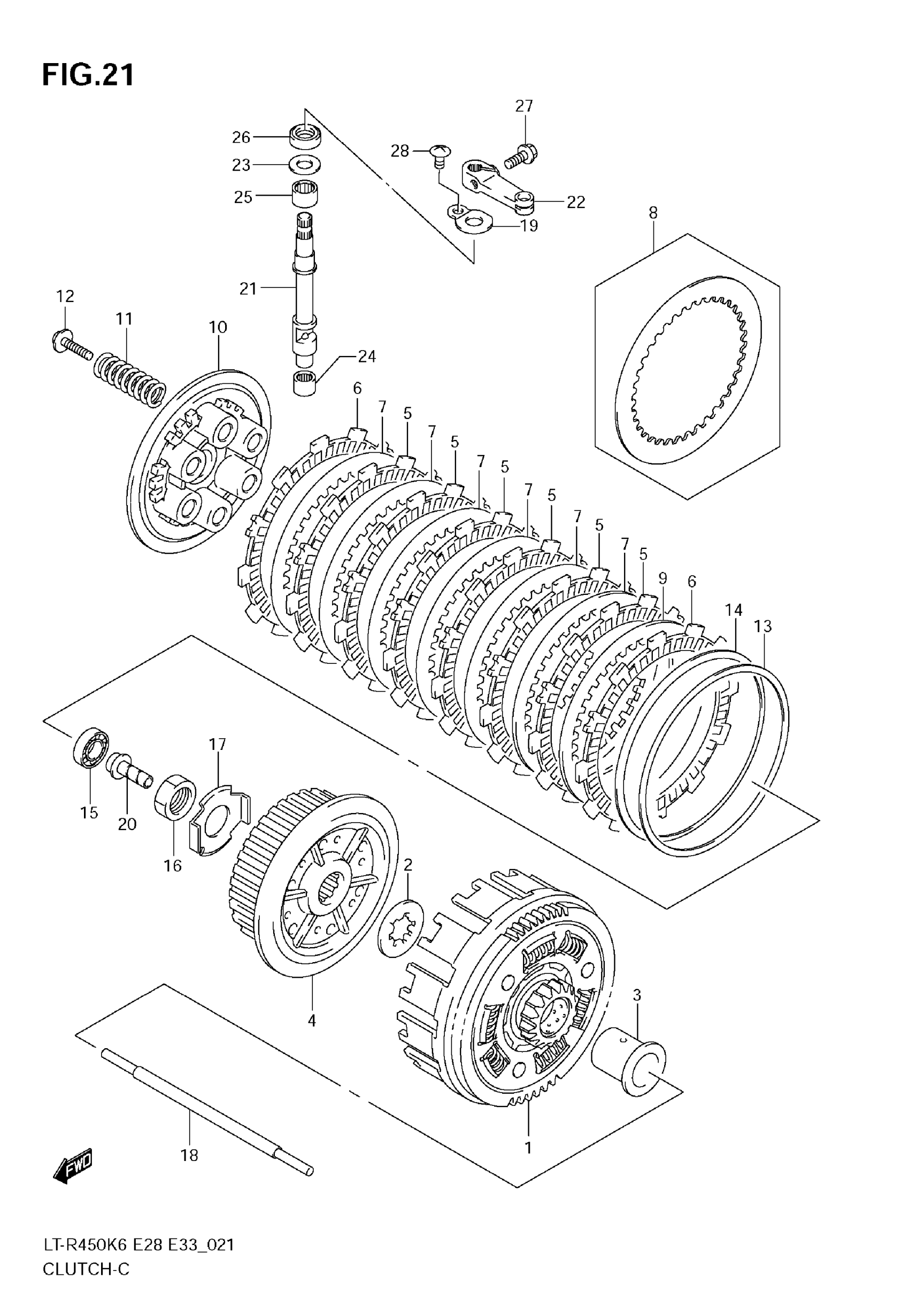

Suzuki LT-R450 (2009) CLUTCH (MODEL K6/K7) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:77/18

21200-45G00

$415.82

2

WASHER, HUB THR

21415-35G00

$40.68

3

SPACER, PRIMARY DRIVEN

21251-29F00

$53.18

4

HUB, SLEEVE

21411-35G11

$105.52

5

PLATE, DRIVE NO.1

21441-45G00

$34.28

6

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

$13.53

7

PLATE,CLUTCH DRIVEN (T:1.6) | T:1.6

21451-35G00

$9.89

8

PLATE, DRIVEN NO.3 | T:2.0

21451-45G00

$16.65

9

PLATE,CLUTCH DRIVEN (T:1.6) | T:1.6

21452-35G00

$12.40

10

DISC, PRESSURE

21462-35G10

$82.87

11

SPRING

09440-18039

$6.79

12

BOLT (6X35)

21412-45G00

$3.25

13

SEAT, WAVE WASHER | 113.5X121.5X1.2

21471-35G00

$22.27

14

WASHER,CLUTCH PLATE WAVE

21472-35G00

$21.87

15

BEARING, RELEASE THRUST

08110-68040

$46.17

16

NUT

09140-18017

$12.00

17

WASHER,CLUTCH SLEEVE HUB LOCK

21416-35G10

$4.72

18

ROD, CLUTCH PUSH

23110-45G00

$25.52

19

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.13

20

PIECE, CL RLSE

23121-45G00

$30.70

21

CAMSHAFT, CL RLSE

23122-45G00

$64.17

22

ARM, CL RLSE

23271-31D00

$42.45

23

WASHER, CL RLSE | 10X20X1

09181-10195

$1.99

24

BEARING, CL RLSE LOW | 10X14X10

09263-10014

$13.52

25

BEARING, CL RLSE UPPER | 12X16X10

09263-12024

$12.67

26

SEAL, CL RLSE ARM | 10X20X6

09282-10012

$7.98

27

BOLT, CL RLSE ARM

01547-0616B

$2.45

28

STOPPER, CL RLSE CAM SHAFT

02142-0610B

$2.15
