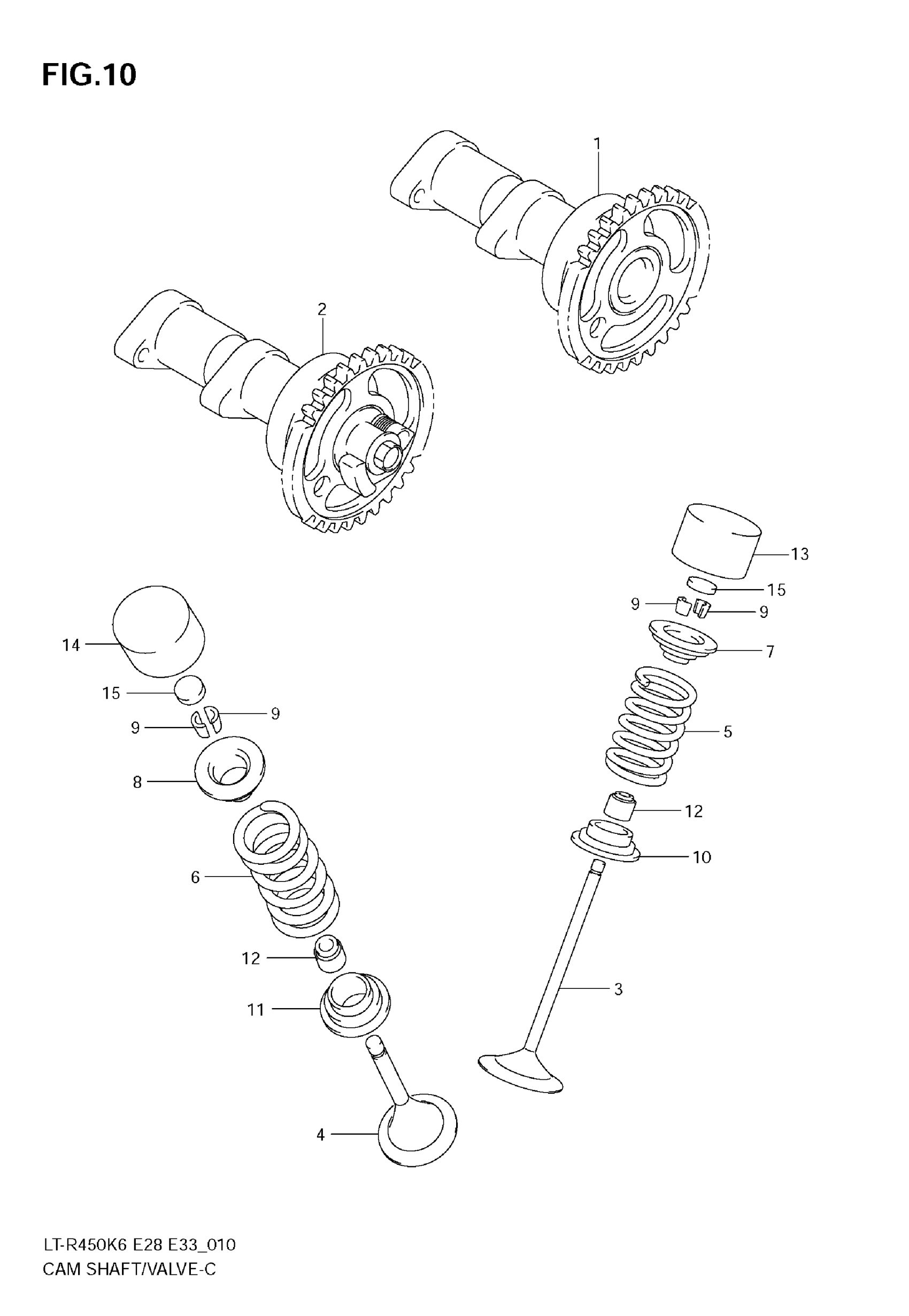

Suzuki LT-R450 (2009) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE | MODEL K6/K7

12710-45G00

$487.50

1

CAMSHAFT, INTAKE | MODEL K8 This part replaces 12710-45G10.

12710-45G20

$496.70

1

CAMSHAFT, INTAKE | MODEL K9

12710-45G20

$496.70

2

CAMSHAFT,EXHAUS | MODEL K6/K7 This part replaces 12720-45G00.

12720-45G01

$627.69

2

CAMSHAFT, EXHAUST | MODEL K8 This part replaces 12720-45G10.

12720-45G20

$636.69

2

CAMSHAFT, EXHAUST | MODEL K9

12720-45G20

$636.69

3

VALVE, INTAKE

12911-45G00

$112.55

4

VALVE,EXHAUST This part replaces 12912-45G10.

12912-45G11

$123.61

5

SPRING, VALVE INTAKE

12921-35G00

$14.65

6

SPRING, VALVE EXHAUST

12922-35G00

$13.95

7

RETAINER,VALVE SPRING

12931-02F10

$15.16

8

RETAINER, SPRING EXHAUST

12931-35G00

$15.16

9

COTTER, VALVE

12932-24400

$1.94

10

SEAT, SPRING INTAKE

12933-35G00

$8.32

11

SEAT, SPRING EXHAUST

12933-35G10

$8.32

12

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

13

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

14

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

15

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

15

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

15

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

15

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

15

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

15

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

15

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

15

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

15

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

15

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

15

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

15

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

15

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

15

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

15

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

15

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

15

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

15

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

15

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

15

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

15

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

15

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

15

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

15

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

15

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

16

SHIM SET, TAPPET INC.REF.NO.15-5%15-25 (5PCS.EACH) & NO.17 | OPT NOT SHOWN; Includes Item(s) 17

12800-41810

$1,138.37

17

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

Unavailable
