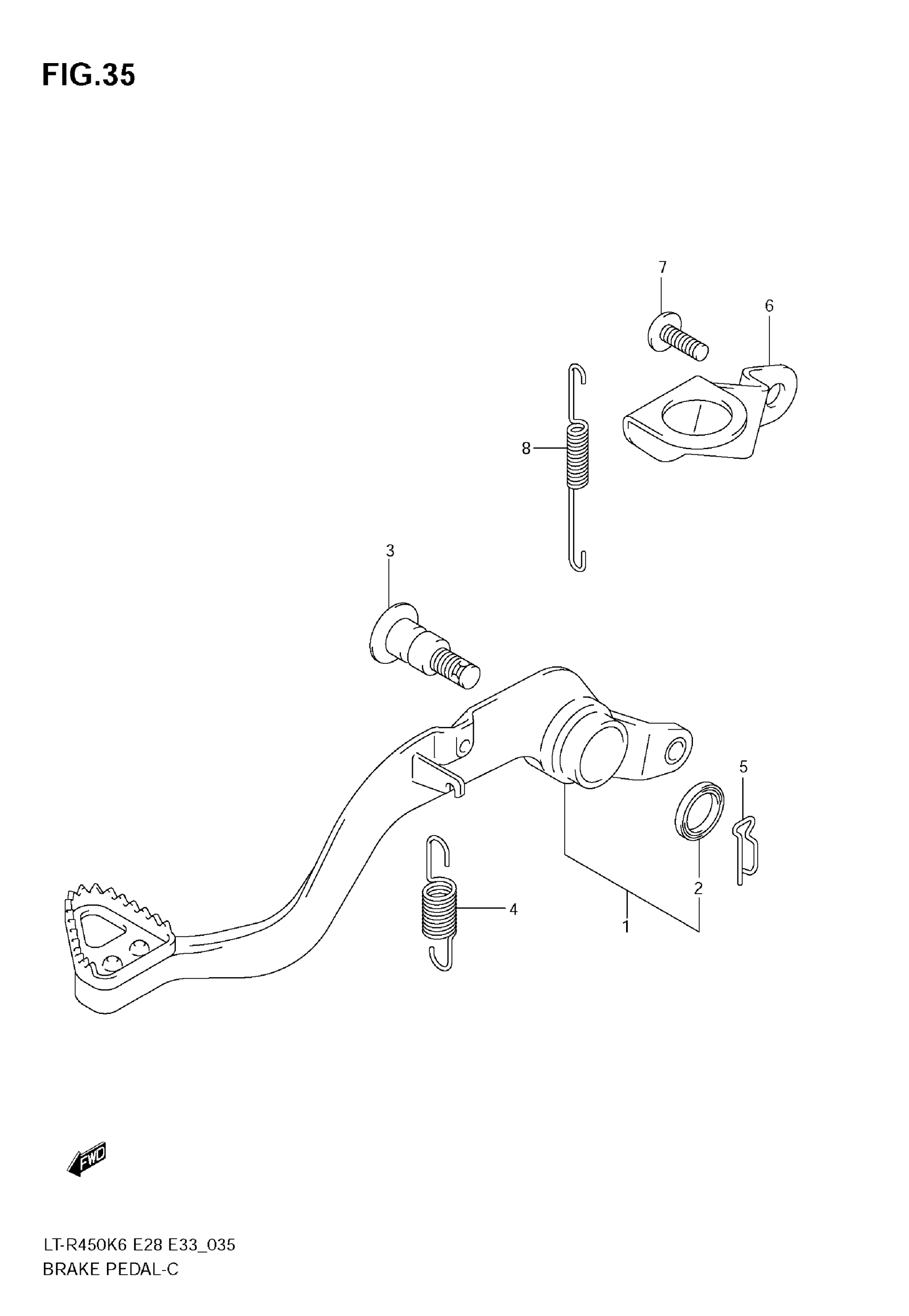

Suzuki LT-R450 (2009) BRAKE PEDAL (MODEL K6/K7/K8) Diagram

#

Description

Price

1

PEDAL, BRAKE | Includes Item(s) 2

43100-45G00

$211.72

2

DUST SEAL

09284-15006

$3.55

3

SHAFT | MODEL K6/K7 This part replaces 43142-37F00-A05.

43142-37F00

$23.40

3

SHAFT, BRAKE PEDAL | MODEL K8

43142-37F00

$23.40

4

SPRING | MODEL K6/K7 This part replaces 09443-13023-A05.

09443-13023-XC0

$3.91

4

SPRING, RETURN | MODEL K8

09443-11036

$4.93

5

PIN

09385-10006

$2.80

6

BRACKET, SWITCH

43251-45G00

Unavailable

7

BOLT | MODEL K6/K7 This part replaces 09139-06139-A05.

09139-06139

$3.23

7

SCREW | MODEL K8

09139-06139

$3.23

8

SPRING

09443-06088

$4.86
