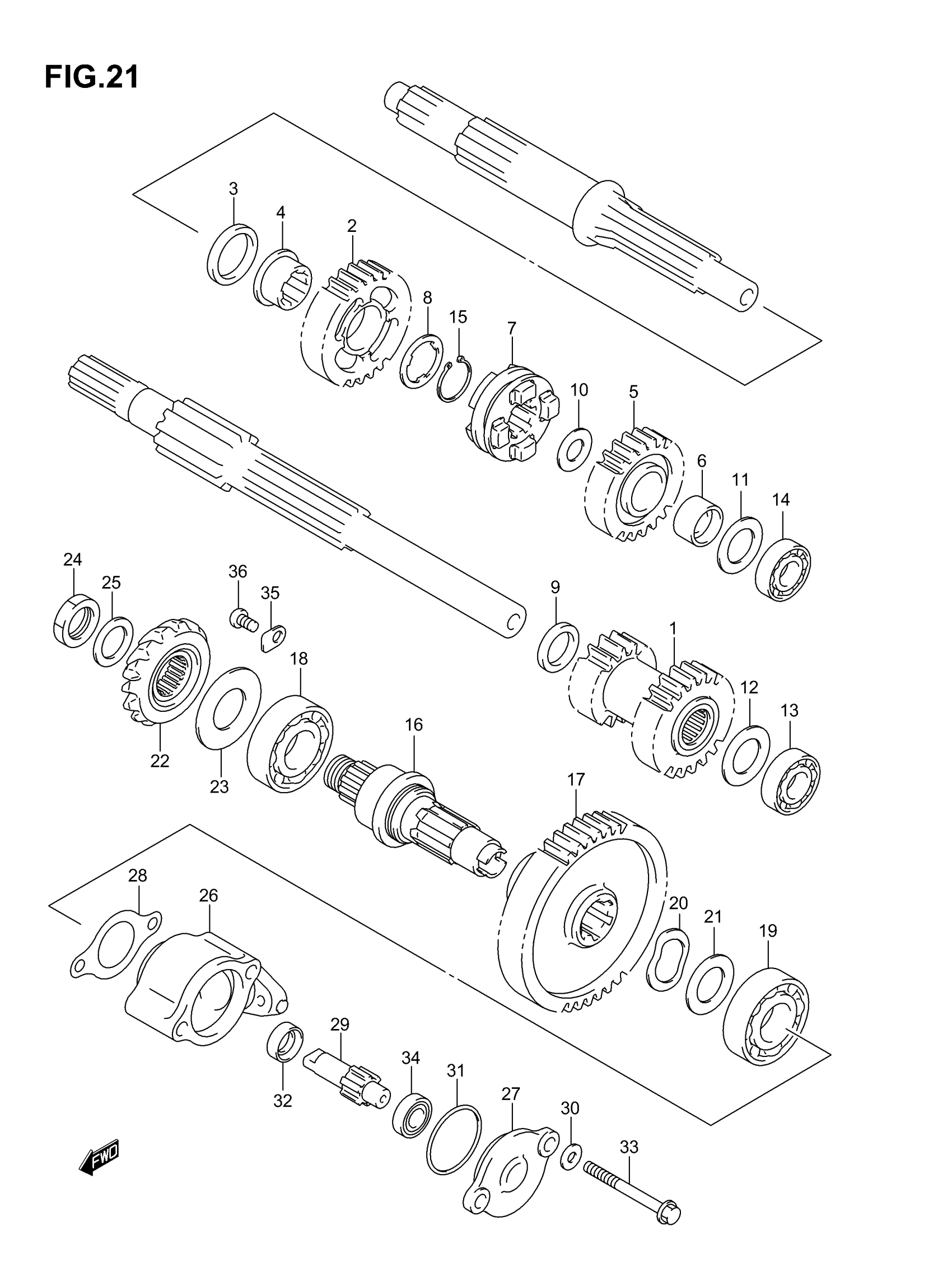

Suzuki LT-F500F (2007) TRANSMISSION (2) Diagram

#

Description
Price

1

GEAR, SUB T/M IDLE | NT:22/17

29150-44D00

Unavailable

2

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-03G50

Unavailable

3

SPACER, SUB T/M DRIVE

29212-44D50

Unavailable

4

BUSH, SUB DRIVE NO.1

29215-44D50

Unavailable

5

GEAR, SUB T/M DRIVE NO.2 | NT:28

29221-44D50

Unavailable

6

BUSH, SUB T/M DRIVE NO.2

29222-44D00

$26.34

7

DOG, SUB T/M SLIDING

29231-03G50

Unavailable

8

WASHER, SUB T/M DRIVE

09167-25016

$3.72

9

SPACER, SUB T/M IDLE GEAR | 20X29X4.5

09180-20101

Unavailable

10

WASHER, SUB T/M DRIVE NO.2, RH | 20X30X1.0

09181-20195

$2.60

11

WASHER, SUB T/M DRIVE NO.2 LH | 20X34X1.0

09181-20251

$2.79

12

WASHER, SUB T/M IDLE GEAR | 20X34X1.0

09181-20251

$2.79

13

BEARING, CNTR SHAFT, LH | 20X47X14

09262-20139

$44.97

14

BEARING, DRIVE SHAFT, LH | 20X52X15

09262-20080

$38.77

15

SNAP RING

09380-25003

$3.04

16

SHAFT, SUB T/M OUTPUT

29121-44D21

Unavailable

17

GEAR, SUB T/M DRIVEN | NT:43

29311-03G60

Unavailable

18

BEARING, SUB T/M, RH | 35X72X17

09262-35038

$46.10

19

BEARING, SUB T/M, LH | 20X52X15.0

09262-20073

$23.28

20

LOCK WASHER

09164-20004

$4.77

21

WASHER, SUB T/M DRIVEN | 20X34X1.0

09181-20251

$2.79

22

GEAR, SEC DRIVE BEVEL GR | NT:15

24911-44D11

$223.23

23

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.08/1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1.28/1.30

24935-03811

$133.70

24

NUT, SEC DRIVE BEVEL

09140-20012

$4.32

25

WASHER, SEC DRIVE BEVEL

09164-20007

$4.60

26

HOUSING, ODOMETER GEAR

26441-03G50

Unavailable

27

COVER, ODOMETER

26442-03G50

$32.17

28

GASKET, ODOMETER

26451-19B12

$4.72

29

SHAFT, ODOMETER GEAR

26461-03G50

Unavailable

30

GASKET, SLEEVE BOLT | 5.8X13X1.2

09168-06023

$2.35

31

O RING, GEAR HOUSING | DD:1.9,ID:32.7

09280-33005

$2.64

32

OIL SEAL (12X21X7) | 12X21X7

09282-12009

$13.11

33

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

34

BEARING, GEAR SHAFT

08130-68007

$25.40

35

RETAINER, SEC DRIVE SFT BRG

24741-21A00

$2.81

36

SCREW (6X12)

09125-06110

$2.12
