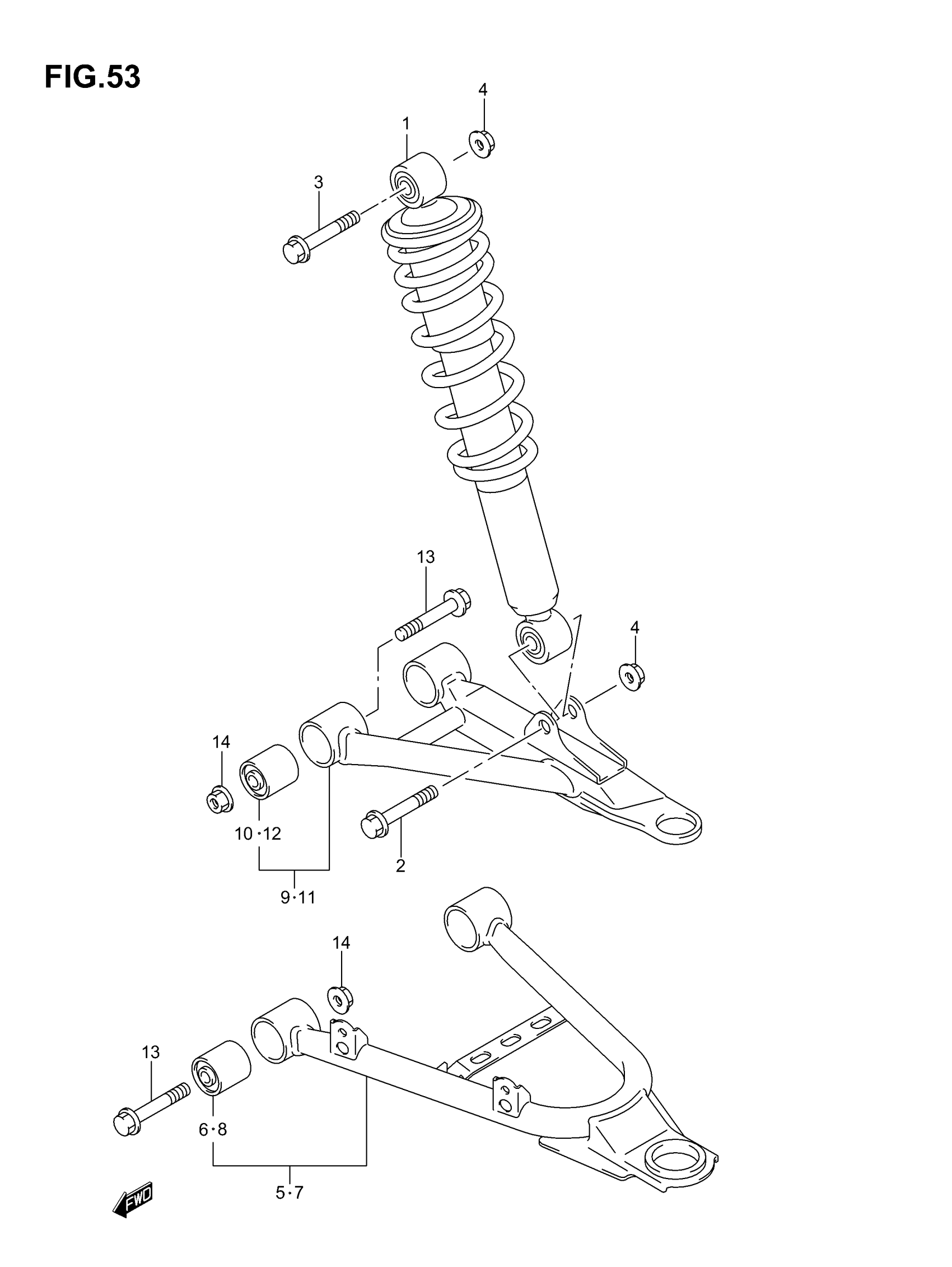

Suzuki LT-F500F (2007) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | MODEL K4

52100-03GG0-019

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | MODEL K5/K6 This part replaces 52100-03GH0-019.

52100-03GH1-019

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | MODEL K7

52100-03GH1-019

Unavailable

2

BOLT (10X48) | LOWER

09103-10126

$4.50

3

BOLT | UPPER

09103-10352

$5.88

4

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

5

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 6

52410-03830

Unavailable

6

BUSH (10X35.1X38)

09319-10055

$21.02

7

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 8

52420-03830

Unavailable

8

BUSH (10X35.1X38)

09319-10055

$21.02

9

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 10

52430-03830

Unavailable

10

BUSH (10X35.1X38)

09319-10055

$21.02

11

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 12

52440-03830

$388.48

12

BUSH (10X35.1X38)

09319-10055

$21.02

13

BOLT (10X60)

09103-10301

$5.98

14

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
