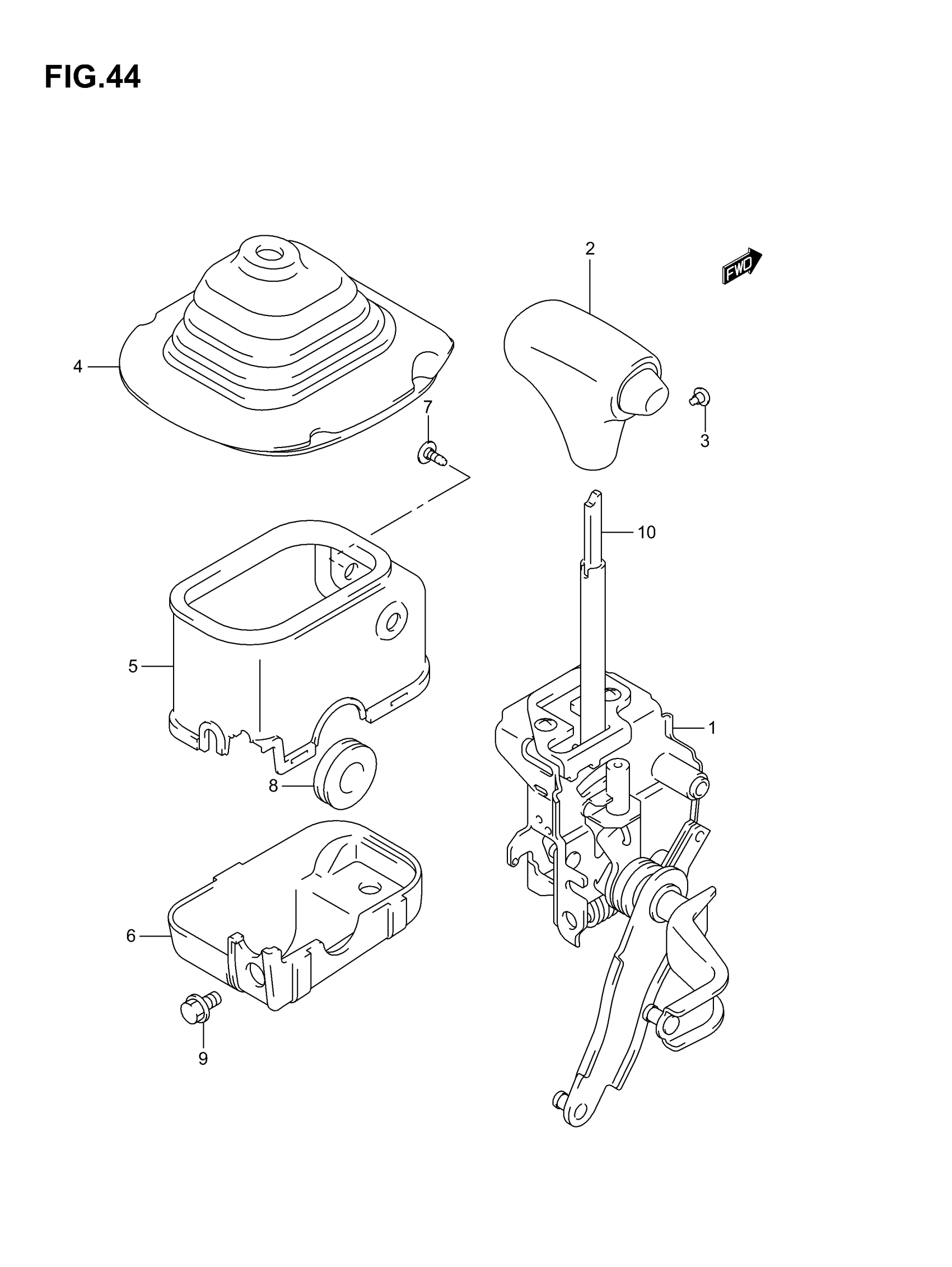

Suzuki LT-F500F (2007) SHIFT LEVER Diagram

#

Description

Price

1

LEVER ASSY, TRANSMISSION

57810-03GF0

Unavailable

2

KNOB, T/M LEVER

57830-03GF0

$57.67

3

SCREW, KNOB

09139-04007

$2.50

4

BOOT, T/M LEVER

57841-03G00

$29.95

5

COVER, T/M LEVER UPPER | MODEL K4/K5 This part replaces 57843-03G00.

57843-03G01

$42.98

5

COVER, T/M LEVER UPPER | MODEL K6/K7

57843-03G01

$42.98

6

COVER, T/M LEVER LOWER

57844-03G00

$42.98

7

SCREW

09139-06083

$2.26

8

CUSHION, T/M LEVER

57842-03G00

$7.80

9

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

10

ROD, DETENT

57863-03G00

$9.34
