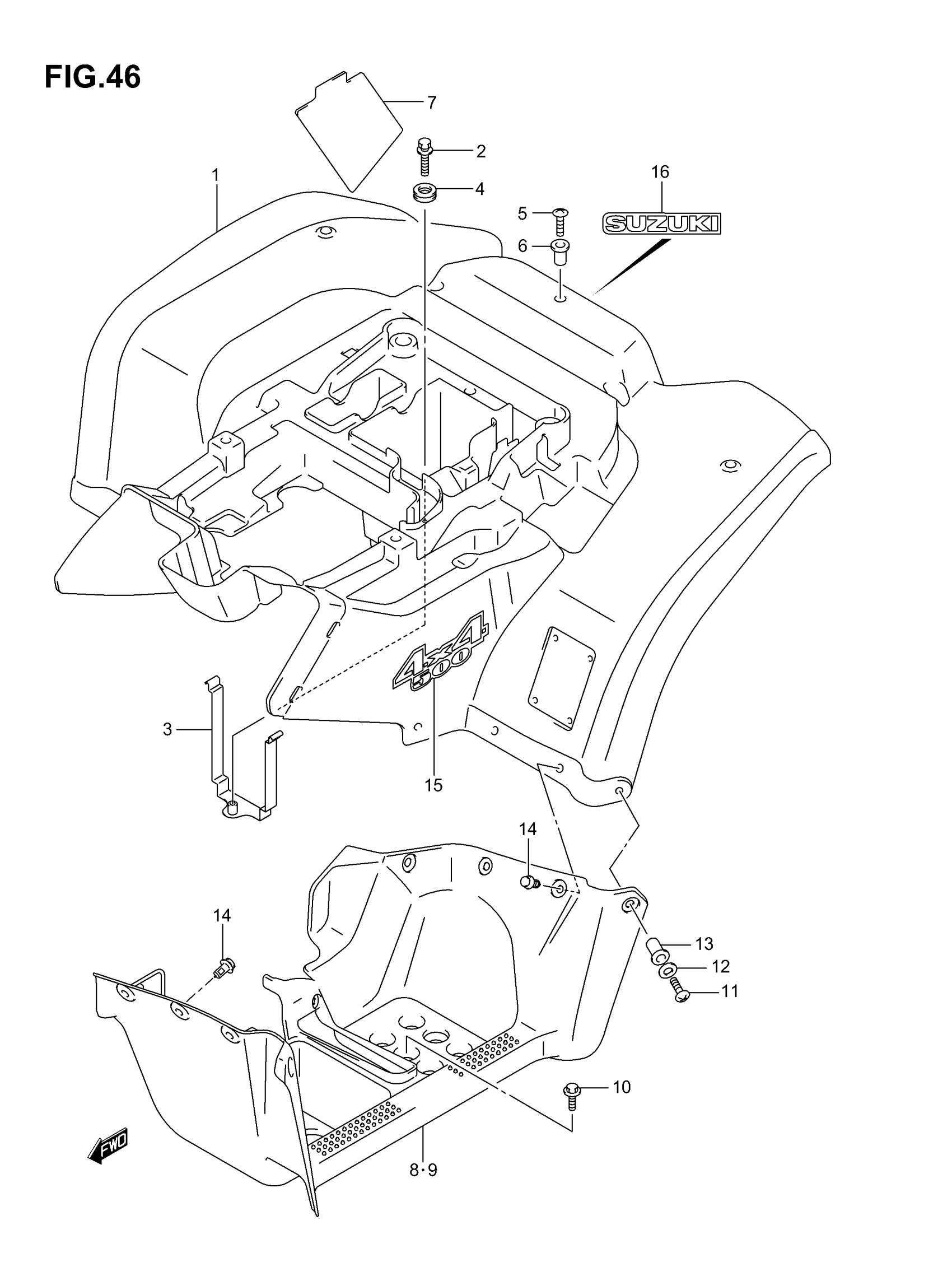

Suzuki LT-F500F (2007) REAR FENDER (MODEL K4) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) This part replaces 63111-03G20-YU1.

63111-03G21-YU1

$587.13

1

FENDER, REAR (GREEN) This part replaces 63111-03G20-YT8.

63111-03G21-YT8

$532.98

1

FENDER, REAR (RED) This part replaces 63111-03G20-YT9.

63111-03G21-YT9

$597.02

2

BOLT, CENTER

09112-06009

$3.93

3

BRACKET, REAR FENDER

63151-03G01

Unavailable

4

CUSHION

09320-11008

$2.60

5

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

6

NUT

09159-05019

$7.14

7

SHIELD, HEAT

63261-03GF0

Unavailable

8

MUDGUARD,FOOTRE This part replaces 63331-03GF0-291.

63331-03GF1-291

Unavailable

9

MGFR,LH MANAUAL This part replaces 63341-03GF0-291.

63341-03GF1-291

Unavailable

10

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

$2.03

11

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

12

WASHER

09160-05046

$1.92

13

NUT

09159-05019

$7.14

14

CLIP

09409-08335

$2.47

15

EMBLEM,REAR FEN This part replaces 68171-03G10-MV7.

68171-03G10-MV9

Unavailable

16

EMBLEM,SUZUKI This part replaces 68171-03G20-20H.

68171-03G21-20H

$15.17
