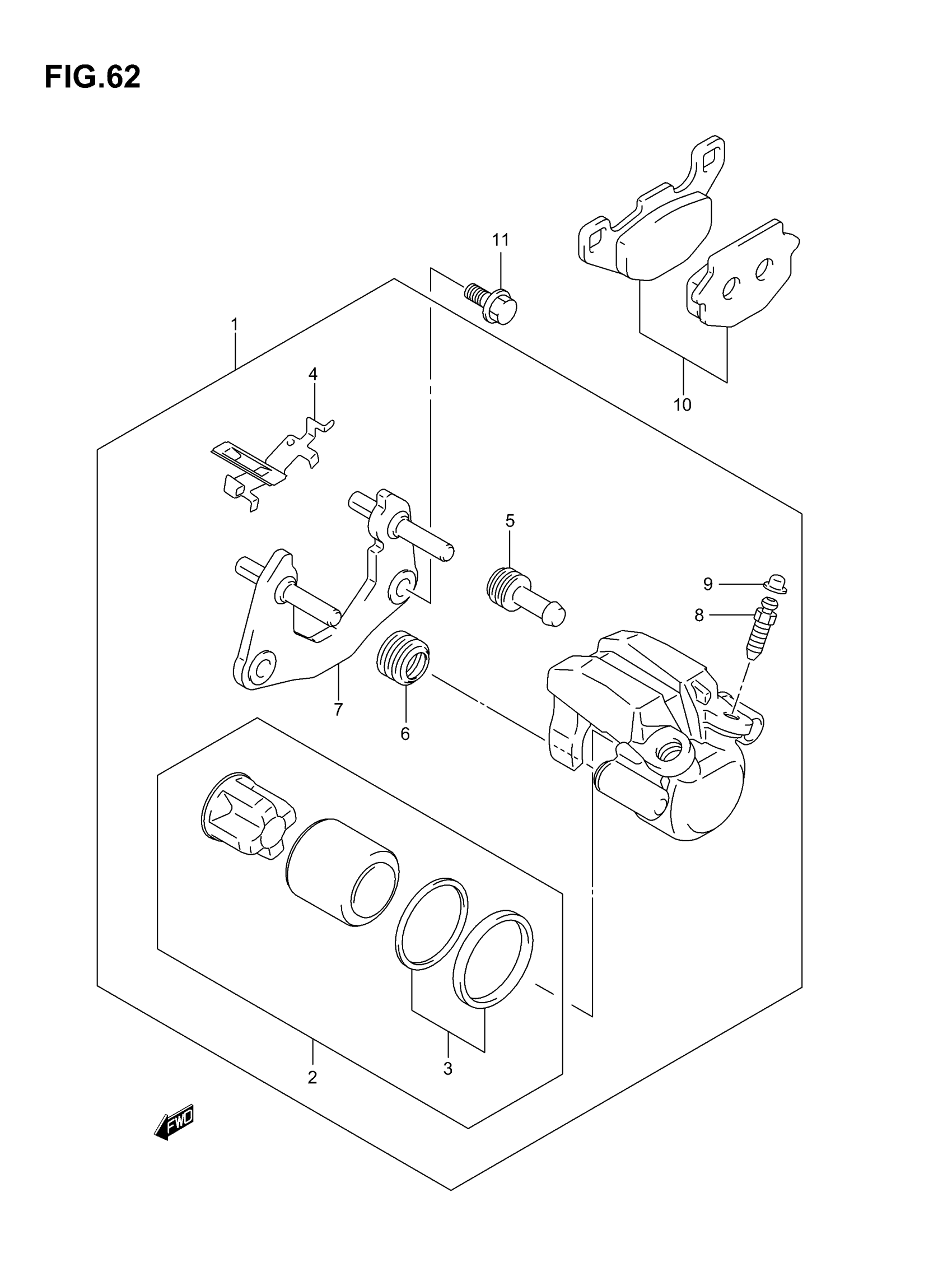

Suzuki LT-F500F (2007) REAR CALIPER (MODEL K4) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 9

69100-03GF0-999

$273.53

2

PISTON SET

59100-01850

$42.58

3

SEAL SET, PISTON

59100-35860

$11.71

4

SPRING, PAD

59315-36500

$9.38

5

.INSULATOR, AXLE

59313-36500

$5.99

6

.BOOT, AXLE

59312-36500

$5.07

7

BRACKET

69150-03GF0

$109.85

8

BLEEDER

59121-18410

$8.73

9

CAP, BLEEDER

55156-66310

$5.17

10

PAD SET

69100-03860

$55.27

11

BOLT

09103-08385

$3.58
