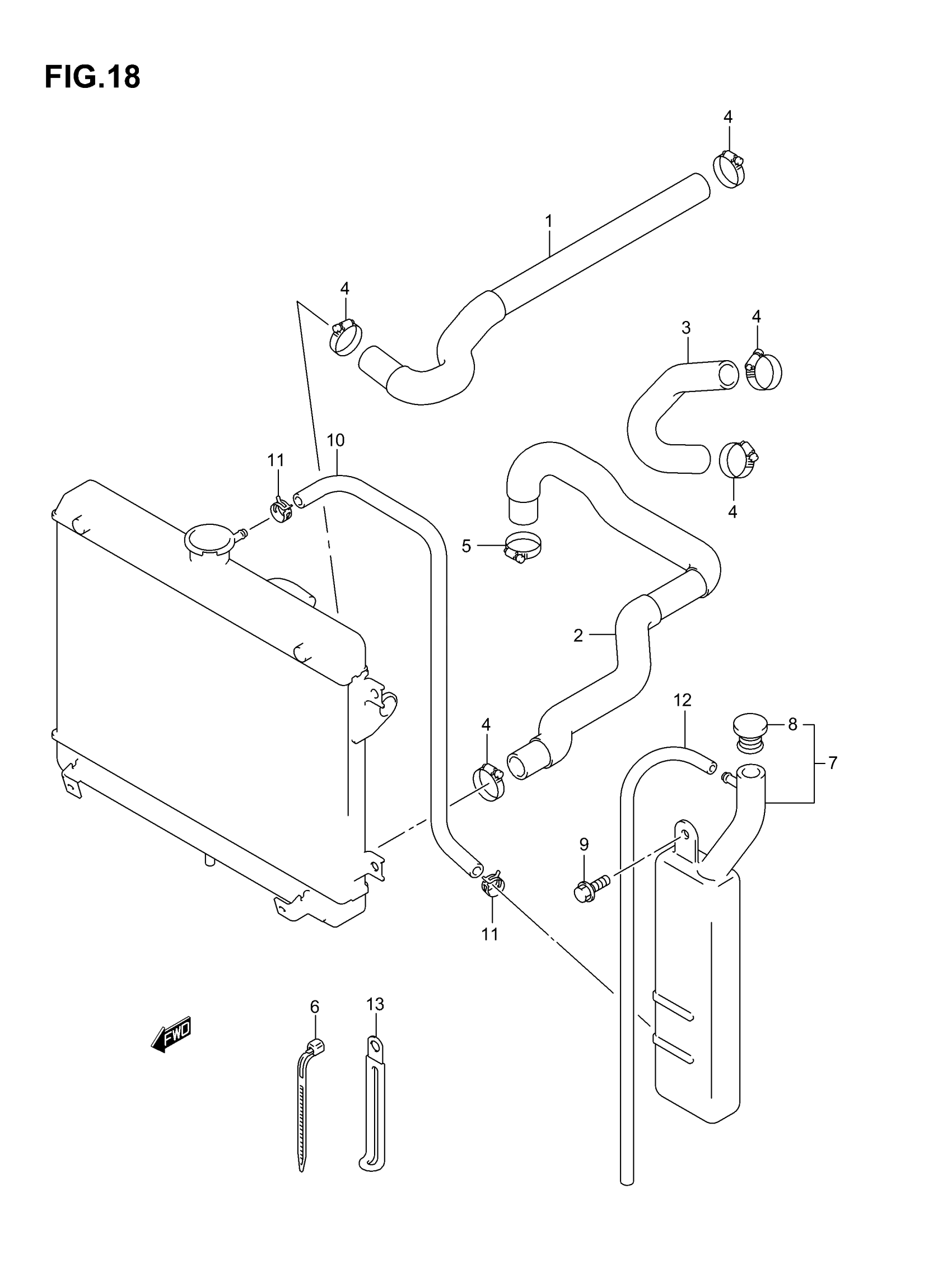

Suzuki LT-F500F (2007) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-03GF0

Unavailable

2

HOSE, RADIATOR OUTLET

17852-03GF0

Unavailable

3

HOSE, WATER PUMP OUTLET

17854-09F00

Unavailable

4

CLAMP

09402-32511

$10.86

5

CLAMP

09402-38511

$11.67

6

CLAMP, WATER HOSE (L:235)

09407-25401

$4.66

7

TANK ASSY, RESERVOIR | Includes Item(s) 8

17910-03G00

$70.18

8

CAP, RESERVOIR TANK

17932-12C00

$4.48

9

BOLT

09116-06168

$2.50

10

HOSE SET, RESERVOIR TANK INLE This part replaces 17981-42E00.

17900-27810

$22.00

11

CLIP

09401-08411

$1.78

12

HOSE, OVERFLOW | L:600!440

09352-50901-600

$8.06

13

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
