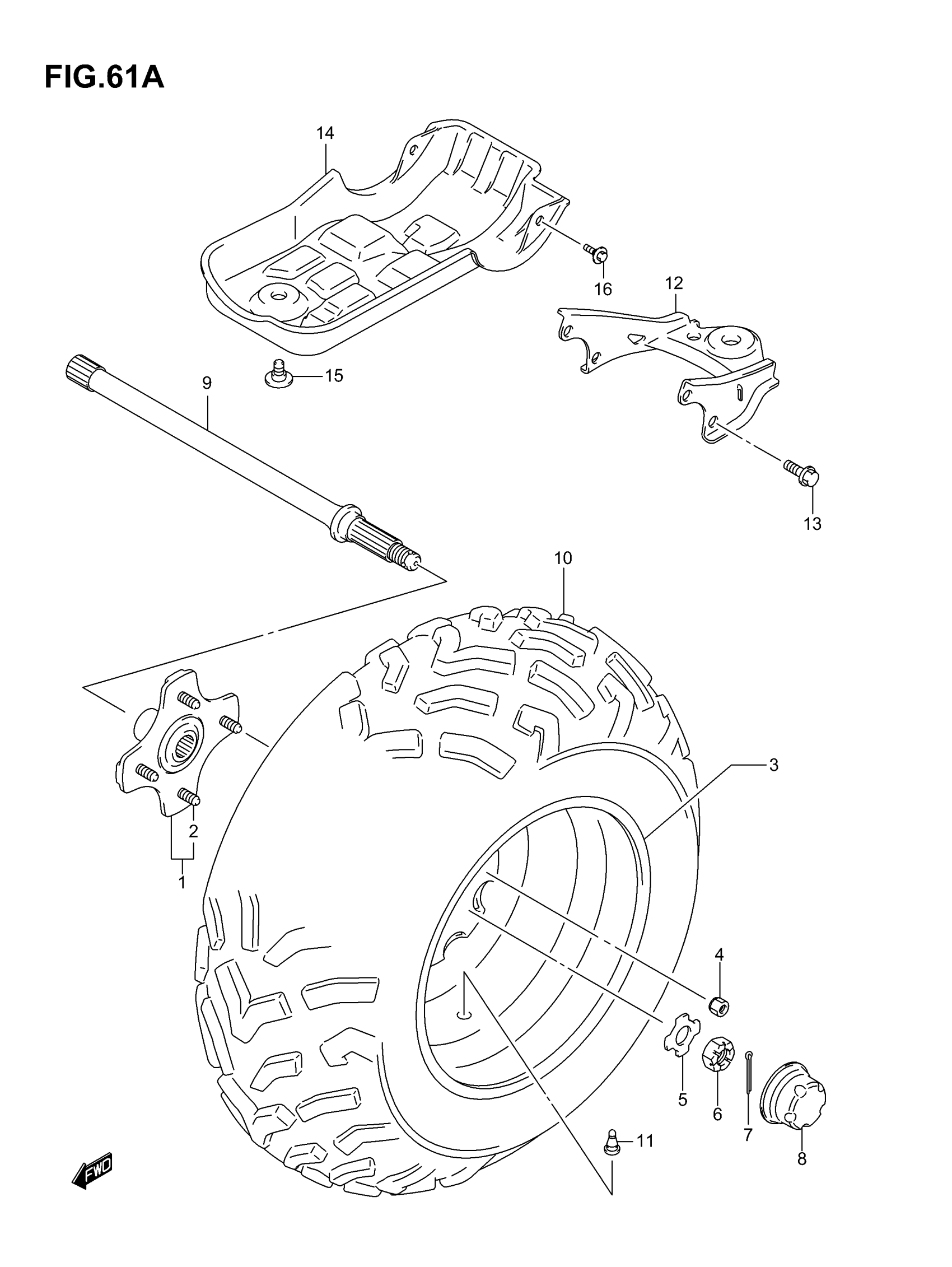

Suzuki LT-F500F (2007) LEFT REAR WHEEL (MODEL K6/K7) Diagram

#

Description
Price

1

HUB,REAR,L | Includes Item(s) 2 This part replaces 64110-38F22.

64110-38F30

$110.00

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (12X7.5AT) (SILVER)

65311-03G00-12Z

Unavailable

4

NUT

09140-10021

$2.03

5

WASHER

64723-03G00

$20.80

6

NUT This part replaces 09141-20006.

09141-20008

$18.05

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

AXLE,REAR,L

64712-38F20

$112.88

10

TIRE,REAR | MODEL K6 This part replaces 65110-38F30.

65110-38F50

Unavailable

10

TIRE,REAR | MODEL K7 This part replaces 65110-03G20.

65110-03G30

Unavailable

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

PLATE,TRAILER TOW | MODEL K6 This part replaces 95210-38F00.

95210-38F10

$43.63

12

PLATE,TRAILER TOW | MODEL K7

95210-38F10

$43.63

13

BOLT | MODEL K6

09103-10344

$3.99

13

BOLT (10X35) | MODEL K7 This part replaces 09103-10411.

09103-10422

$3.60

14

PROTECTOR,FINAL CASE This part replaces 61391-38F00.

61391-38F11

$66.10

15

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$7.13

16

BOLT, REAR

09111-06095

$2.12
