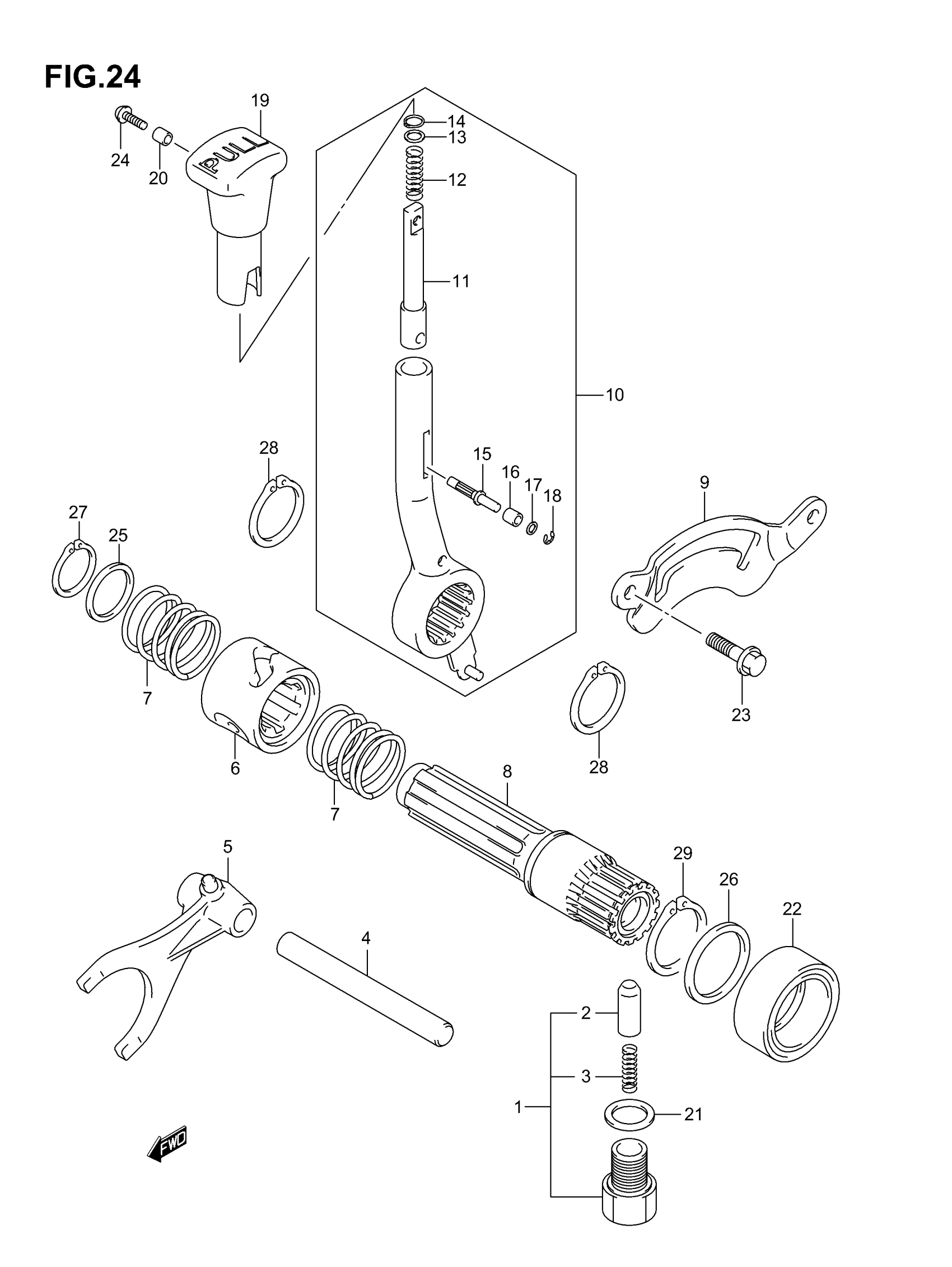

Suzuki LT-F500F (2007) GEAR SHIFTING (2) Diagram

#

Description
Price

1

STOPPER, SUB T/M SHIFT CAM | Includes Item(s) 2 - 3

25350-38F50

$27.85

2

STOPPER

25351-38F50

$12.58

3

SPRING

29613-38F50

$3.95

4

SHAFT, GR FORK

25411-14331

$23.07

5

FORK, GR SHIFT

29511-44D00

$90.23

6

CAM, GR SHIFT

29611-44D50

Unavailable

7

SPRING

29612-44D10

Unavailable

8

SHAFT, GR SHIFT

29621-44D60

Unavailable

9

PLATE, LEVER STOP

29711-44D00

Unavailable

10

LEVER ASSY, SHIFT | Includes Item(s) 11 - 18

29800-03G50

Unavailable

11

ROD, SUB T/M

29841-44D00

$26.73

12

SPRING

29822-44D10

$5.75

13

WASHER

08211-08121

$1.99

14

CIRCLIP

09381-12003

$1.78

15

PIN

29831-44D00

$6.70

16

ROLLER

29851-44D00

$3.62

17

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

18

E RING This part replaces 08332-11033.

08332-1103A

$2.15

19

KNOB

29911-44D00

$16.15

20

SPACER, SUB T/M GEAR | 4.1X6.5X7.2

09180-04012

$3.68

21

GASKET, CAM STOP | 13.8X18.8X0.4

09168-14002

$2.26

22

OIL SEAL, SHIFT STOP | 30X56X6

09283-30044

$12.67

23

BOLT, STOPPER PLT

01550-0616A

$1.97

24

SCREW This part replaces 02112-34163.

02112-3416B

$2.19

25

WASHER, CAM STOP | 25X32X1.0

09181-25139

$3.32

26

WASHER, SHAFT, LH | 30X38X1.0

09181-30139

$4.25

27

CIRCLIP, CAM SPRING

08331-31256

$1.49

28

CIRCLIP This part replaces 08331-31296.

08331-31299

$2.53

29

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.57
