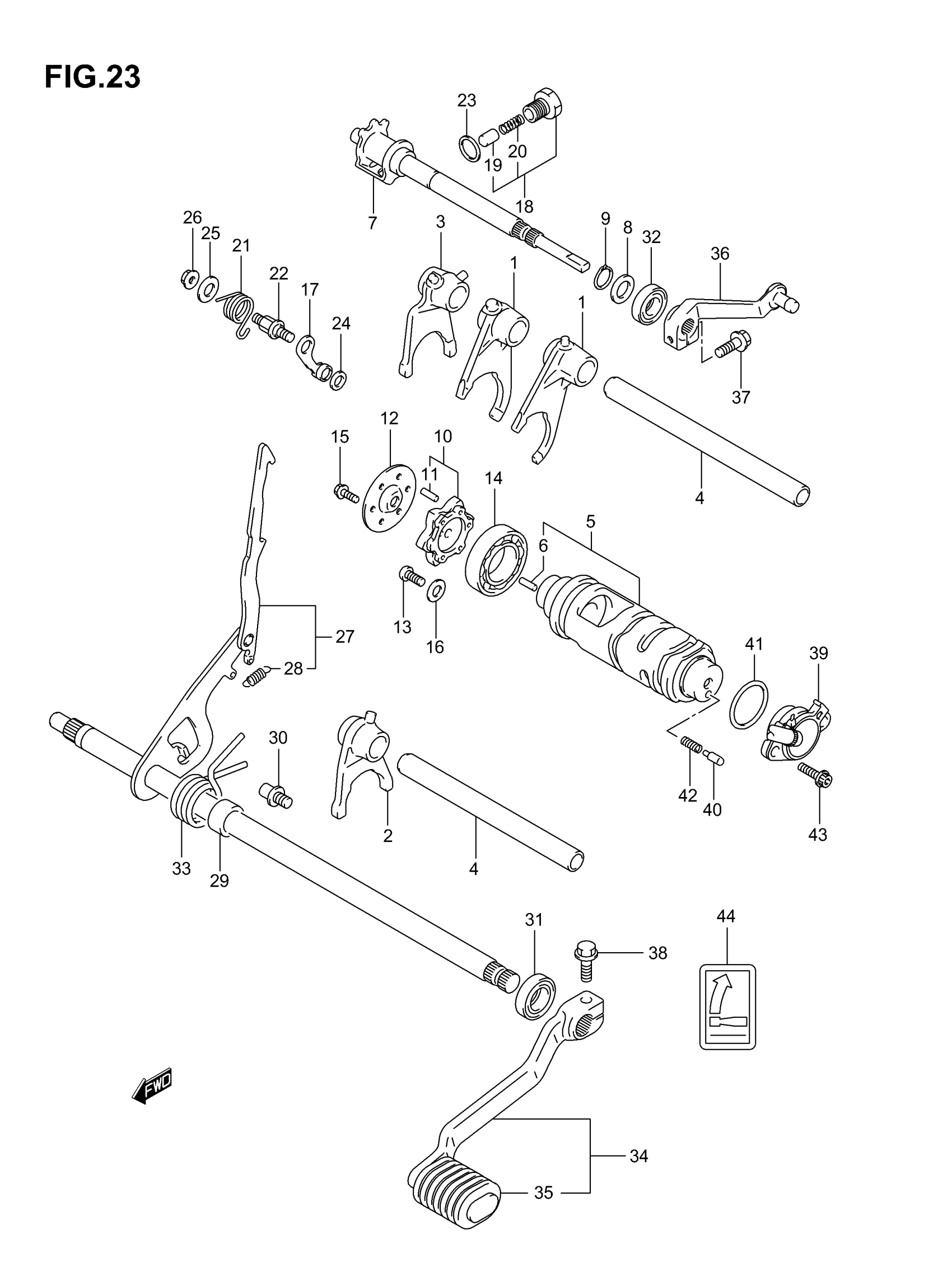

Suzuki LT-F500F (2007) GEAR SHIFTING (1) Diagram

#

Description
Price

1

FORK, GEAR SHIFT, NO.2

25221-03G50

$92.30

2

FORK, GEAR SHIFT, NO.3

25231-44D00

Unavailable

3

FORK, GEAR SHIFT, REVERSE

25241-44D00

Unavailable

4

SHAFT, GEAR SHIFT FORK

25411-38B01

$28.93

5

CAM, GEAR SHIFT | Includes Item(s) 6

25310-03G50

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

CAM, REVERSE SHIFT

25320-03G50

Unavailable

8

WASHER, REVERSE SHIFT

08211-12203

$2.53

9

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

10

PLATE,GEAR SHIFT CAM | Includes Item(s) 11

25380-44D00

$34.20

11

ROLLER (4X13.8)

09261-04002

$1.72

12

GUIDE, GEAR SHIFT CAM

25382-44D00

$7.20

13

SCREW, CAM BRG RETAINER (6X12)

09125-06110

$2.12

14

BEARING, GEAR SHIFT CAM | 25X47X8.0

09262-25006

$25.54

15

BOLT, GEAR SHIFT CAM

01500-0620A

$1.78

16

RETAINER, SHIFT CAM

08211-06165

Unavailable

17

STOPPER, GEAR SHIFT CAM

25350-26D01

$16.22

18

STOPPER, REVERSE | Includes Item(s) 19 - 20

25350-38F50

$27.85

19

STOPPER

25351-38F50

$12.58

20

SPRING

29613-38F50

$3.95

21

SPRING, GEAR SHIFT CAM

25355-03G50

Unavailable

22

SUPPORT, GEAR SHIFT CAM

25356-12C00

$17.37

23

GASKET, CAM STOPPER | 13.8X18.8X4.8

09168-14002

$2.26

24

WASHER, GEAR SHIFT CAM

08211-06141

$1.59

25

WASHER, CAM STOPPER

08211-06181

$1.80

26

NUT, CAM STOPPER

08316-1006A

$2.19

27

SHAFT, GEAR SHIFT | Includes Item(s) 28

25510-03G51

Unavailable

28

SPRING

09443-06074

$4.41

29

SPACER, GEAR SHIFT

25516-44D00

Unavailable

30

STOPPER, GEAR SHIFT

25671-36A00

$5.40

31

OIL SEAL GEAR SHIFT | 14X22X6

09283-14006

$6.70

32

OIL SEAL (12X22X9)

09285-12006

$6.32

33

SPRING

09444-26025

$5.33

34

LEVER ASSY, GEAR SHIFT | Includes Item(s) 35

25600-03G50

Unavailable

35

RUBBER

25652-24401

$5.05

36

ARM, REVERSE GEAR SHIFT

25640-03G50

Unavailable

37

BOLT, REVERSE GEAR

01550-0620A

$1.97

38

BOLT, GEAR SHIFT LEVER

01550-0620A

$1.97

39

BASE ASSY, GEAR SHIFT TERM

37720-03G10

$116.65

40

CONTACT

09209-05011

$2.20

41

O RING (DD:2.4,ID:25.7)

09280-26007

$6.52

42

SPRING

09440-04010

$1.54

43

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.53

44

LABEL, GEAR SHIFT PATTERN

68392-24210

$2.92

44

LABEL, GEAR SHIFT PATTERN | E28

68392-24220

$3.25
