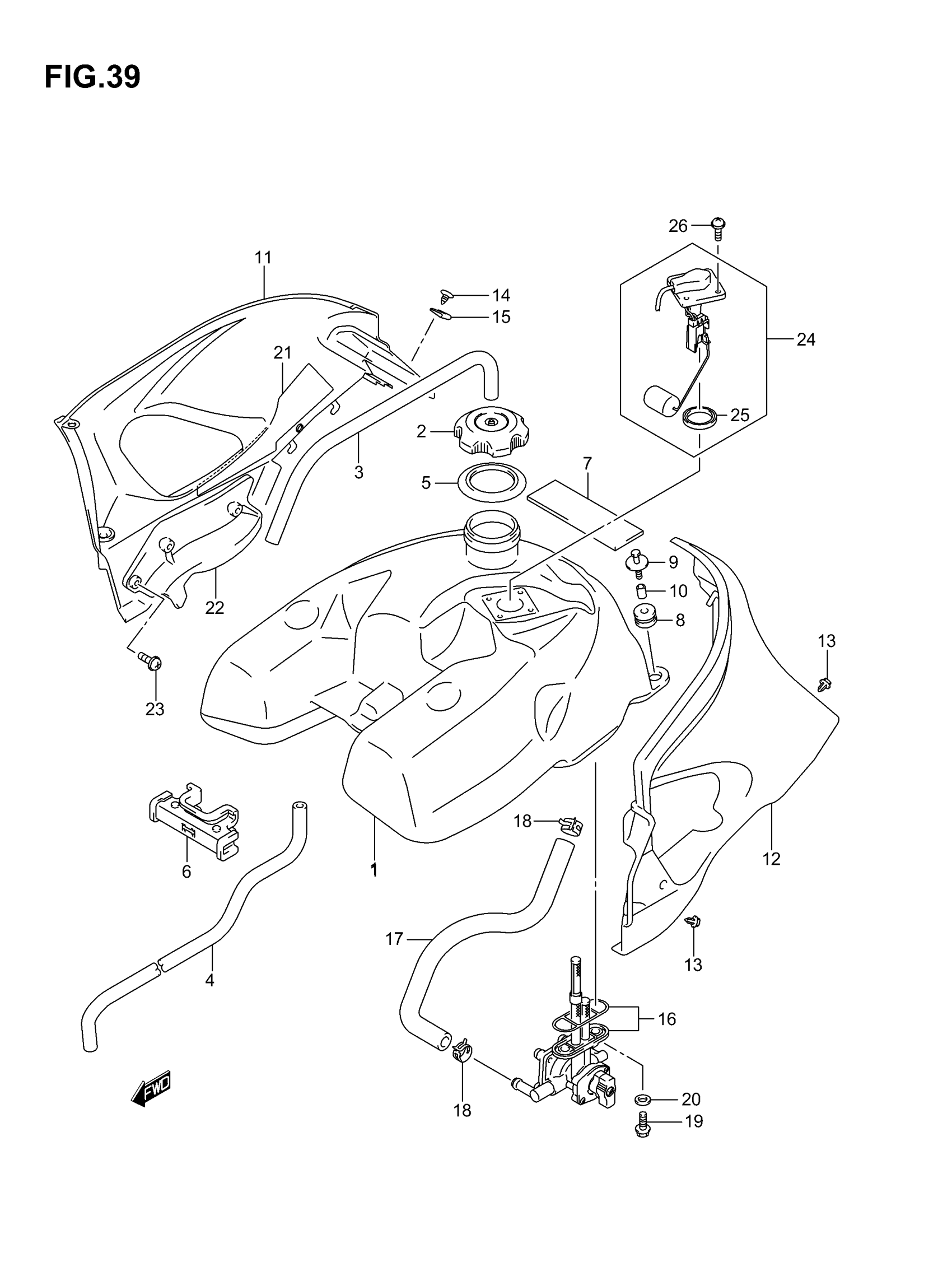

Suzuki LT-F500F (2007) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-03G10

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

RUBBER, INLET

44261-38F00

$13.35

6

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

7

CUSHION

47451-38A01

$4.43

8

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

9

BOLT | MODEL K4/K5

09116-06190

$2.34

9

BOLT | MODEL K6/K7

09116-06050

$2.26

10

SPACER

09180-06293

$2.58

11

COVER, TANK RH (BLACK)

44271-03G03-291

Unavailable

12

COVER, TANK LH (BLACK)

44272-03GF0-291

Unavailable

13

CLIP | MODEL K4/K5/K6

09409-07333

$2.31

13

CLIP | MODEL K7

09409-08335

$2.47

14

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

15

NUT

09148-05038

$1.97

16

COCK ASSY,FUEL | MODEL K4/K5 This part replaces 44300-03G02.

44300-03G03

$92.88

16

COCK ASSY, FUEL | MODEL K6/K7 This part replaces 44300-03G10.

44300-03G1V

$221.22

17

HOSE, FUEL

44421-03GF1

$24.42

18

CLIP This part replaces 09401-11407.

09401-11415

$2.23

19

BOLT

09103-06277

$2.28

20

GASKET

09168-06026

$3.10

21

SHIELD, TANK COVER

44274-03GF0

Unavailable

22

RUBBER, TANK COVER SIDE

53442-03GF0

Unavailable

23

SCREW, SHIELD

09136-05062

$2.19

24

GAUGE ASSY, FUEL LEVER | Includes Item(s) 25

34810-03G00

$66.46

25

.PACKING,FUEL LEVEL GAUGE This part replaces 34825-03A00.

34825-03A01

$8.07

26

SCREW This part replaces 02112-76163.

02112-7616A

$2.12
