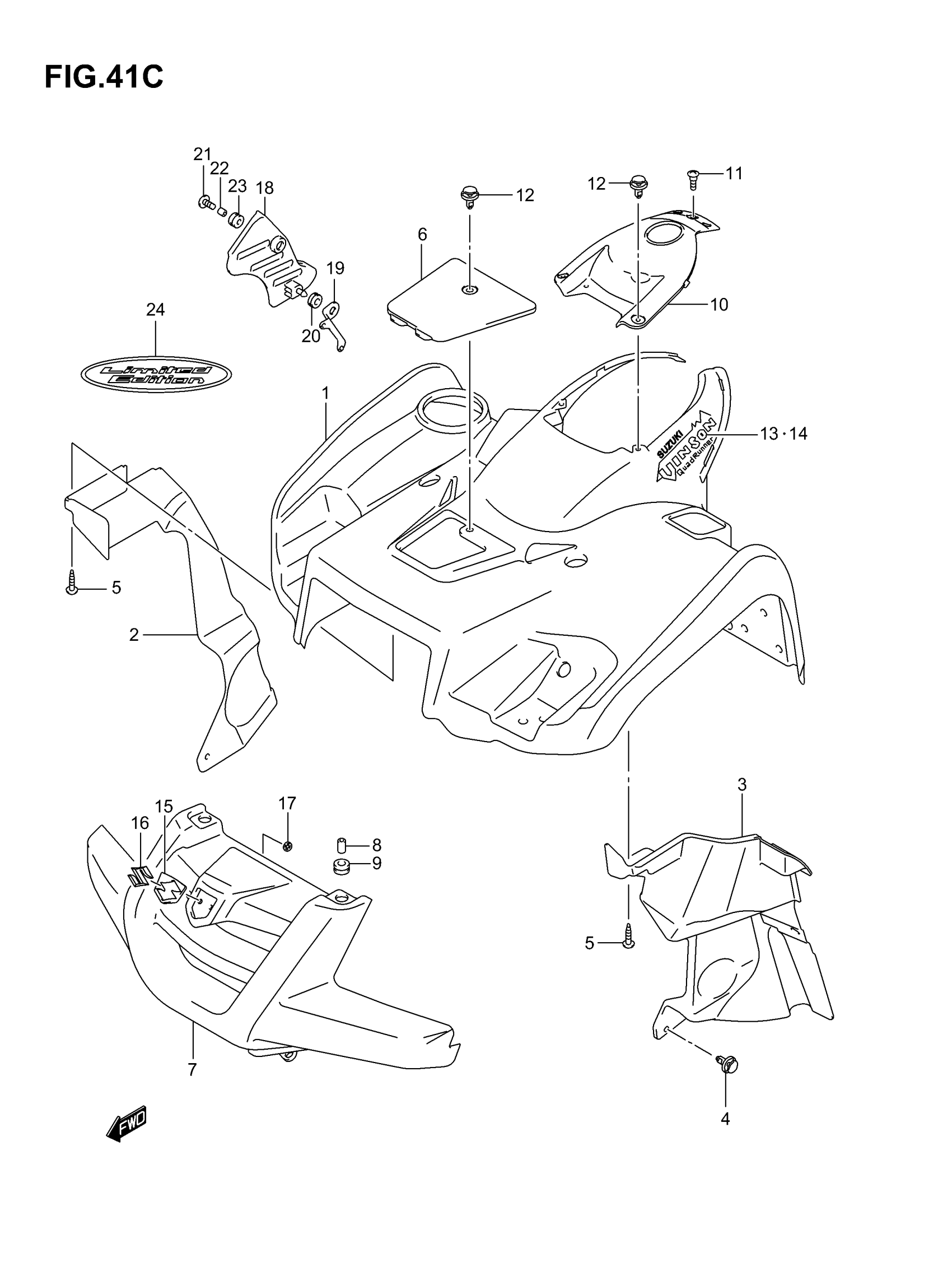

Suzuki LT-F500F (2007) FRONT FENDER (MODEL K7) Diagram

#

Description
Price

1

FENDER, FRONT This part replaces 53111-03G20-YT9.

53111-03G21-YT9

Unavailable

1

FENDER,FRONT This part replaces 53111-03G20-YLG.

53111-03G21-YLG

$350.43

1

FENDER,FRONT This part replaces 53111-03GC0-YKL.

53111-03GC2-YKL

Unavailable

1

FENDER, FRONT | FOR YKL,4YX This part replaces 53111-03G20-YLZ.

53111-03G21-YLZ

$366.63

1

FENDER,FRONT | E28 This part replaces 53111-03G20-YU1.

53111-03G21-YU1

Unavailable

2

MUDFLAP, INNER RH

53410-03G02

Unavailable

3

MUDFLAP, INNER LH

53421-03G00

$40.88

4

CLIP

09409-08335

$2.47

5

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

6

LID (RED)

53341-03G01-YT9

Unavailable

6

LID (GREEN)

53341-03G01-YLG

Unavailable

6

LID (CAMOUFLAGE)

53341-03GC0-YKL

Unavailable

6

LID (BLACK) | FOR YKL,4YX

53341-03G01-YLZ

Unavailable

6

LID (YELLOW) | E28

53341-03G01-YU1

Unavailable

7

GRILLE, FRONT (BLACK)

53118-03G00-291

Unavailable

8

SPACER

09180-08188

$2.56

9

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

10

FENDER, CENTER (RED)

53119-03G10-YT9

Unavailable

10

FENDER, CENTER (GREEN)

53119-03G10-YLG

$29.43

10

FENDER, CENTER (CAMOUFLAGE)

53119-03GC0-YKL

Unavailable

10

FENDER, CENTER (BLACK) | FOR YKL,4YX

53119-03G10-YLZ

Unavailable

10

FENDER, CENTER (YELLOW) | E28

53119-03G10-YU1

Unavailable

11

SCREW

09139-05076

Unavailable

12

CLIP

09409-07333

$2.31

13

EMBLEM, RH

68151-03G50-DJF

Unavailable

13

EMBLEM, RH | FOR YKL

68151-03GA0-DJF

Unavailable

14

EMBLEM, LH

68152-03G50-DJF

Unavailable

14

EMBLEM, LH | FOR YKL

68152-03GA0-DJF

Unavailable

15

EMBLEM, FRONT BASE

68151-03G30

$17.69

16

EMBLEM, "S"

68151-03G40

$17.03

17

NUT This part replaces 09148-05006.

09148-05012

$1.75

18

GUARD, MUFFLER SIDE

53441-03GF0

Unavailable

19

BRACKET

53451-03GF0

Unavailable

20

CUSHION, UPPER

09320-09016

$1.97

21

SCREW

09136-06081

$2.26

22

SPACER

09180-06263

$2.03

23

CUSHION

09320-08018

$3.04

24

EMBLEM, "LIMITED" | E28 FOR 4YX

68151-03G20-CN5

Unavailable
