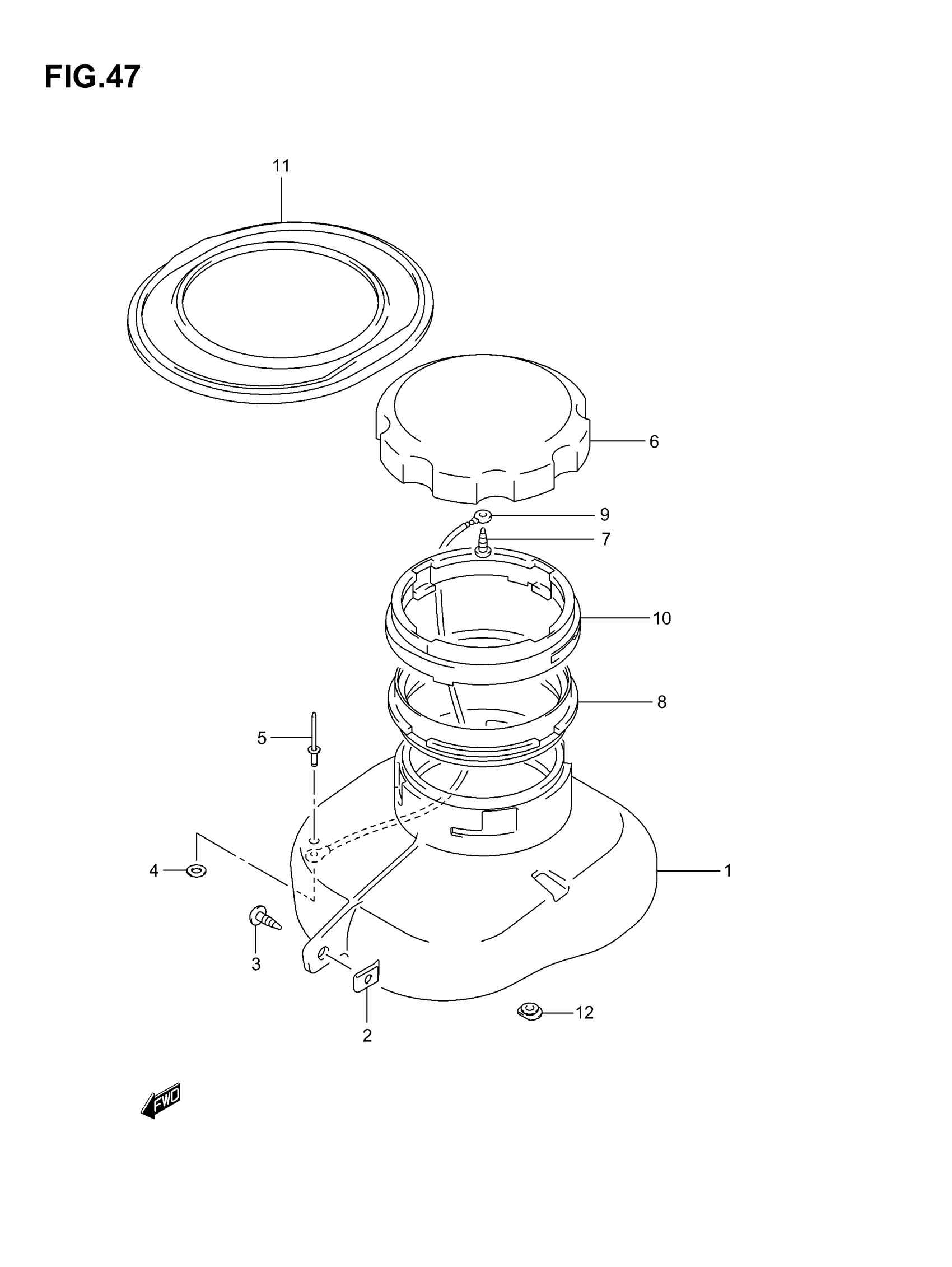

Suzuki LT-F500F (2007) FRONT BOX Diagram

#

Description
Price

1

BODY, FRONT BOX

92111-03G00

Unavailable

2

NUT

09148-05038

$1.97

3

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

4

WASHER

08322-01047

$1.86

5

RIVET

09229-04038

$1.49

6

LID, FRONT BOX

92112-03G00

$18.59

7

SCREW This part replaces 03512-05123.

03511-0512A

$1.80

8

HOLDER,FRONT BOX This part replaces 92113-03G00.

92113-03G01

$55.23

9

STOPPER, FRONT BOX

92114-03G00

$29.84

10

CUSHION, FRONT BOX

92141-03G00

Unavailable

11

CUSHION, NO.1

92142-03G00

Unavailable

12

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.49
