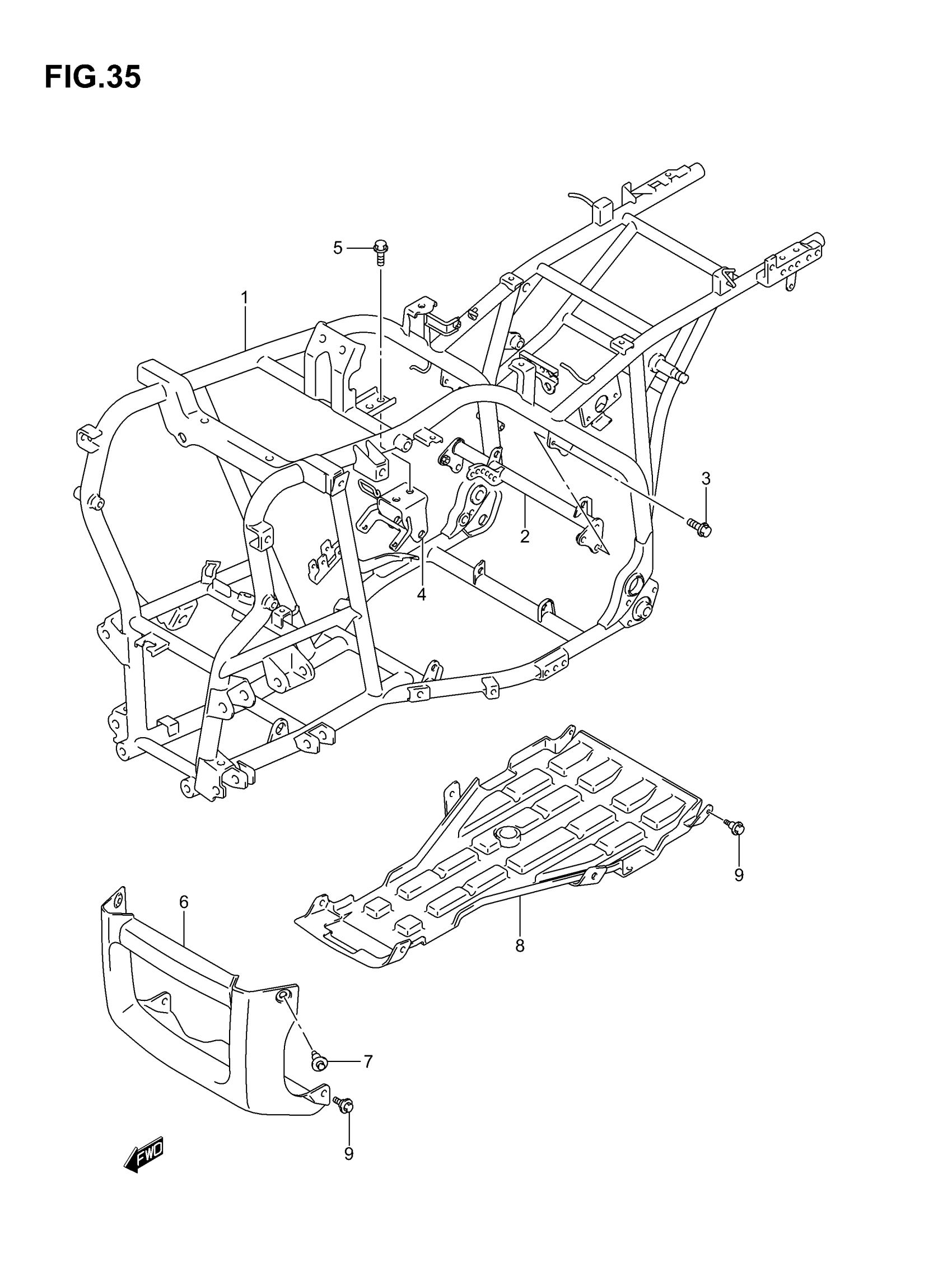

Suzuki LT-F500F (2007) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K4/K5 This part replaces 41100-03GG0-019.

41100-03GH1-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K6/K7 This part replaces 41100-03GH0-019.

41100-03GH1-019

Unavailable

2

PLATE, ENGINE MOUNT REAR RH

41980-03GG0

Unavailable

3

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

4

BRACKET, ENGINE MOUNT UPPER

41990-03GF0

$19.63

5

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

6

PROTECTOR, FRONT (BLACK)

42521-03G00-291

Unavailable

7

CLIP

09409-08335

$2.47

8

PROTECTOR, ENGINE

42511-03GF0

Unavailable

9

BOLT (6X12) | MODEL K4/K5 This part replaces 09111-06063.

09111-06085

$4.54

9

SCREW, PROTECTOR | MODEL K6/K7

09111-06085

$4.54
