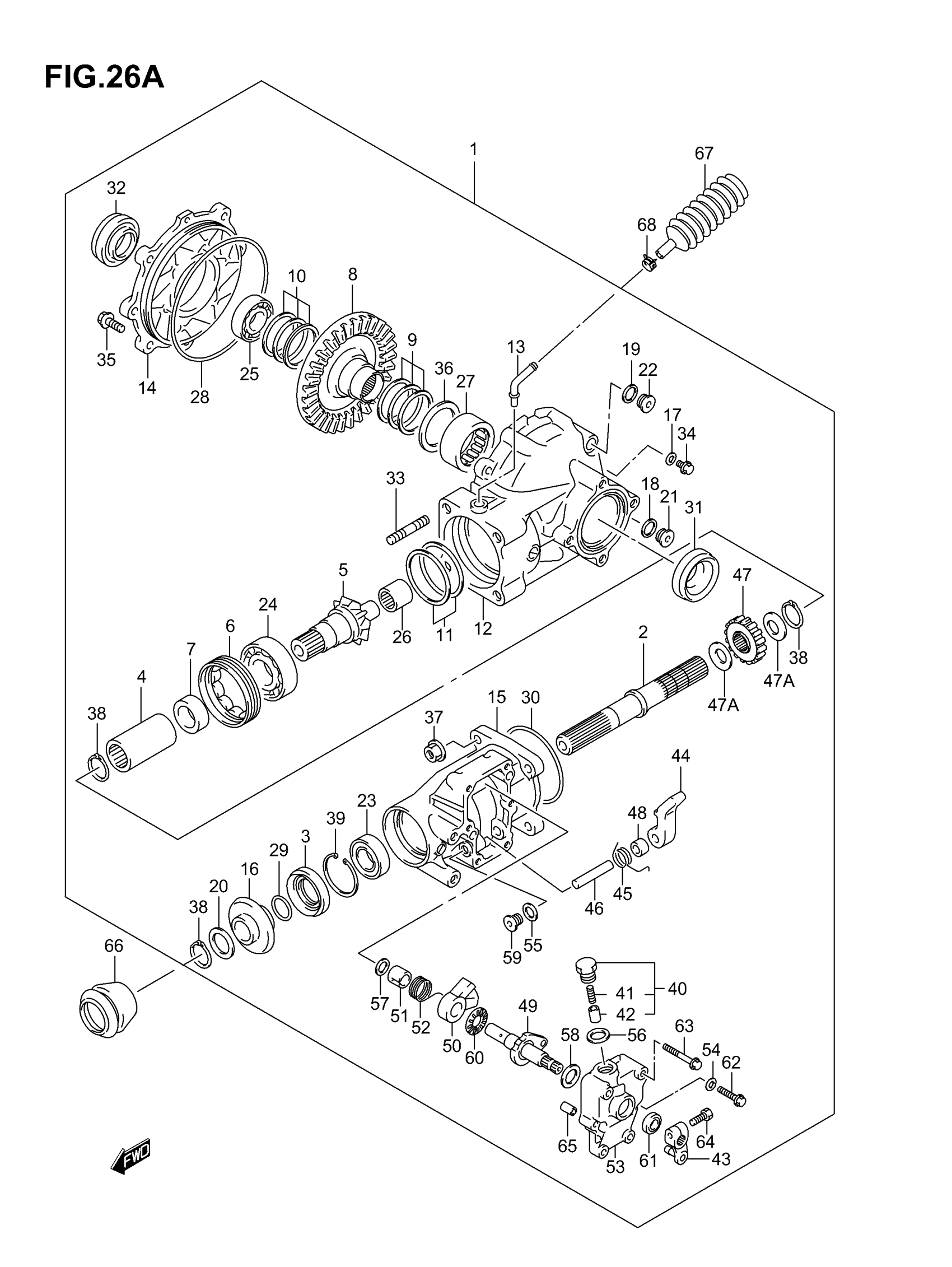

Suzuki LT-F500F (2007) FINAL BEVEL GEAR (REAR)(MODEL K5/K6/K7) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 2 - 65

27410-03G20

Unavailable

2

SHAFT, REAR FINAL DRIVE

27155-38FP0

$199.22

3

SEAL, FINAL DRIVE BEARING

27156-38FM0

$17.43

4

JOINT, REAR FINAL DRIVE

27157-38F00

$26.10

5

GEAR, FINAL DRIVE BEVEL | NT:10

27311-38FM0

Unavailable

6

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

7

SPACER, REAR FINAL DRIVE

27316-38FM0

$27.40

8

GEAR, FINAL DRIVEN BEVEL | NT:36

27321-38FM0

$287.68

9

SHIM SET, FINAL DRIVEN LH | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$15.27

10

SHIM SET, FINAL DRIVEN RH | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$15.00

11

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

12

CASE, REAR FINAL GEAR

27450-38FM0

Unavailable

13

UNION, BREATHER

09364-08009

$9.50

14

CASE, REAR FINAL DRIVEN RH

27461-38FM0

Unavailable

15

HOUSING, REAR FINAL DRIVE

27471-38FP0

Unavailable

16

COLLAR, OUTPUT OIL SEAL

27590-38F00

$62.32

17

GASKET, OIL CHECK BOLT | 6.2X13X1.2

09168-06018

$1.77

18

GASKET, OIL DRAIN | 16X22X2.0

09168-16002

$1.91

19

GASKET, OIL FILLER | 16X22X2.0

09168-16002

$1.91

20

WASHER, REAR FINAL DRIVE

27407-38FM0

$5.30

21

PLUG, OIL DRAIN

09248-16012

$4.64

22

PLUG, OIL FILLER

09248-16012

$4.64

23

BEARING, REAR FINAL

27405-38FM0

$63.30

24

BEARING, FINAL DRIVE GEAR

27405-38FN0

$86.82

25

BEARING, FINAL DRIVEN RH

27405-38FP0

$113.25

26

BEARING, FINAL DRIVE PILOT

27405-38FR0

$62.48

27

BEARING, FINAL DRIVEN LH

27405-38FS0

$72.73

28

O RING, BEARING CASE RH

27405-38FT0

$16.65

29

O RING, COLLAR OUTPUT | DD:2.4,ID:23.7

09280-24010

$5.64

30

O RING, REAR FINAL HOUSING | DD:3.1,ID:74.0

09280-76008

$8.75

31

OIL SEAL, FINAL DRIVEN LH | 38X54X6.0

09283-38009

$17.33

32

OIL SEAL, FINAL DRIVEN RH | 42X62X7.0

09283-42011

$12.61

33

STUD BOLT (L:30) This part replaces 01421-10303.

01421-1030A

$2.57

34

BOLT, OIL CHECK

27401-38FM0

$3.70

35

BOLT, REAR FINAL GEAR

27401-38FN0

Unavailable

36

WASHER, FINAL DRIVEN LH

27407-38FN0

$9.67

37

NUT, REAR FINAL DRIVE

27408-38FM0

Unavailable

38

CIRCLIP

08331-31256

$1.49

39

CIRCLIP, REAR FINAL BEARING

27403-38FM0

$5.98

40

STOPPER, PARKING CAM

25350-09F50

$22.87

41

SPRING

29613-44D00

$3.62

42

STOPPER

25351-44D50

$12.65

43

ARM SELECT

25360-38F00

$56.93

44

PAWL, PARKING LOCK

25932-38F10

$67.63

45

SPRING, PARKING

25933-38FM0

$5.58

46

SHAFT, PARKING PAWL

25934-38F10

$9.07

47

GEAR, PARKING LOCK (NT:24)

25935-38FM0

$68.60

47A

WASHER (25X32X1.0)

09181-25139

$3.32

48

SPACER, PARKING PAWL

25936-38FM0

$6.47

49

SHAFT, PARKING LOCK CAM

25940-38F00

Unavailable

50

CAM, PARKING LOCK SHAFT

25942-38F00

$113.51

51

GUIDE, PARKING PAWL

25944-38F00

Unavailable

52

SPRING, PARKING CAM

25984-38FM0

$9.42

53

COVER, REAR FINAL DOOR

27475-38FM0

$209.20

54

GASKET, REAR FINAL COVER

09168-06024

$2.20

55

GASKET, PARKING PAWL

09168-10007

$1.71

56

GASKET, CAM SHAFT STOPPER

09168-14002

$2.26

57

WASHER, PARKING RH

27407-38FP0

Unavailable

58

WASHER, PARKING LH

27407-38FR0

Unavailable

59

PLUG, PARKING PAWL

09248-10007

$6.50

60

BEARING, PARKING CAM

27405-38FU0

Unavailable

61

SEAL, PARKING | 14X22X6

09283-14006

$6.70

62

BOLT, REAR FINAL HOUSING

27401-38FP0

Unavailable

63

BOLT, REAR FINAL HOUSING

27401-38FR0

Unavailable

64

BOLT, SELECT ARM

27401-38FS0

Unavailable

65

PIN, REAR FINAL COVER

27404-38FM0

Unavailable

66

BOOT, RR FINAL DRIVE

27153-03G10

$15.83

67

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

68

CLAMP

09401-08411

$1.78
