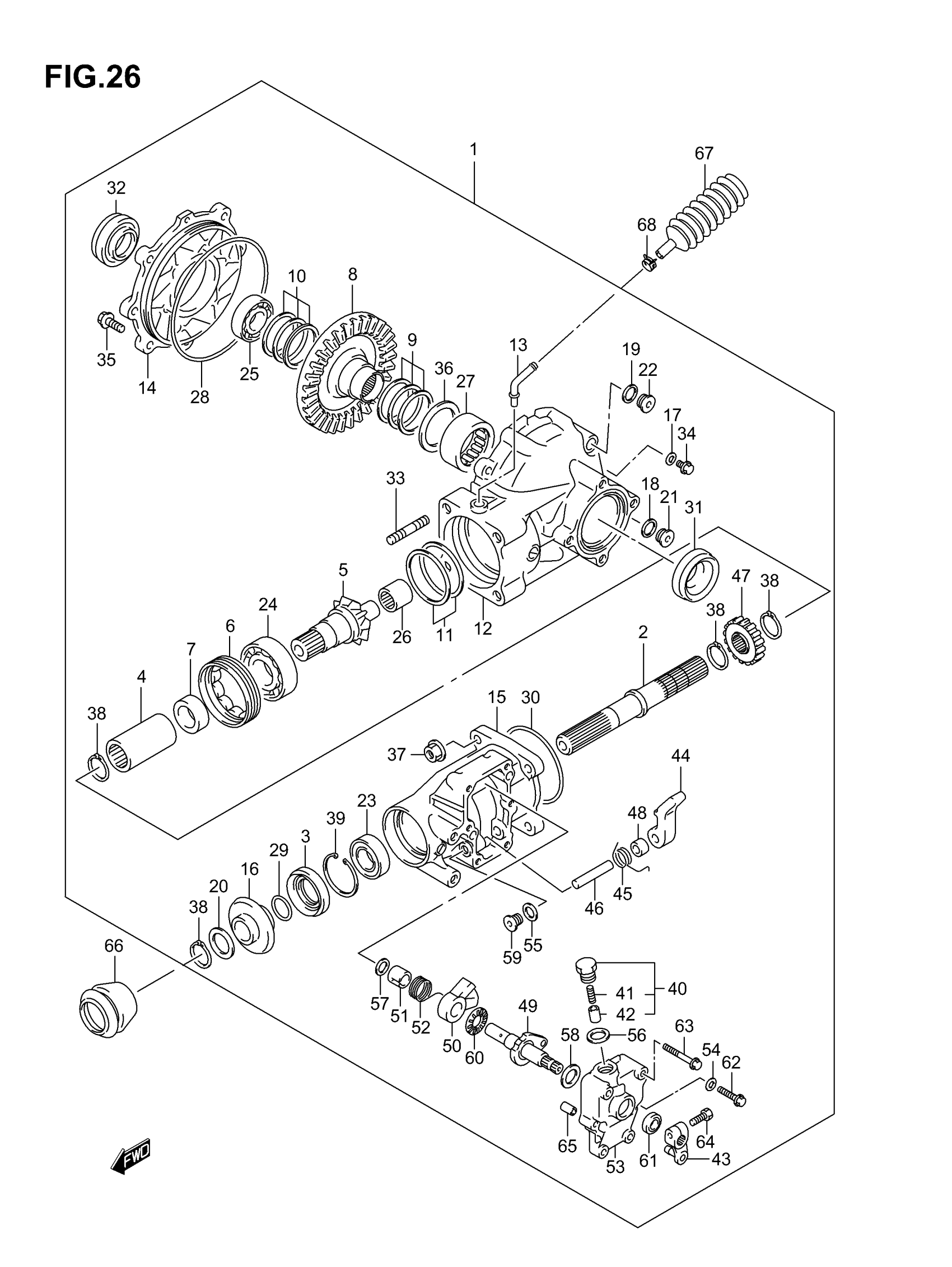

Suzuki LT-F500F (2007) FINAL BEVEL GEAR (REAR)(MODEL K4) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 2 - 65 This part replaces 27410-03G10.

27410-03G20

Unavailable

2

SHAFT, REAR FINAL DRIVE

27155-38FM0

$221.70

3

SEAL, FINAL DRIVE BEARING

27156-38FM0

$19.68

4

JOINT, REAR FINAL DRIVE

27157-38F00

$19.06

5

GEAR, FINAL DRIVE BEVEL | NT:10

27311-38FM0

Unavailable

6

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$59.52

7

SPACER, REAR FINAL DRIVE

27316-38FM0

$30.92

8

GEAR, FINAL DRIVEN BEVEL | NT:36

27321-38FM0

$320.13

9

SHIM SET, FINAL DRIVEN LH | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$17.23

10

SHIM SET, FINAL DRIVEN RH | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$16.92

11

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$31.82

12

CASE, REAR FINAL GEAR

27450-38FM0

Unavailable

13

UNION, BREATHER

09364-08009

$10.33

14

CASE, REAR FINAL DRIVEN RH

27461-38FM0

Unavailable

15

HOUSING, REAR FINAL DRIVE

27471-38FP0

Unavailable

16

COLLAR, OUTPUT OIL SEAL

27590-38F00

$70.33

17

GASKET, OIL CHECK BOLT | 6.2X13X1.2

09168-06018

$1.70

18

GASKET, OIL DRAIN | 16X22X2.0

09168-16002

$1.89

19

GASKET, OIL FILLER | 16X22X2.0

09168-16002

$1.89

20

WASHER, REAR FINAL DRIVE

27407-38FM0

$3.87

21

PLUG, OIL DRAIN

09248-16012

$4.19

22

PLUG, OIL FILLER

09248-16012

$4.19

23

BEARING, REAR FINAL

27405-38FM0

$71.43

24

BEARING, FINAL DRIVE GEAR

27405-38FN0

$98.00

25

BEARING, FINAL DRIVEN RH

27405-38FP0

$127.21

26

BEARING, FINAL DRIVE PILOT

27405-38FR0

$70.52

27

BEARING, FINAL DRIVEN LH

27405-38FS0

$82.08

28

O RING, BEARING CASE RH

27405-38FT0

$18.80

29

O RING, COLLAR OUTPUT | DD:2.4,ID:23.7

09280-24010

$5.09

30

O RING, REAR FINAL HOUSING | DD:3.1,ID:74.0

09280-76008

$9.52

31

OIL SEAL, FINAL DRIVEN LH | 38X54X6.0

09283-38009

$13.30

32

OIL SEAL, FINAL DRIVEN RH | 42X62X7.0

09283-42011

$11.53

33

STUD BOLT (L:30) This part replaces 01421-10303.

01421-1030A

$2.59

34

BOLT, OIL CHECK

27401-38FM0

$4.90

35

BOLT, REAR FINAL GEAR

27401-38FN0

Unavailable

36

WASHER, FINAL DRIVEN LH

27407-38FN0

$7.06

37

NUT, REAR FINAL DRIVE

27408-38FM0

Unavailable

38

CIRCLIP

08331-31256

$1.09

39

CIRCLIP, REAR FINAL BEARING

27403-38FM0

$6.75

40

STOPPER, PARKING CAM

25350-09F50

$25.82

41

SPRING

29613-44D00

$4.08

42

STOPPER

25351-44D50

$14.27

43

ARM SELECT

25360-38F00

$64.25

44

PAWL, PARKING LOCK

25932-38F20

$49.27

45

SPRING, PARKING

25933-38FM0

$6.30

46

SHAFT, PARKING PAWL

25934-38F10

$10.25

47

GEAR, PARKING LOCK (NT:24)

25935-38F10

Unavailable

48

SPACER, PARKING PAWL

25936-38FM0

$7.30

49

SHAFT, PARKING LOCK CAM

25940-38F00

Unavailable

50

CAM, PARKING LOCK SHAFT

25942-38F00

$126.32

51

GUIDE, PARKING PAWL

25944-38F00

Unavailable

52

SPRING, PARKING CAM

25984-38FM0

$6.88

53

COVER, REAR FINAL DOOR

27475-38FM0

$232.80

54

GASKET, REAR FINAL COVER

09168-06024

$2.19

55

GASKET, PARKING PAWL

09168-10007

$1.71

56

GASKET, CAM SHAFT STOPPER

09168-14002

$2.83

57

WASHER, PARKING RH

27407-38FP0

Unavailable

58

WASHER, PARKING LH

27407-38FR0

Unavailable

59

PLUG, PARKING PAWL

09248-10007

$7.07

60

BEARING, PARKING CAM

27405-38FU0

Unavailable

61

SEAL, PARKING | 14X22X6

09283-14006

$6.04

62

BOLT, REAR FINAL HOUSING

27401-38FP0

Unavailable

63

BOLT, REAR FINAL HOUSING

27401-38FR0

Unavailable

64

BOLT, SELECT ARM

27401-38FS0

Unavailable

65

PIN, REAR FINAL COVER

27404-38FM0

Unavailable

66

BOOT, RR FINAL DRIVE

27153-03G10

$17.88

67

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

68

CLAMP

09401-08411

$1.77
