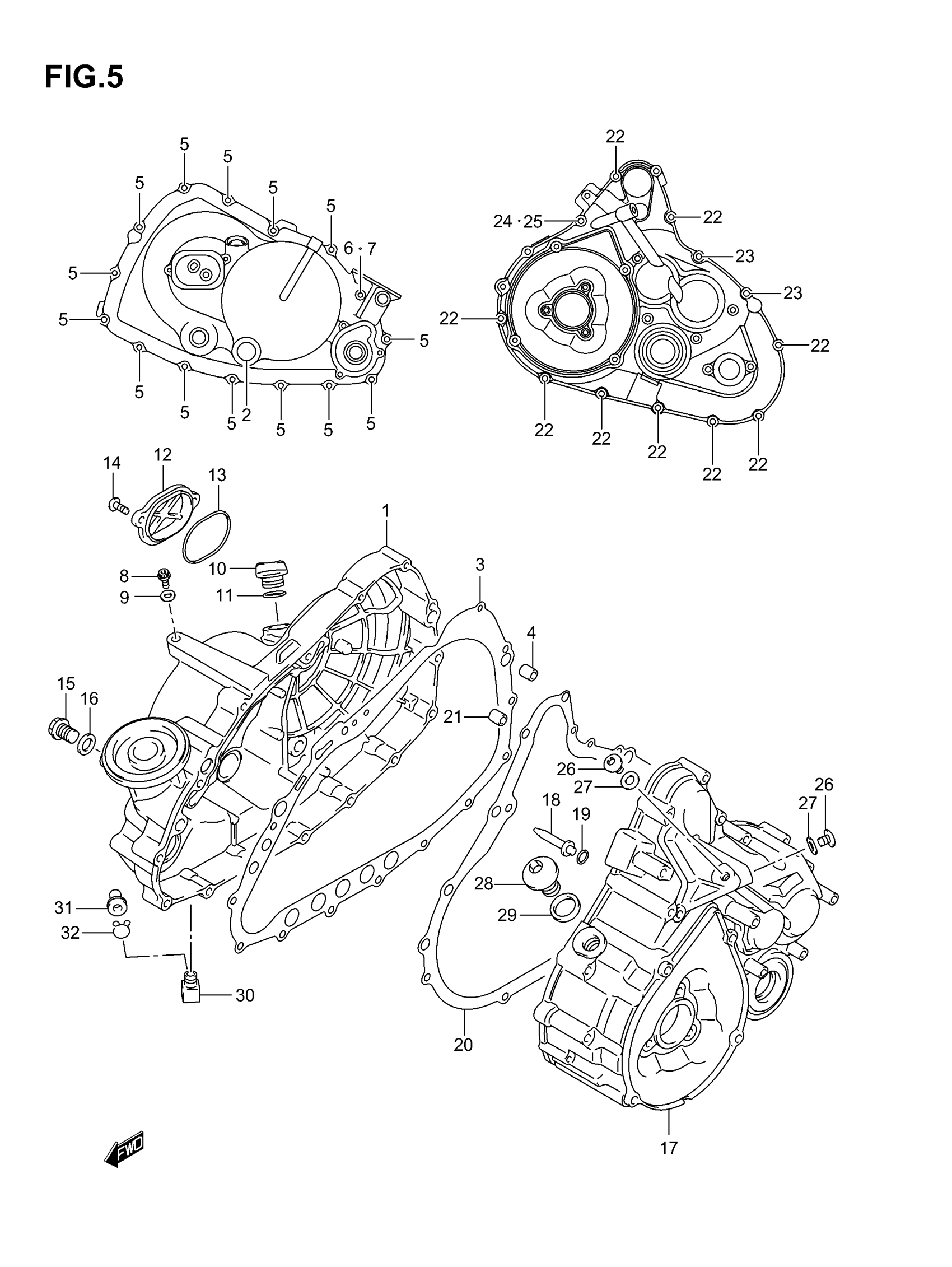

Suzuki LT-F500F (2007) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-09F01

Unavailable

2

LENS, OIL INSPECTION

11971-33210

$18.20

3

GASKET

11482-44D00

$23.07

4

PIN

04211-13189

$2.19

5

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

6

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

7

GASKET

09168-06023

$2.35

8

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.45

9

GASKET

09168-06023

$2.35

10

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

12

CAP, INSPECTION

11175-09F00

Unavailable

13

.O RING,INSPECTION CAP

11177-14D01

$4.60

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

15

PLUG, OIL PRESSURE

09247-14015

$4.45

16

GASKET

09168-14002

$2.26

17

COVER TRANSFER

11351-09F00

$452.88

18

JET, OIL MISSION

09493-36003

Unavailable

19

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

20

GASKET, TRANSFER COVER

11483-44D01

$24.93

21

PIN

04211-13189

$2.19

22

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

23

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

24

BOLT This part replaces 01547-06753.

01547-0675B

$3.93

25

GASKET

09168-06023

$2.35

26

PLUG, OIL GALLERY

09106-08116

$3.20

27

GASKET

09168-08015

$2.79

28

PLUG, TDC CHECK

09248-16012

$4.64

29

GASKET

09168-16002

$1.91

30

UNION, WATER DRAIN

17415-44D00

Unavailable

31

HOSE

13878-39C10

Unavailable

32

CLIP

09401-08401

$1.54
