Description

Price

1

CARBURETOR ASSY | MODEL K4 E28

13200-03GF0

$718.64

1

CARBURETOR ASSY | MODEL K4 E33

13200-03GG0

Unavailable

1

CARBURETOR ASSY | MODEL K5/K6/K7 E28 This part replaces 13200-03GH0.

13200-03GH1

Unavailable

1

CARBURETOR ASSY | MODEL K5/K6/K7 E33; Includes Item(s) 2 - 41 This part replaces 13200-03GJ0.

13200-03GJ1

Unavailable

2

SPRING

13503-03G00

$12.80

3

VALVE, PISTON

13501-15F00

$148.73

4

SEAT

13504-15F00

$5.13

5

NEEDLE, JET

13383-03G00

$19.72

6

JET, NEEDLE

13341-03G00

$21.50

7

HOLDER

13342-15F10

Unavailable

8

JET, MAIN (#128)

09491-25021

$17.37

9

JET, PILOT (#35)

09492-35020

$17.02

10

JET, STARTER (#65)

09491-65011

Unavailable

11

VALVE ASSY, NEEDLE

13370-29F00

$25.30

12

CLIP

13375-26E00

$5.44

13

PIN

13254-26E00

$4.43

14

FLOAT ASSY

13250-26E00

$55.41

15

O RING

13258-26E00

$8.91

16

DRAIN SCREW

13247-43E00

$6.52

17

SCREW

13602-26E10

$4.62

18

SCREW, ADJUST This part replaces 13279-26E10.

13279-03FA0

$11.38

19

SPRING

13268-26E00

$5.20

20

WASHER

13291-26E00

$2.93

21

O RING

13295-26E00

$4.34

22

STARTER VALVE

13411-03G00

$56.02

23

SPRING

13417-03G00

$5.95

24

O RING

13686-03G00

$4.34

25

HOLDER

13418-03G00

$5.44

26

CAP

13681-28E00

$8.07

27

SCREW,STOP This part replaces 13270-03G00.

13270-03G01

Unavailable

28

WASHER

13273-03G00

$3.58

29

SPRING

13268-35F00

$4.57

30

HOSE (370+50)

13683-03GF0

Unavailable

31

U RING This part replaces 13486-15F00.

13486-15F01

$2.46

32

DIAPHRAGM This part replaces 13480-38F00.

13480-38F01

$36.61

33

COVER

13481-15F00

$4.28

34

COVER

13484-15F00

$32.27

35

SCREW

13601-15F10

$3.70

36

SCREW

13601-15F00

$3.58

37

SCREW

13601-11F00

$2.93

38

COVER, DIAPHRAGM

13502-03G00

Unavailable

39

COVER

13578-03G00

$37.52

40

SCREW

13602-43E00

$3.05

41

CAP | E33

13281-26E00

$5.52

42

HOSE,5X10X600 | L:600!160 This part replaces 09355-50105-600.

44421-13ER0

$10.06

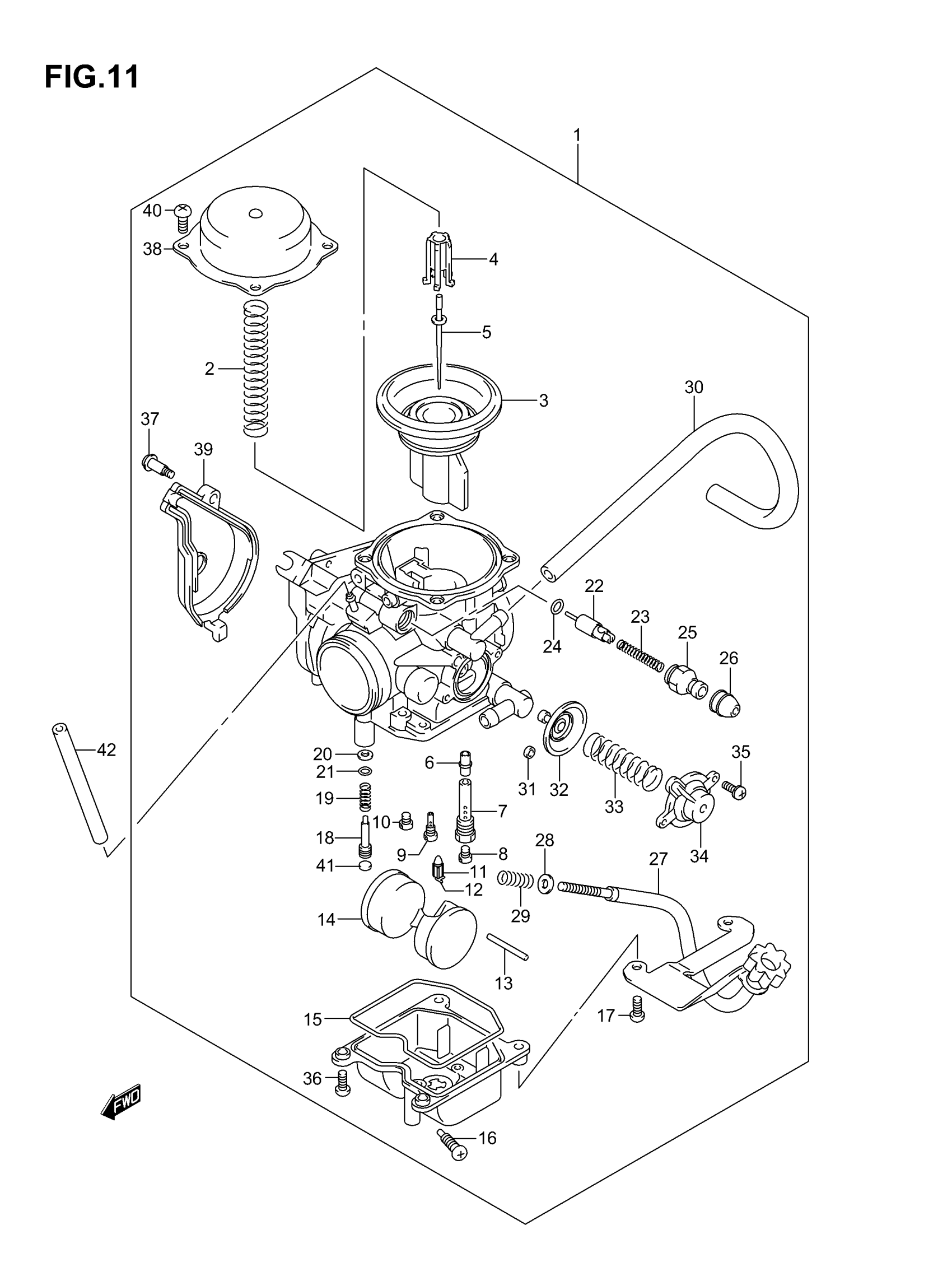

Suzuki LT-F500F (2007) CARBURETOR Diagram

CARBURETOR ASSY | MODEL K4 E28

CARBURETOR ASSY | MODEL K4 E33

CARBURETOR ASSY | MODEL K5/K6/K7 E28 This part replaces 13200-03GH0.

CARBURETOR ASSY | MODEL K5/K6/K7 E33; Includes Item(s) 2 - 41 This part replaces 13200-03GJ0.

SPRING

VALVE, PISTON

SEAT

NEEDLE, JET

JET, NEEDLE

HOLDER

JET, MAIN (#128)

JET, PILOT (#35)

JET, STARTER (#65)

VALVE ASSY, NEEDLE

CLIP

PIN

FLOAT ASSY

O RING

DRAIN SCREW

SCREW

SCREW, ADJUST This part replaces 13279-26E10.

SPRING

WASHER

O RING

STARTER VALVE

SPRING

O RING

HOLDER

CAP

SCREW,STOP This part replaces 13270-03G00.

WASHER

SPRING

HOSE (370+50)

U RING This part replaces 13486-15F00.

DIAPHRAGM This part replaces 13480-38F00.

COVER

COVER

SCREW

SCREW

SCREW

COVER, DIAPHRAGM

COVER

SCREW

CAP | E33

HOSE,5X10X600 | L:600!160 This part replaces 09355-50105-600.
