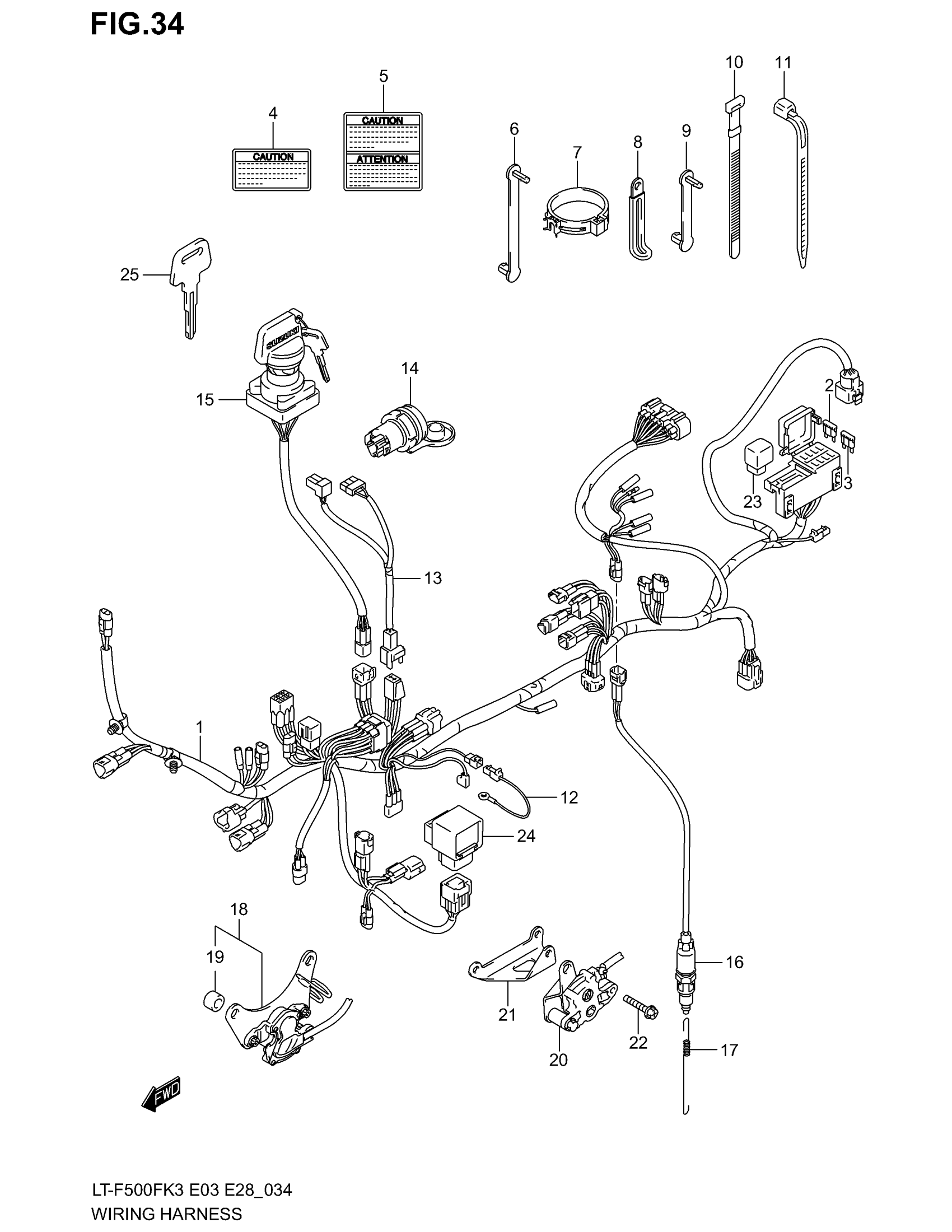

Suzuki LT-F500F (2003) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | Includes Item(s) 2 - 3

36610-03G20

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

LABEL, CAUTION MAX AMP

38852-09F30

Unavailable

5

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

6

CLAMP

36651-48E00

$3.25

7

CLAMP

09403-20403

$3.58

7

CLAMP

09403-25401

Unavailable

8

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

9

CLAMP

09407-03401

$3.07

10

CLAMP

09407-12402

$3.04

11

CLAMP (L:125)

09407-14403

$2.26

12

WIRE, IGNITION COIL

36851-05D00

$5.82

13

WIRE, FRONT BRAKE SWITCH LEAD

36854-03G00

Unavailable

14

TERMINAL, POWER SOURCE | 12V/120W

38850-03G00

$75.08

15

SWITCH ASSY,IGN This part replaces 37110-03G00.

37110-03G01

$122.99

16

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

$115.27

17

SPRING

09443-06080

$4.73

18

SWITCH ASSY, REVERSE | Includes Item(s) 19

37600-03G00

Unavailable

19

COOLAR

37609-03G00

Unavailable

20

SWITCH ASSY, GEAR INDICATOR

37670-03G00

Unavailable

21

BRACKET GEAR IND SWITCH

37674-03G10

Unavailable

22

BOLT, BRAKE CAM LEVER This part replaces 02162-05303.

01550-0525A

$2.06

23

RELAY,NEUTRAL START

38730-09F00

$46.55

24

RELAY ASSY, DRIVE

38750-03G00

$145.53

25

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

25

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

25

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

25

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
