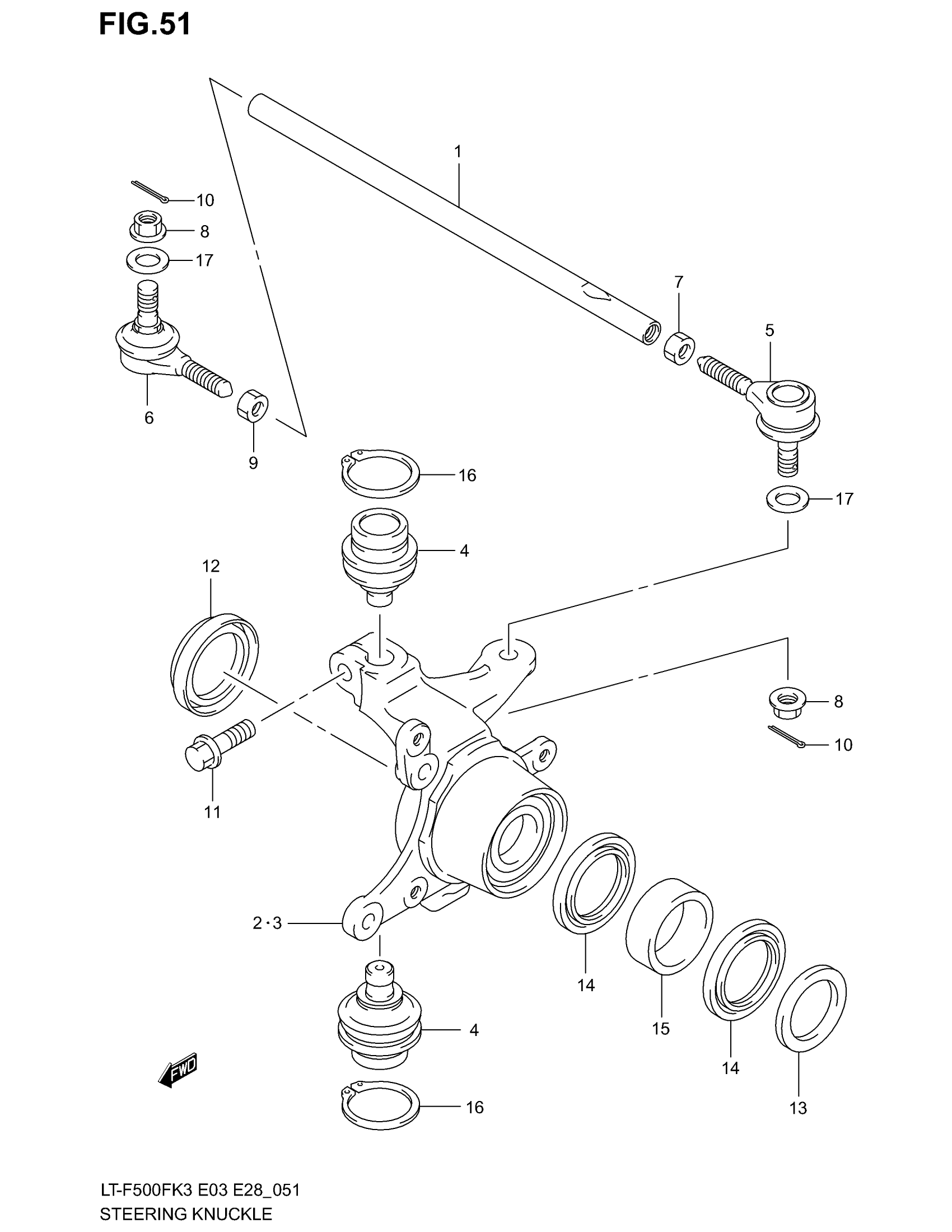

Suzuki LT-F500F (2003) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-03G00

$32.00

2

KNUCKLE, STEERING RH

51231-03GF0

Unavailable

3

KNUCKLE, STEERING LH

51241-03GF0

Unavailable

4

END,KNUCKLE STEERING

51210-38F00

$65.76

5

ROD, END RH (RH THREAD)

51260-07G01

$82.02

6

ROD, END (LH THREAD)

51270-07G01

Unavailable

7

NUT, TIE ROD (RH THREAD)

09140-10043

$2.68

8

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

9

NUT, TIE ROD (LH THREAD)

09140-10027

$1.49

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

BOLT, KNUCKLE (10X30)

51233-09F00

$5.62

12

DUST SEAL, INNER (38X55X8)

09283-38012

$14.74

13

DUST SEAL, OUTER (38X55X6.4)

09283-38022

$13.01

14

BEARING

08123-60067

$29.13

15

SPACER,HUB BEARING

54731-03G00

$11.64

16

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.57

17

WASHER, ROD END

09181-11001

$4.90
