2003 Suzuki LT-F500F Starter Clutch Diagram

← All diagrams

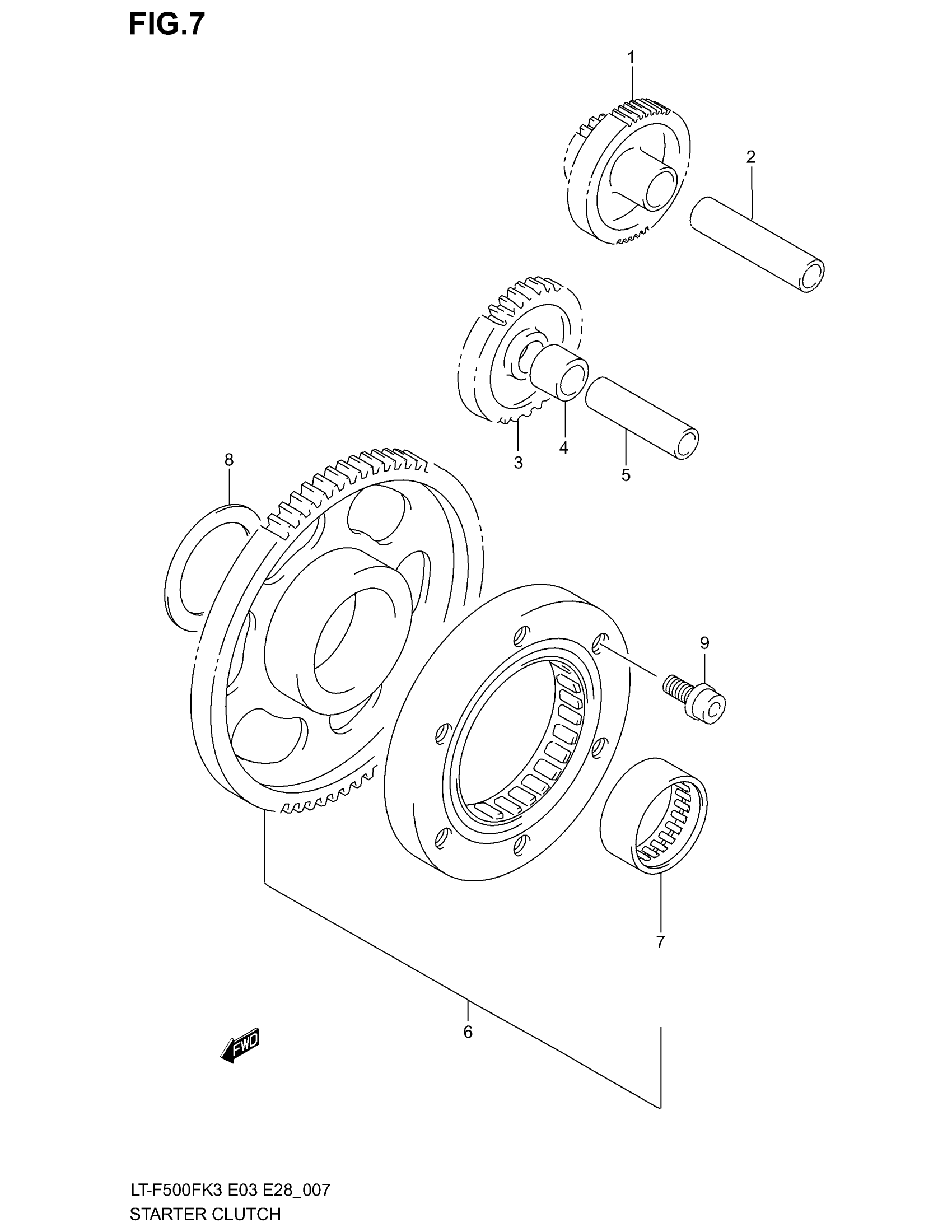

Find the part on the Starter Clutch diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki LT-F500F Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$75.73

In stock

2

PIN

09206-12005

1
Out of stock

3

1

$71.20

In stock

4

1

$6.16

In stock

5

PIN

09206-12006

1
Out of stock

6

1

$386.90

In stock

7

BEARING (31X39X17.8)

09263-31009

1

$51.08

In stock

8

WASHER

08211-35505

1

$9.90

In stock

9

BOLT

09106-08106

6
Out of stock
