Description

Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-03G00

$89.07

2

COVER, STARTER RELAY

31861-26E00

$3.92

3

FUSE, 30A

09481-30101

$2.28

4

BOLT, STARTING MOTOR TERM

09128-06013

$1.24

5

CDI UNIT

32900-09FA0

$866.43

6

COIL ASSY, IGNITION

33410-09F00

$87.46

7

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

8

CAP, SPARK PLUG

33510-43010

$22.88

9

SEAL, SPARK PLUG

33541-44D00

$4.85

10

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

11

RECTIFIER ASSY

32800-42F00

$217.09

12

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

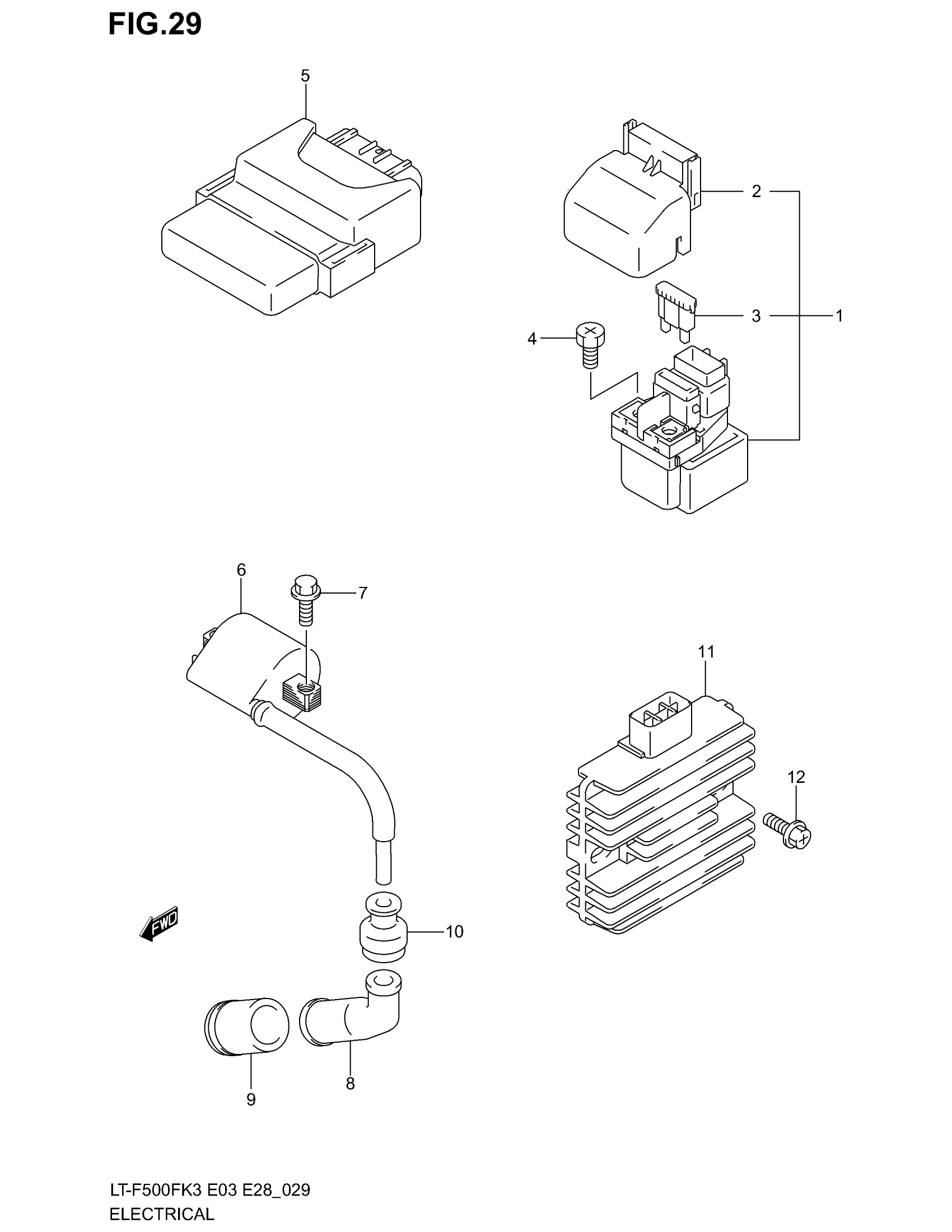

Suzuki LT-F500F (2003) ELECTRICAL Diagram
