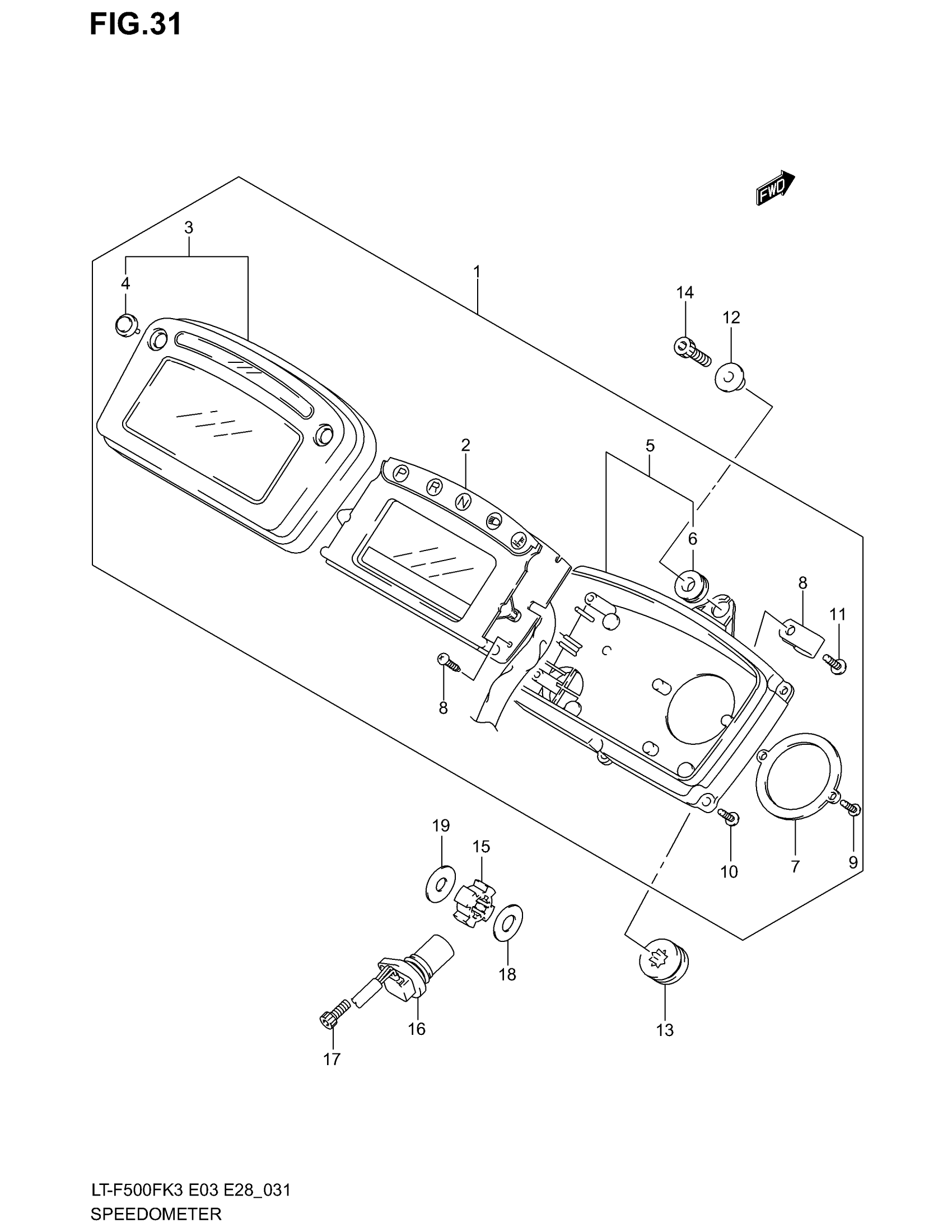

Suzuki LT-F500F (2003) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-03G40

Unavailable

1

SPEEDOMETER ASSY | E28; Includes Item(s) 2 - 11

34100-03G50

Unavailable

2

SPEEDOMETER

34120-03G40

Unavailable

2

SPEEDOMETER | E28

34120-03G50

Unavailable

3

CASE, UPPER This part replaces 34150-03G00.

34150-31G00

$98.18

4

SWITCH LEVER

34124-24F00

$8.83

5

CASE, LOWER This part replaces 34111-03G00.

34111-03G60

$53.58

6

DAMPER

34955-33E00

$3.56

7

BRACKET

34128-03G00

Unavailable

8

CLAMP

34176-03G00

Unavailable

9

SCREW (3X14)

34149-31F10

$4.10

10

SCREW (3X14)

34149-03G00

$3.71

11

SCREW This part replaces 02142-04163.

02142-0416A

$2.27

12

SPACER

34187-47F00

$7.85

13

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

14

BOLT This part replaces 07130-05203.

07130-0520B

$2.53

15

ROTOR, SPEED

34981-03G00

Unavailable

16

SENSOR,SPEED This part replaces 34990-03G00.

34990-03G01

Unavailable

17

BOLT, SENSOR

09106-06073

$2.39

18

WASHER, SPEED ROTOR

08211-10281

$2.03

19

WASHER, SPEED ROTOR

08211-12282

$2.65
