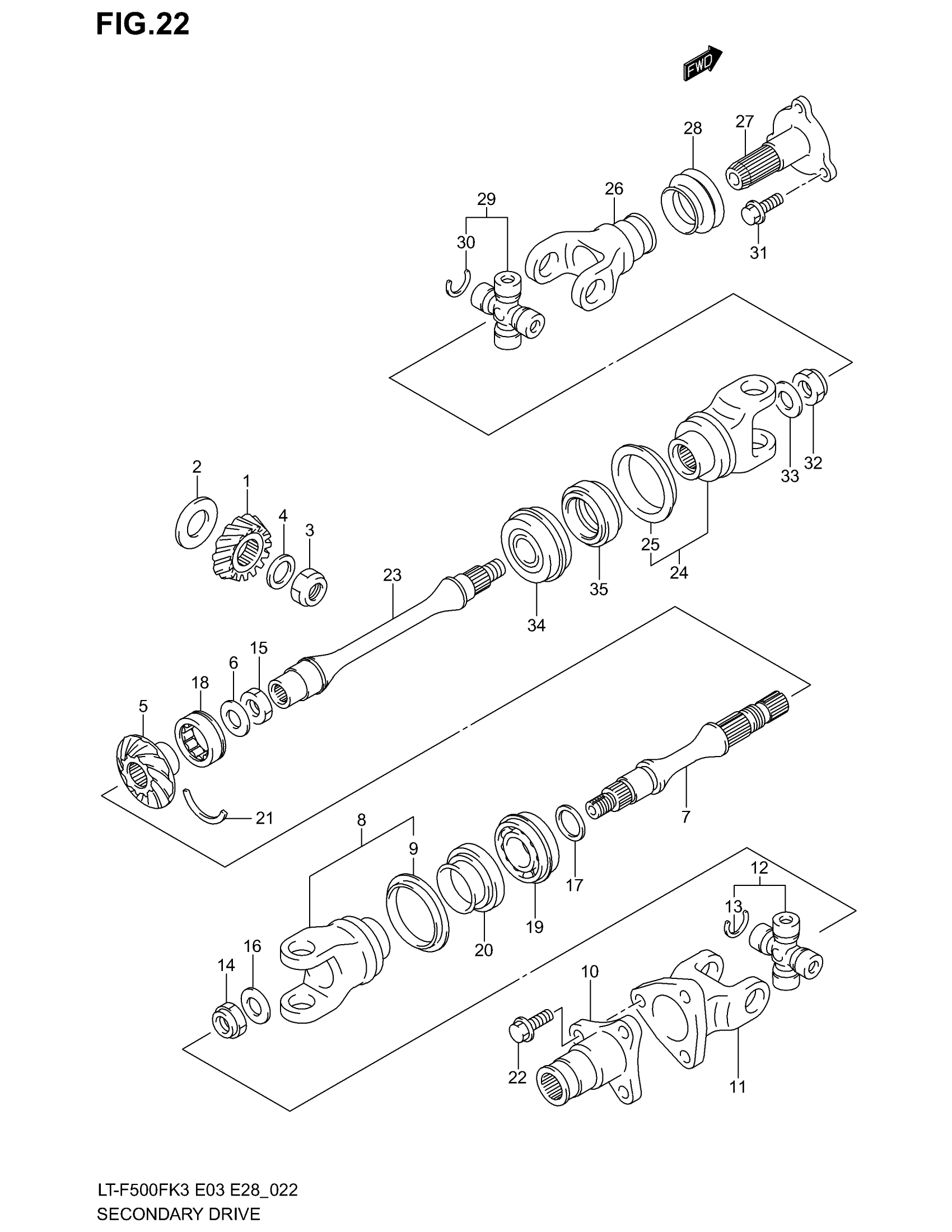

Suzuki LT-F500F (2003) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL | NT:15

24911-44D11

$223.23

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/0.95/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

$133.70

3

NUT, SEC DRIVE BEVEL GR

09140-20012

$4.32

4

WASHER, SEC DRIVE BEVEL GR

09164-20007

$4.60

5

GEAR, SEC DRIVEN BEVEL

24921-44D10

$272.28

6

WASHER, SEC DRIVEN GEAR

08211-22365

$5.97

7

SHAFT, SEC DRIVEN OUTPUT RR

24971-44D60

Unavailable

8

YOKE, RR DRIVE OUTPUT | Includes Item(s) 9

27130-03G50

$192.60

9

PLATE, OUTPUT

27592-38F00

$11.33

10

SHAFT, PROPELLER REAR

27150-38F00

$135.18

11

YOKE, PROP SHAFT JOINT REAR

27161-03G00

Unavailable

12

JOINT SET, UNIVERSAL RR | Includes Item(s) 13 This part replaces 27200-73813.

27200-73814

$50.65

13

CIRCLIP

09380-25005

$1.67

14

NUT, REAR OUTPUT JOINT

09159-16003

$4.00

15

NUT, SEC DRIVEN GEAR

09159-22005

$27.75

16

WASHER, REAR OUTPUT FRANGE | 16X30X3

09160-16026

$5.00

17

SHIM, SEC DRIVEN | 25X34X0.6

09181-25051

$3.50

17

SHIM, SEC DRIVEN | 25X34X0.65

09181-25052

$3.50

17

SHIM (25X34X0.7) | 25X34X0.70 This part replaces 09181-25053.

09181-25160

$2.93

17

SHIM, SEC DRIVEN | 25X34X0.75

09181-25054

$3.50

17

SHIM 0.8 | 25X34X0.80 This part replaces 09181-25055.

09181-25162

$2.42

17

SHIM, SEC DRIVEN | 25X34X0.85

09181-25056

$3.42

17

SHIM 0.9 | 25X34X0.90 This part replaces 09181-25057.

09181-25164

$2.42

17

SHIM, SEC DRIVEN | 25X34X0.95

09181-25058

$3.50

17

WASHER, 5TH DRIVE | 25X34X1.00 This part replaces 09181-25059.

09181-25167

$3.12

17

SHIM, SEC DRIVEN | 25X34X1.05

09181-25060

$3.42

17

SHIM, SEC DRIVEN | 25X34X1.10

09181-25061

$3.85

17

SHIM, SEC DRIVEN | 25X34X1.15

09181-25062

$3.27

17

SHIM, SEC DRIVEN | 25X34X1.20

09181-25063

$3.77

18

BRG, SEC DRIVEN GEAR, MDL | 30X50X17

09263-30050

$57.07

19

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

$124.50

20

OIL SEAL, DRIVEN SFT, RR | 34X52X9

09283-34008

$20.72

21

RING, SEC DRIVEN BRG, MDL

09390-50002

$3.03

22

BOLT, PROP SHAFT, RR

09103-10310

$3.10

23

SHAFT, SEC DRIVEN, FR

24960-44D60

Unavailable

24

YOKE, FR DRIVE OUTPUT | Includes Item(s) 25

27130-03G00

$156.94

25

PLATE, OUTPUT

27592-38F00

$11.33

26

YOKE, PROP SFT JOINT, FR

27140-03G00

$117.76

27

SHAFT, PROPELLER

27150-03G50

Unavailable

28

BOOT, PROP SHAFT

27153-03G00

$10.47

29

JOINT SET,UNIVERSAL | Includes Item(s) 30 This part replaces 27200-19810.

27200-19811

$59.54

30

CIRCLIP

09380-20016

$2.32

31

BOLT, PROPELLER SHAFT

09103-10310

$3.10

32

NUT, FR DRIVE OUTPUT YOKE

09159-16003

$4.00

33

WASHER, FR DRIVE OUTPUT YOKE | 16X30X3

09160-16026

$5.00

34

BRG, SEC DRIVEN OUTPUT SFT FR | 25X47X8

09262-25006

$25.54

35

OIL SEAL, DRIVEN SFT, FR | 34X52X9

09283-34008

$20.72
