Description

Price

1

HUB, REAR WHEEL RH | Includes Item(s) 2

64110-38F10

$82.02

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (12X7.5AT) (SILVER)

65311-03G00-12Z

Unavailable

4

NUT

09140-10021

$2.03

5

WASHER

64723-09F00

$13.35

6

NUT, HUB

09141-18010

$10.11

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

AXLE, REAR RH

64711-03G00

Unavailable

10

DISC, REAR BRAKE

69211-38F00

$273.07

11

BOLT

09106-08155

$3.76

12

NO DESCRIPTION AVAILABLE This part replaces 65110-03G00.

65110-03G10

Unavailable

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

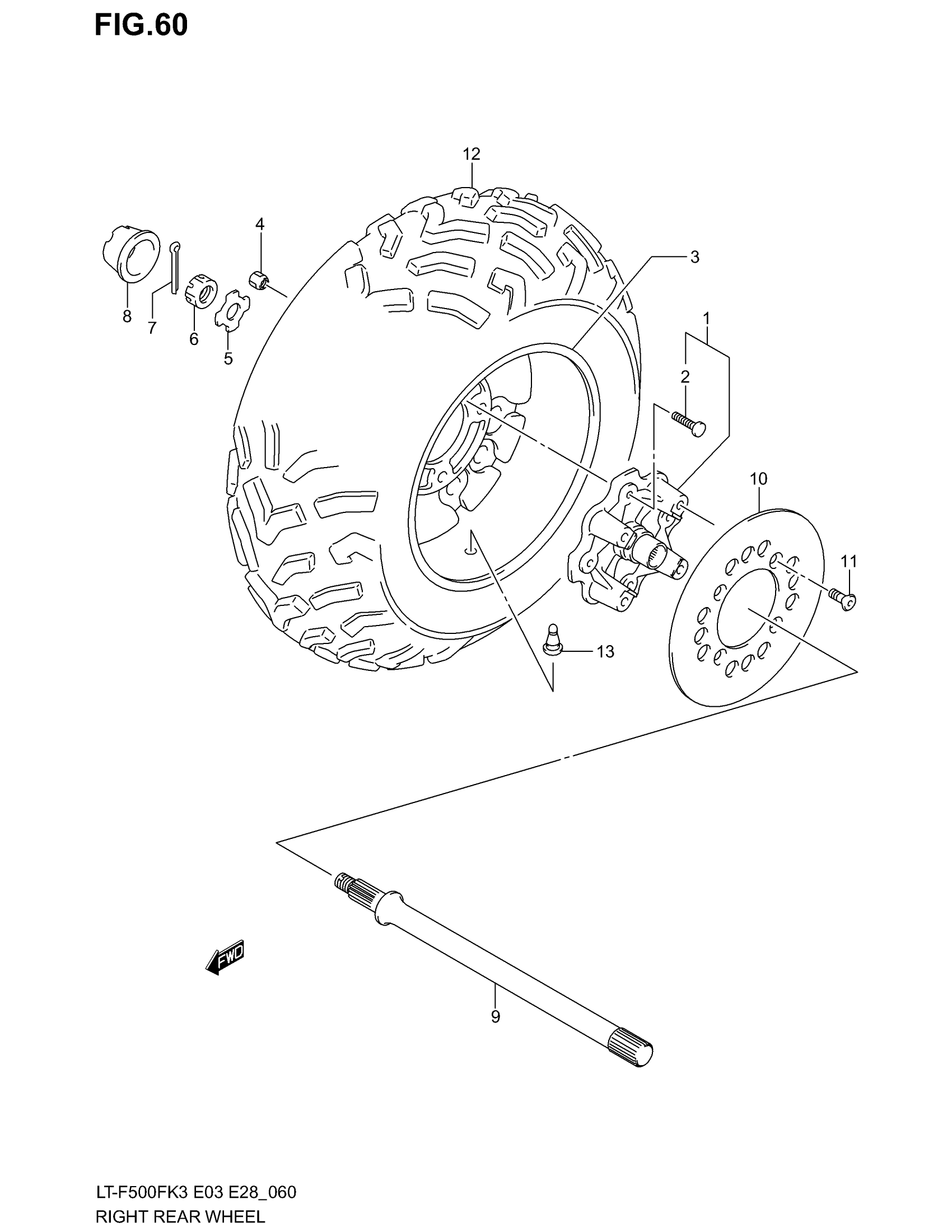

Suzuki LT-F500F (2003) RIGHT REAR WHEEL Diagram

HUB, REAR WHEEL RH | Includes Item(s) 2

BOLT (10X30) This part replaces 09119-10049.

RIM, REAR WHEEL (12X7.5AT) (SILVER)

NUT

WASHER

NUT, HUB

PIN, COTTER This part replaces 04111-40408.

CAP,WHEEL CENTER

AXLE, REAR RH

DISC, REAR BRAKE

BOLT

NO DESCRIPTION AVAILABLE This part replaces 65110-03G00.

VALVE ASSY, WHEEL RIM (TR412)
