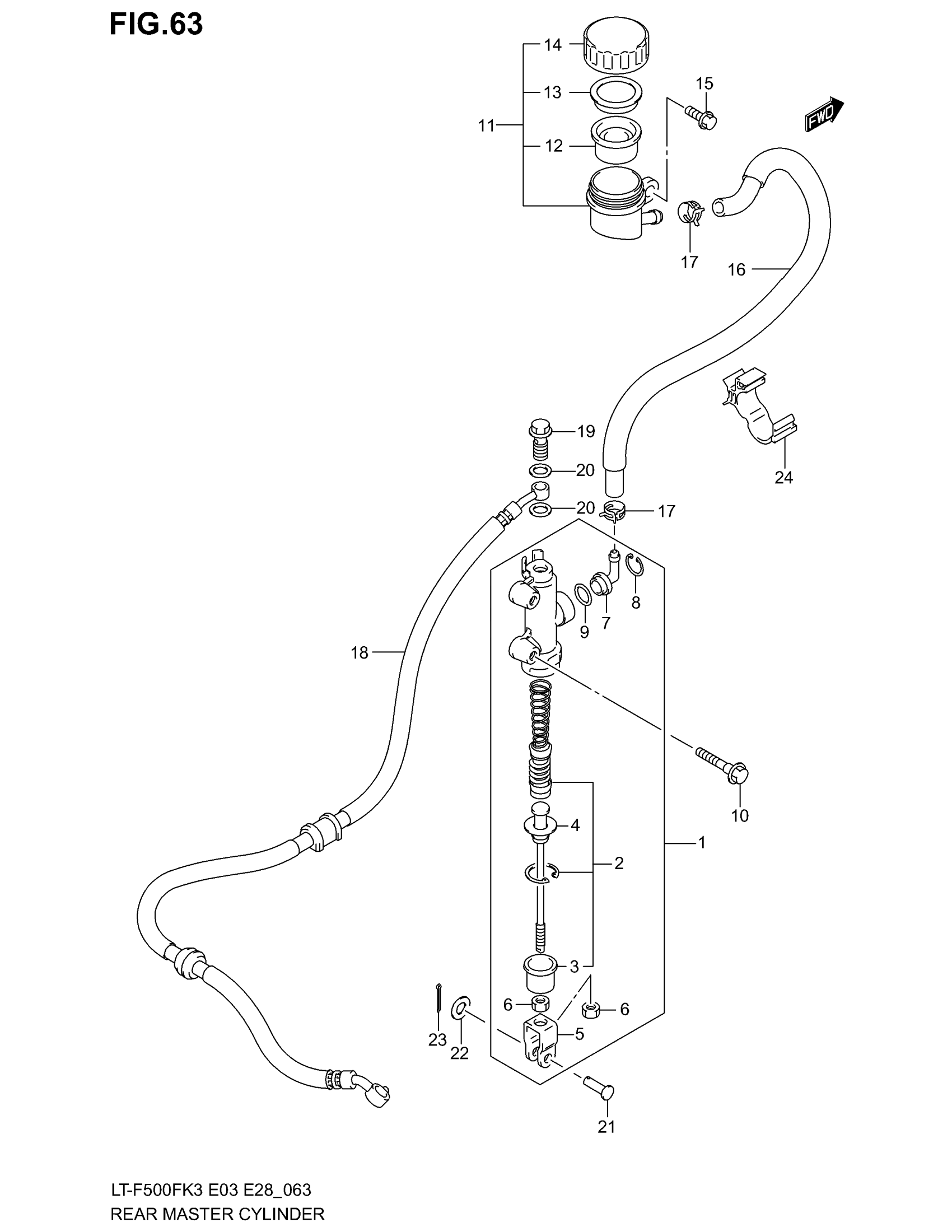

Suzuki LT-F500F (2003) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-03GF0

$301.50

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-03GF0

Unavailable

5

YOKE

69692-19A00

$16.87

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

CIRCLIP

69674-00B20

$3.97

9

O RING

69686-34200

$2.93

10

BOLT

09103-06144

$3.75

11

TANK ASSY, REAR SERVOIR | Includes Item(s) 12 - 14

69740-03D00

$75.90

12

DIAPHRAGM

69667-00B20

$15.68

13

PLATE

69668-00B20

$7.67

14

CAP

69669-03D00

$22.65

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

16

HOSE, REAR BRAKE

69730-03G00

Unavailable

17

CLIP

09401-12404

$2.34

18

HOSE, REAR BRAKE

69480-03G10

$102.63

19

UNION This part replaces 09360-10042.

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

22

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

24

CLAMP

09403-15405

$2.72
