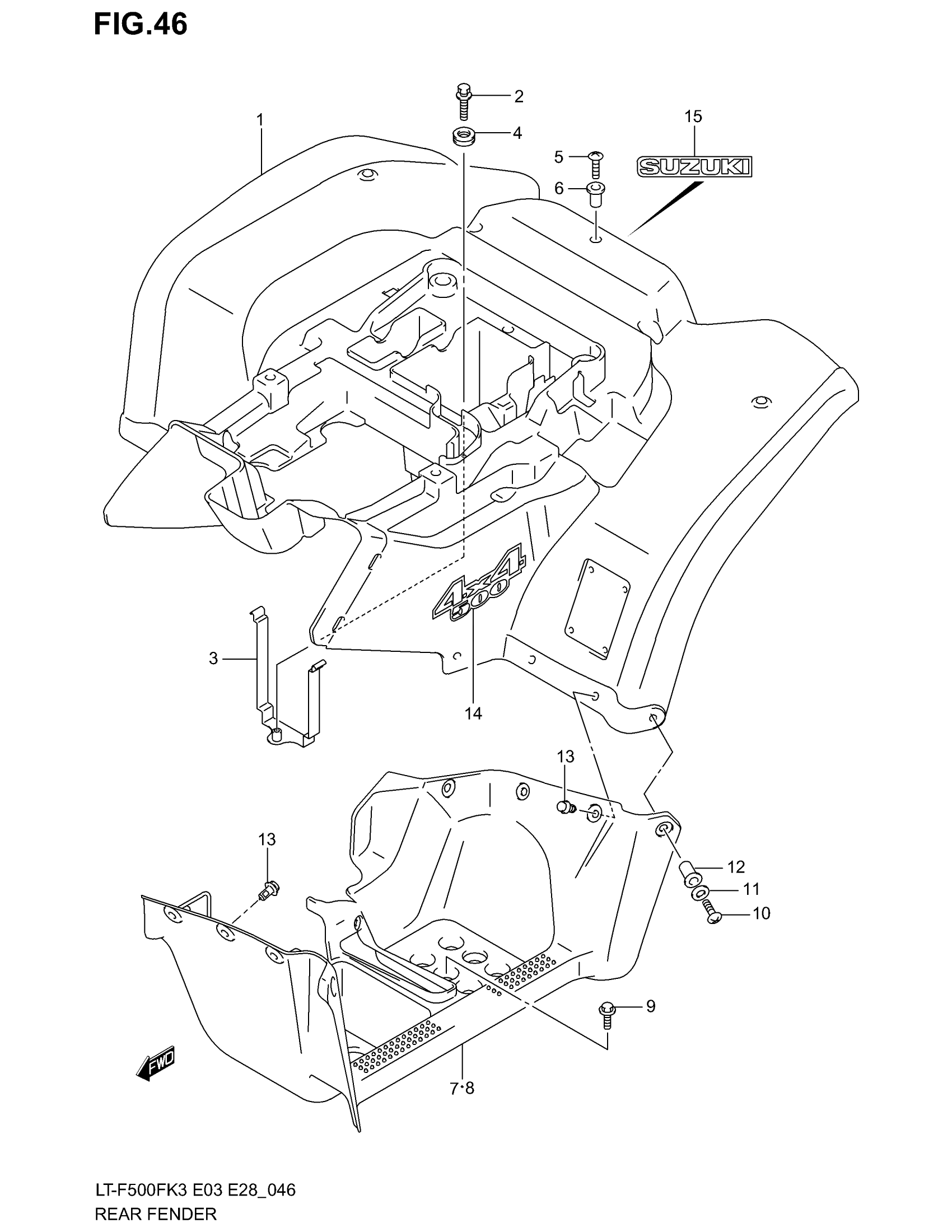

Suzuki LT-F500F (2003) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) This part replaces 63111-03G20-YU1.

63111-03G21-YU1

$587.13

1

FENDER, REAR (GREEN) This part replaces 63111-03G20-YT8.

63111-03G21-YT8

$532.98

1

FENDER, REAR (RED) This part replaces 63111-03G20-YT9.

63111-03G21-YT9

$597.02

2

BOLT, CENTER

09112-06009

$3.93

3

BRACKET, REAR FENDER

63151-03G01

Unavailable

4

CUSHION

09320-11008

$2.60

5

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

6

NUT

09159-05019

$7.14

7

MUDGUARD,FOOTRE This part replaces 63331-03GF0-291.

63331-03GF1-291

Unavailable

8

MGFR,LH MANAUAL This part replaces 63341-03GF0-291.

63341-03GF1-291

Unavailable

9

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

$2.03

10

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

11

WASHER

09160-05046

$1.92

12

NUT

09159-05019

$7.14

13

CLIP

09409-08335

$2.47

14

EMBLEM, SIDE

68171-03G10-JY5

Unavailable

15

EMBLEM, REAR | FOR YU1

68171-44B00-HW1

$12.48

15

EMBLEM, REAR | FOR YT8

68171-44B00-HV6

Unavailable

15

EMBLEM, REAR | FOR YT9

68171-44B00-HV5

$10.89
