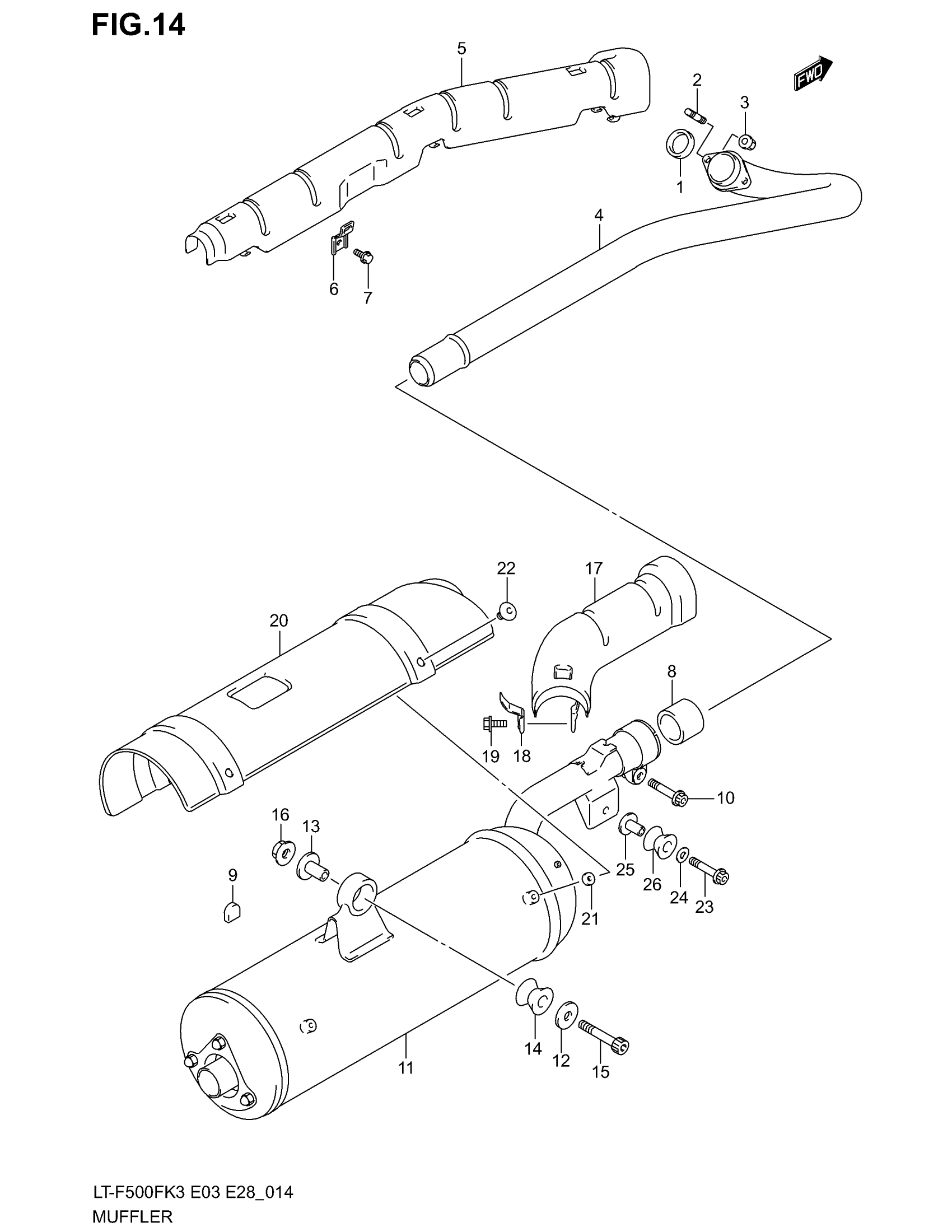

Suzuki LT-F500F (2003) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-18C00

$7.22

2

BOLT,STUD This part replaces 01421-08253.

01421-0825A

$2.03

3

NUT This part replaces 08319-31083.

08319-3108A

$2.32

4

PIPE, EXHAUST

14150-03GF0

Unavailable

5

COVER, EXHAUST PIPE, FRONT

14180-03GF0

Unavailable

6

CLAMP

14185-03G00

Unavailable

7

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

8

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$15.57

9

GROMMET

14795-06F00

Unavailable

10

BOLT This part replaces 07120-08403.

07120-0840A

$3.42

11

NO DESCRIPTION AVAILABLE This part replaces 14310-03G01.

14300-03810

Unavailable

12

WASHER, MUFFLER SUPPORT

09160-08503

$2.50

13

SPACER, MUFFLER SUPPORT

09180-08152

$5.83

14

CUSHION, MUFFLER SUPPORT

09320-12048

$5.11

15

BOLT, MUFFLER SUPPORT This part replaces 07120-08453.

07120-0845B

$3.91

16

NUT This part replaces 08319-31083.

08319-3108A

$2.32

17

COVER, MUFFLER FRONT

14790-03G00

Unavailable

18

CLAMP

14185-03G00

Unavailable

19

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

20

COVER, MUFFLER REAR

14880-03GF0

Unavailable

21

GASKET, MUFFLER COVER

09168-06120

$2.92

22

SCREW, MUFFLER COVER

09139-06027

$2.16

23

BOLT

09106-08133

$3.89

24

WASHER, EXHAUST SUPPORT

09160-08135

$2.35

25

SPACER, EXHAUST SUPPORT

09180-08151

$5.18

26

CUSHION, EXHAUST SUPPORT

09320-12043

$7.98
