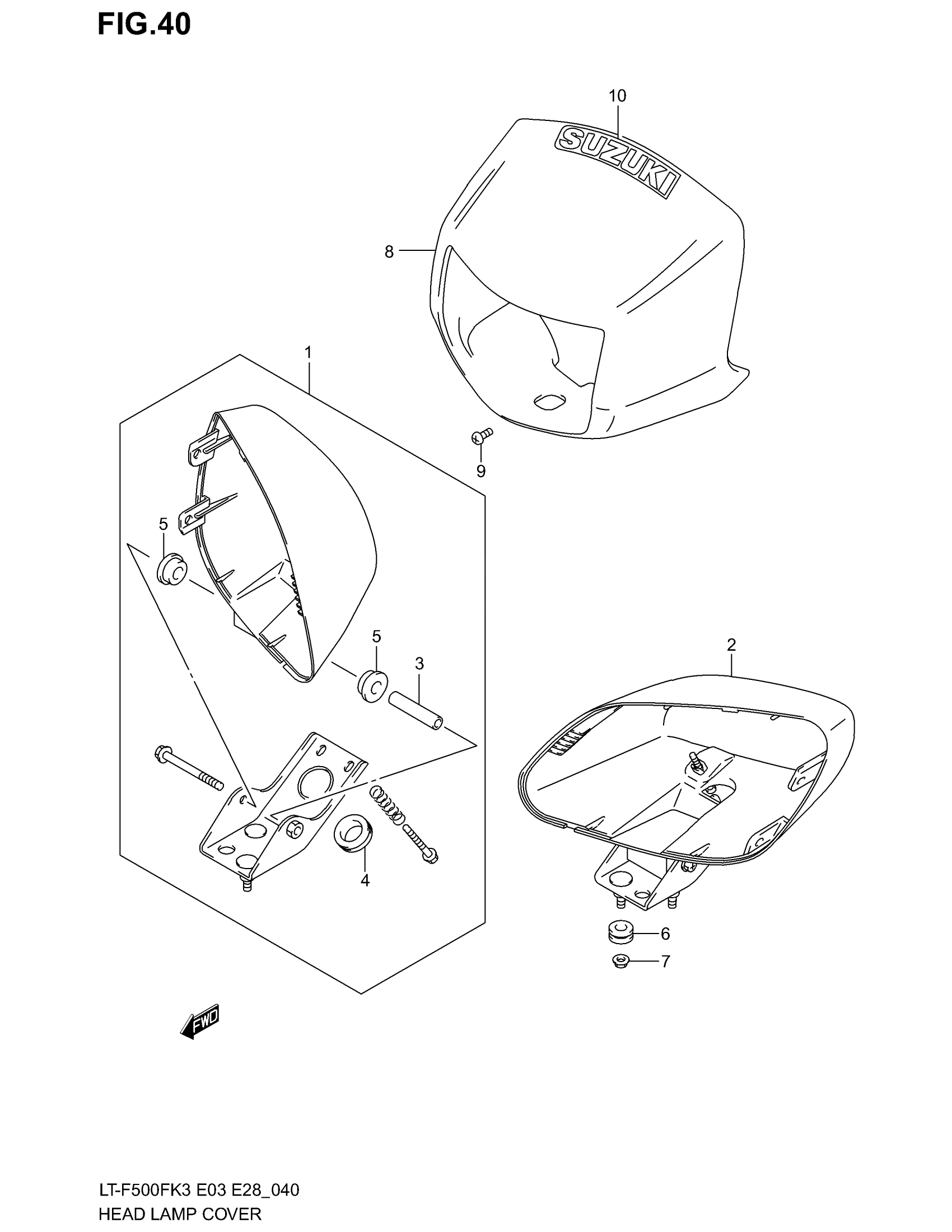

Suzuki LT-F500F (2003) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP RH

51800-03G50

Unavailable

2

HOUSING, HEADLAMP LH | Includes Item(s) 3 - 5

51800-03G60

$108.15

3

SPACER

09180-06281

$8.58

4

CUSHION

09320-09013

Unavailable

5

CUSHION, BRACKET

09320-20008

$4.32

6

CUSHION

09320-10501

$6.23

7

NUT This part replaces 08319-31063.

08319-3106A

$2.03

8

COVER, HANDLE FRONT (YELLOW)

56311-03G00-YU1

Unavailable

8

COVER, HANDLE FRONT (GREEN)

56311-03G00-YT8

$39.73

8

COVER, HANDLE FRONT (RED)

56311-03G00-YT9

$86.53

9

SCREW This part replaces 02112-05123.

02112-0512A

$1.49

10

EMBLEM | FOR YU1

68171-44B00-HW1

$12.48

10

EMBLEM | FOR YT8

68171-44B00-HV6

Unavailable

10

EMBLEM | FOR YT9

68171-44B00-HV5

$10.89
