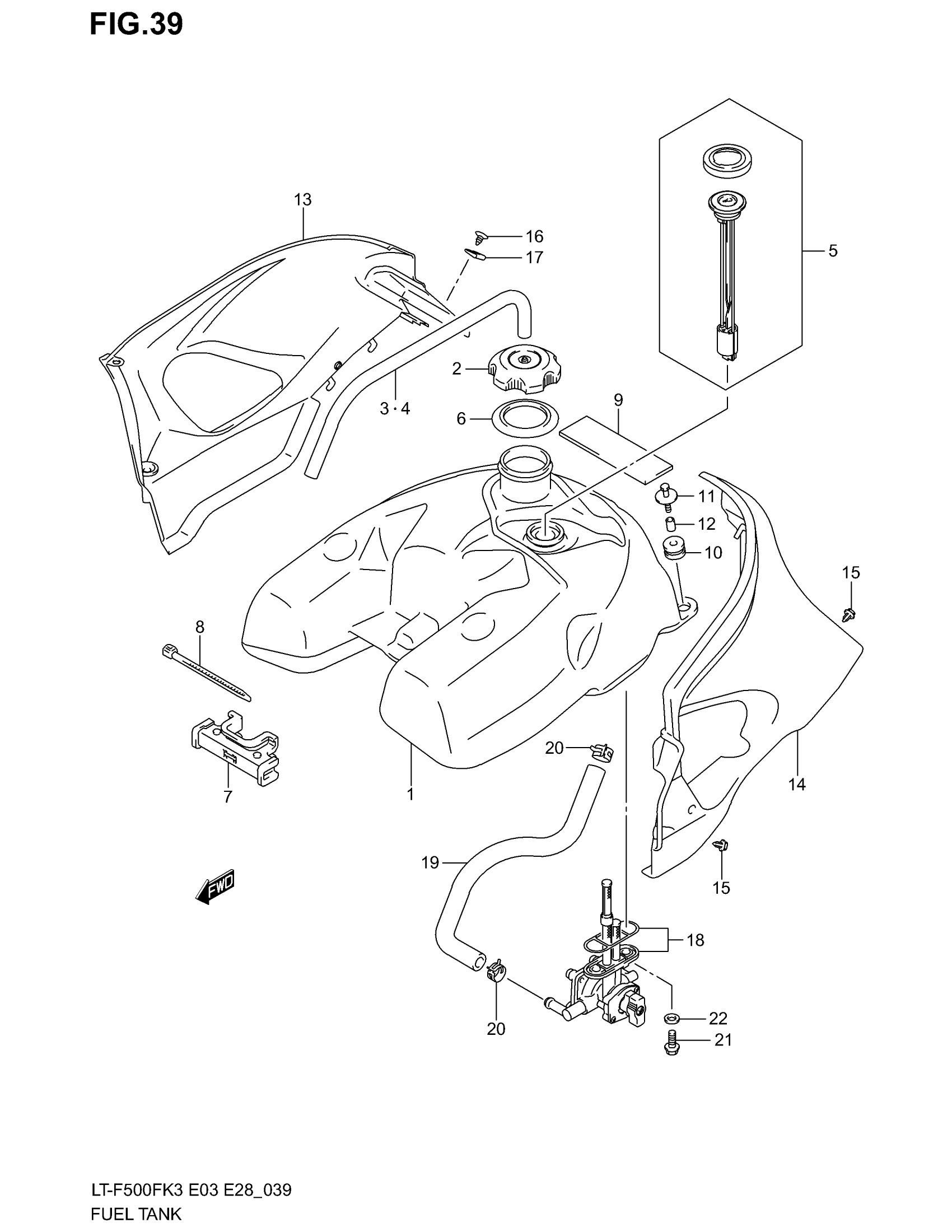

Suzuki LT-F500F (2003) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-03GF0

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

GAUGE ASSY,FUEL This part replaces 44580-03G01.

44580-03G02

Unavailable

6

RUBBER, INLET

44261-38F00

$13.35

7

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

8

CLAMP

09407-14407

$3.57

9

CUSHION

47451-38A01

$4.43

10

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

11

BOLT

09116-06190

$2.34

12

SPACER

09180-06293

$2.58

13

COVER, TANK RH (BLACK) This part replaces 44271-03G02-291.

44271-03G03-291

Unavailable

14

COVER, TANK LH (BLACK)

44272-03GF0-291

Unavailable

15

CLIP

09409-07333

$2.31

16

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

17

NUT

09148-05038

$1.97

18

COCK ASSY,FUEL This part replaces 44300-03G01.

44300-03G03

$92.88

19

HOSE, FUEL This part replaces 44421-03GF0.

44421-03GF1

$24.42

20

CLIP This part replaces 09401-11407.

09401-11415

$2.23

21

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

22

GASKET

09168-06026

$3.10
