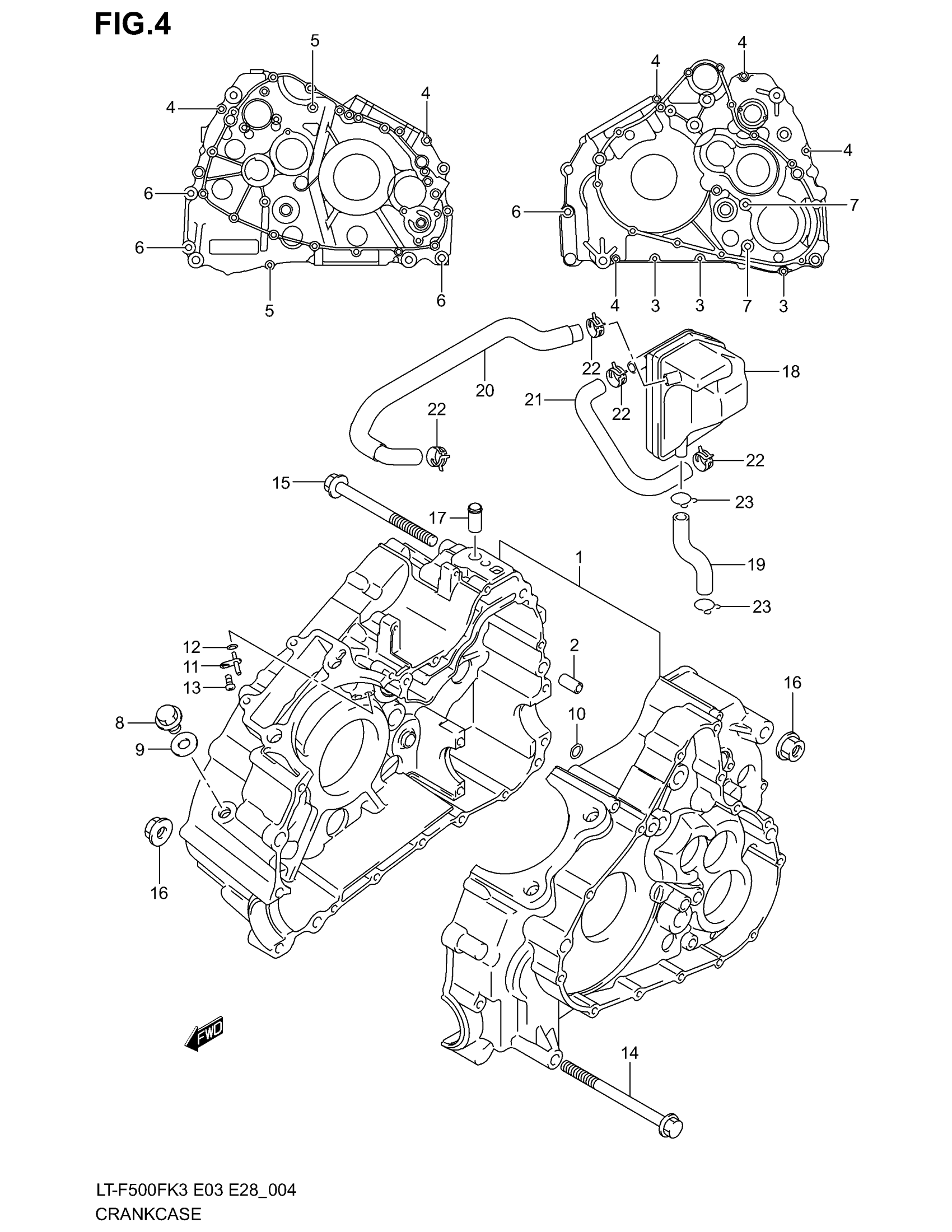

Suzuki LT-F500F (2003) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 13 This part replaces 11301-09850.

11301-09851

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

4

BOLT This part replaces 01547-06753.

01547-0675B

$3.93

5

BOLT This part replaces 01547-06903.

01547-0690B

$3.20

6

BOLT This part replaces 01550-08503.

01550-0850B

$4.17

7

BOLT This part replaces 01550-08853.

01550-0885B

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 01550-12163.

01550-1216B

Unavailable

9

GASKET

09168-12002

$1.59

10

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

11

JET, PISTON COOLING

11390-09F00

Unavailable

12

O RING

09280-04004

$1.91

13

SCREW

09125-06110

$2.12

14

BOLT (10X180)

09103-10136

$9.32

15

BOLT (10X208)

09103-10152

Unavailable

16

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

17

UNION, BREATHER HOSE

09364-12002

Unavailable

18

TANK, OIL RETURN

11330-03G00

Unavailable

19

HOSE, BREATHER

11332-03G00

Unavailable

20

HOSE, BREATHER

11333-03G00

Unavailable

21

HOSE, BREATHER

11334-03G00

Unavailable

22

CLIP

09401-15101

$2.26

23

CLIP

09401-15404

$2.26
