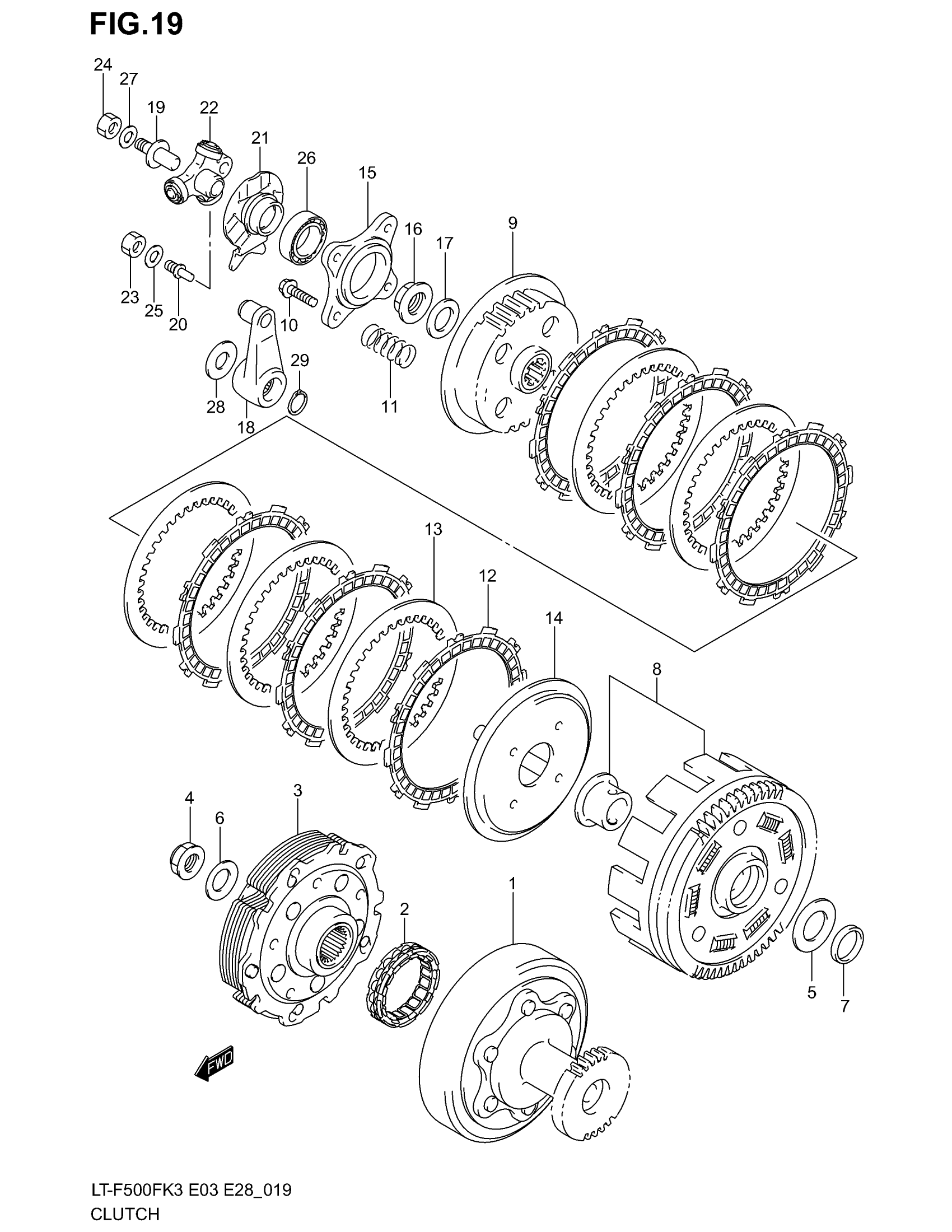

Suzuki LT-F500F (2003) CLUTCH Diagram

#

Description
Price

1

HOUSING, STARTER CLUTCH

21120-03G50

Unavailable

2

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$138.71

3

SHOE, STARTER CLUTCH

21500-03G50

Unavailable

4

NUT,STARTER CLUTCH SHOE

21518-44D00

$13.74

5

WASHER, PRI DRIVE THR | 33.5X41.8X2.0

09160-33009

Unavailable

6

WASHER, STARTER CLUTCH

09164-20007

$4.60

7

WASHER, PRIMARY DRIVEN GEAR

08211-22421

Unavailable

8

GEAR ASSY, PRIMARY DRIVEN

21200-03810

Unavailable

9

HUB, CLUTCH SLEEVE

21411-44D00

$141.12

10

BOLT, CLUTCH SPRING (6X25)

09103-06099

$2.23

11

SPRING, CLUTCH

21413-03G50

$8.42

12

PLATE, CLUTCH DRIVE

21441-03G50

$26.93

13

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$11.28

14

DISK,CLUTCH PRESSURE

21462-44D00

$61.93

15

PLATE, CLUTCH RELEASE

21465-44D00

$20.09

16

NUT,CLUTCH SLEEVE HUB

21414-44D00

$15.08

17

WASHER, CL SLEEVE HUB

09164-20007

$4.60

18

ARM,CLUTCH RELEASE

23220-03G50

Unavailable

19

BOLT, CLUTCH RLSE NO.1

23223-44D11

$8.28

20

BOLT, CLUTCH RLSE NO.2

23224-44D00

$6.70

21

GUIDE,CL RELEASE ROLLER

23230-03G50

$59.87

22

ROLLER ASSY,CLUTCH RELEASE

23250-03G50

Unavailable

23

NUT, CLUTCH RELEASE NO.2

09140-06023

$2.06

24

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

25

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

26

BEARING

08113-69050

$35.66

27

WASHER, CLUTCH RLSE NO.2 | 8X20X1

09160-08103

$3.48

28

WASHER, CLUTCH RLSE ARM

08211-10242

$3.70

29

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91
