2003 Suzuki LT-F500F Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

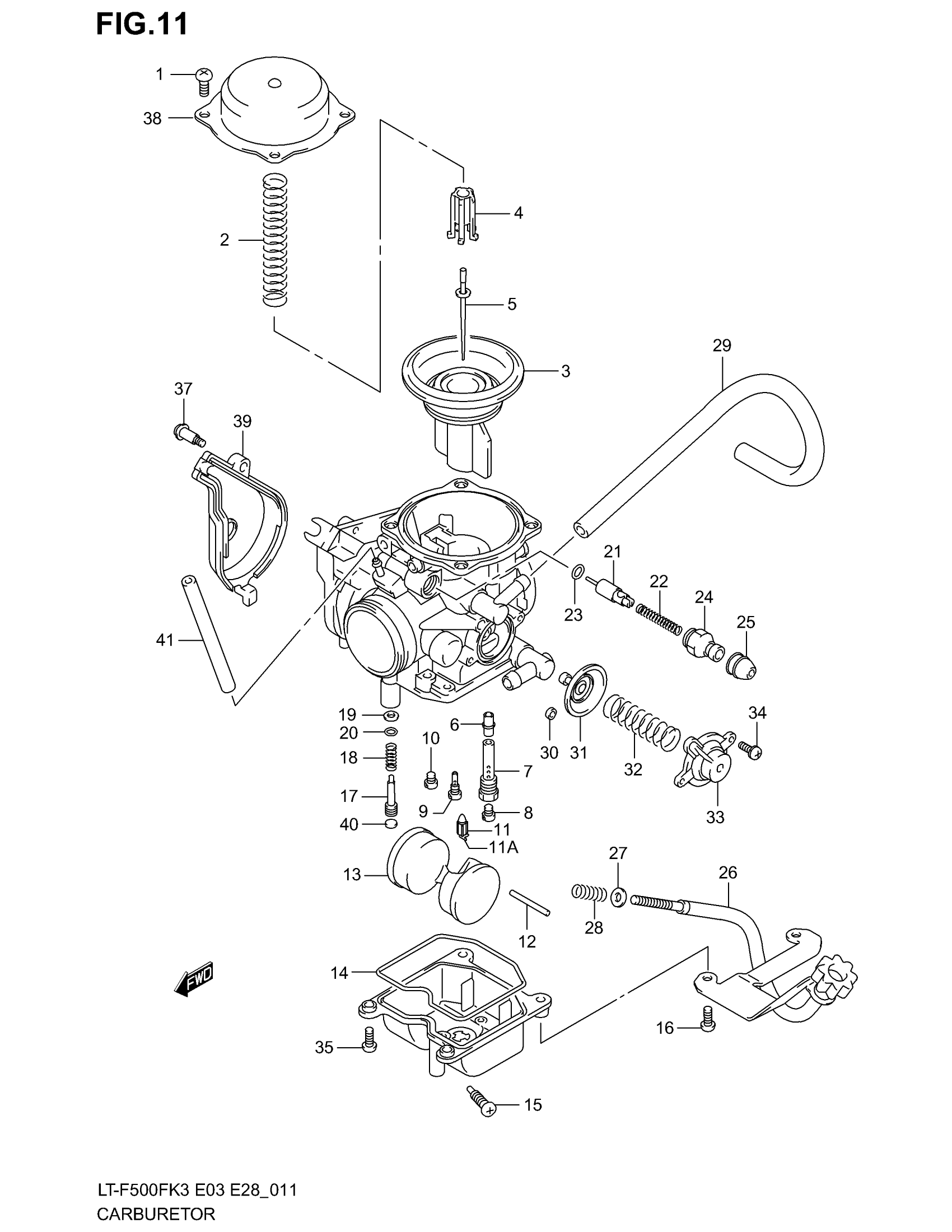

2003 Suzuki LT-F500F Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY

13200-03GF0

1

$896.18

In stock

CARBURETOR ASSY | E33; Includes Item(s) 1 - 39

13200-03GG0

1
Out of stock

1

SCREW

13602-43E00

4
Out of stock

2

SPRING

13503-03G00

1
Out of stock

3

VALVE, PISTON

13501-15F00

1
Out of stock

4

SEAT

13504-15F00

1
Out of stock

5

NEEDLE, JET

13383-03G00

1
Out of stock

6

JET, NEEDLE

13341-03G00

1
Out of stock

7

HOLDER

13342-15F10

1
Out of stock

8

JET, MAIN (#128)

09491-25021

1
Out of stock

9

JET, PILOT (#35)

09492-35020

1
Out of stock

10

JET, STARTER (#65)

09491-65011

1
Out of stock

11

VALVE ASSY, NEEDLE

13370-29F00

1
Out of stock

11A

CLIP

13375-26E00

1
Out of stock

12

PIN

13254-26E00

1
Out of stock

13

FLOAT ASSY

13250-26E00

1
Out of stock

14

O RING

13258-26E00

1
Out of stock

15

DRAIN SCREW

13247-43E00

1
Out of stock

16

SCREW

13602-26E10

2
Out of stock

17

SCREW, ADJUST This part replaces 13279-26E10.

13279-03FA0

1
Out of stock

18

SPRING

13268-26E00

1
Out of stock

19

WASHER

13291-26E00

1
Out of stock

20

O RING

13295-26E00

1
Out of stock

21

STARTER VALVE

13411-03G00

1
Out of stock

22

SPRING

13417-03G00

1
Out of stock

23

O RING

13686-03G00

1
Out of stock

24

HOLDER

13418-03G00

1
Out of stock

25

CAP

13681-28E00

1
Out of stock

26

SCREW,STOP This part replaces 13270-03G00.

13270-03G01

1
Out of stock

27

WASHER

13273-03G00

1
Out of stock

28

SPRING

13268-35F00

1
Out of stock

29

HOSE (370+50)

13683-03GF0

1
Out of stock

30

U RING This part replaces 13486-15F00.

13486-15F01

1
Out of stock

31

DIAPHRAGM This part replaces 13480-38F00.

13480-38F01

1
Out of stock

32

COVER

13481-15F00

1
Out of stock

33

COVER

13484-15F00

1
Out of stock

34

SCREW

13601-15F10

2
Out of stock

35

SCREW

13601-15F00

2
Out of stock

36

SCREW

13601-11F00

1
Out of stock

37

COVER, DIAPHRAGM

13502-03G00

1
Out of stock

38

COVER

13578-03G00

1
Out of stock

39

CAP | E33

13281-26E00

1
Out of stock

40

HOSE,5X10X600 | L:600!180 This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock
