2003 Suzuki LT-F500F AIR Cleaner Diagram

← All diagrams

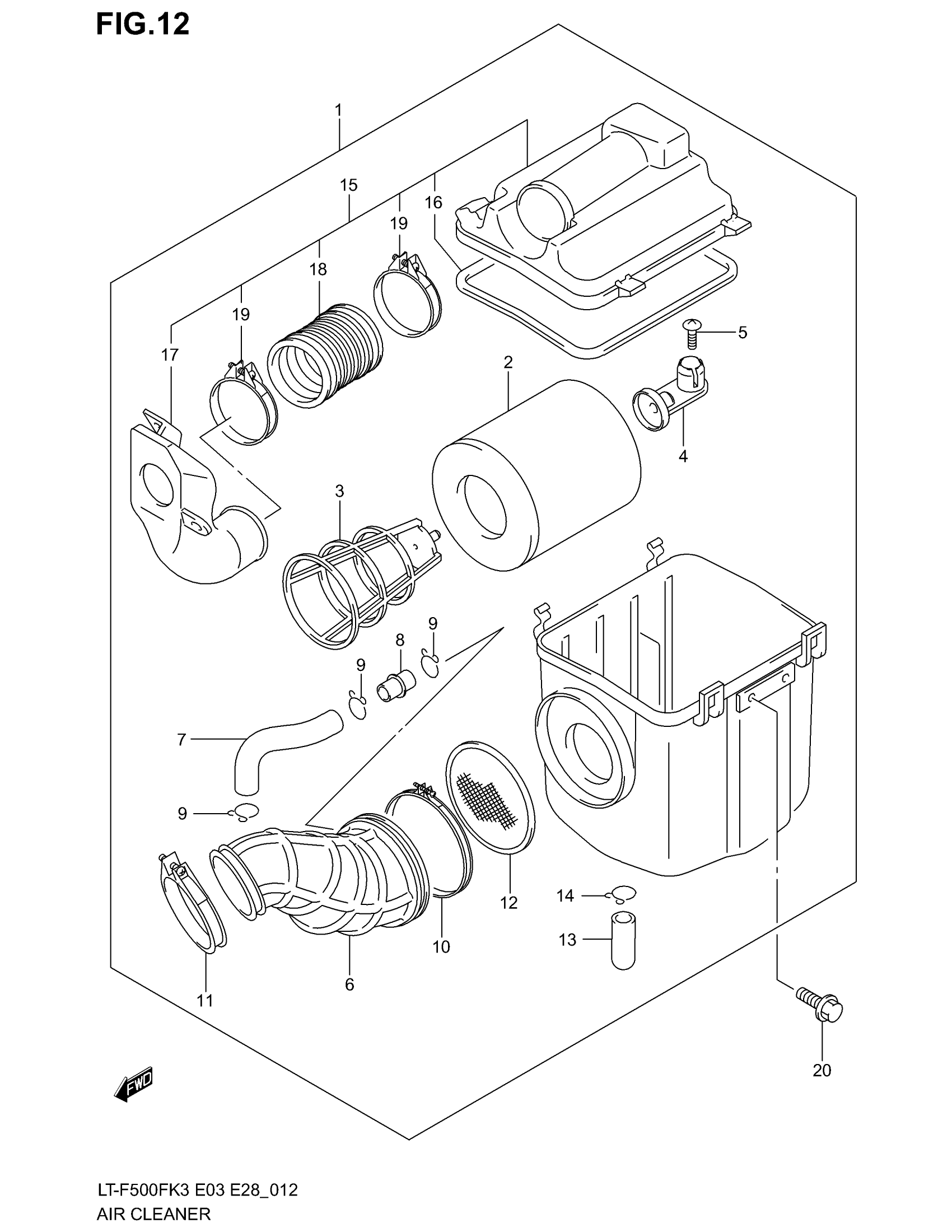

Find the part on the AIR Cleaner diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki LT-F500F AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 19

13700-03GF0

1
Out of stock

2

FILTER

13780-03G00

1

$26.25

In stock

3

HOLDER

13791-03G00

1
Out of stock

4

STOPPER, HOLDER

13792-03G00

1
Out of stock

5

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

6

TUBE, OUTLET

13881-03GF0

1

$69.00

In stock

7

TUBE, BREATHER

13853-03G00

1
Out of stock

8

1

$9.35

In stock

9

CLIP

09401-14301

3

$2.50

In stock

10

.CLAMP, OUTLET TUBE

13826-14D01

1

$9.30

In stock

11

..CLAMP

09402-60208

1

$4.95

In stock

12

.TRAP, FLAME

13810-03G00

1
Out of stock

13

1

$5.63

In stock

14

CLIP

09401-14301

1

$2.50

In stock

15

INLET, AIR CLEANER

13890-03G01

1
Out of stock

16

GASKET

13746-03G00

1
Out of stock

17

DUCT,INLET This part replaces 13896-03G00.

13896-03G01

1
Out of stock

18

1

$13.39

In stock

19

..CLAMP

09402-60208

2

$4.95

In stock

20

BOLT (6X12) This part replaces 09103-06083.

09103-06285

2
Out of stock
