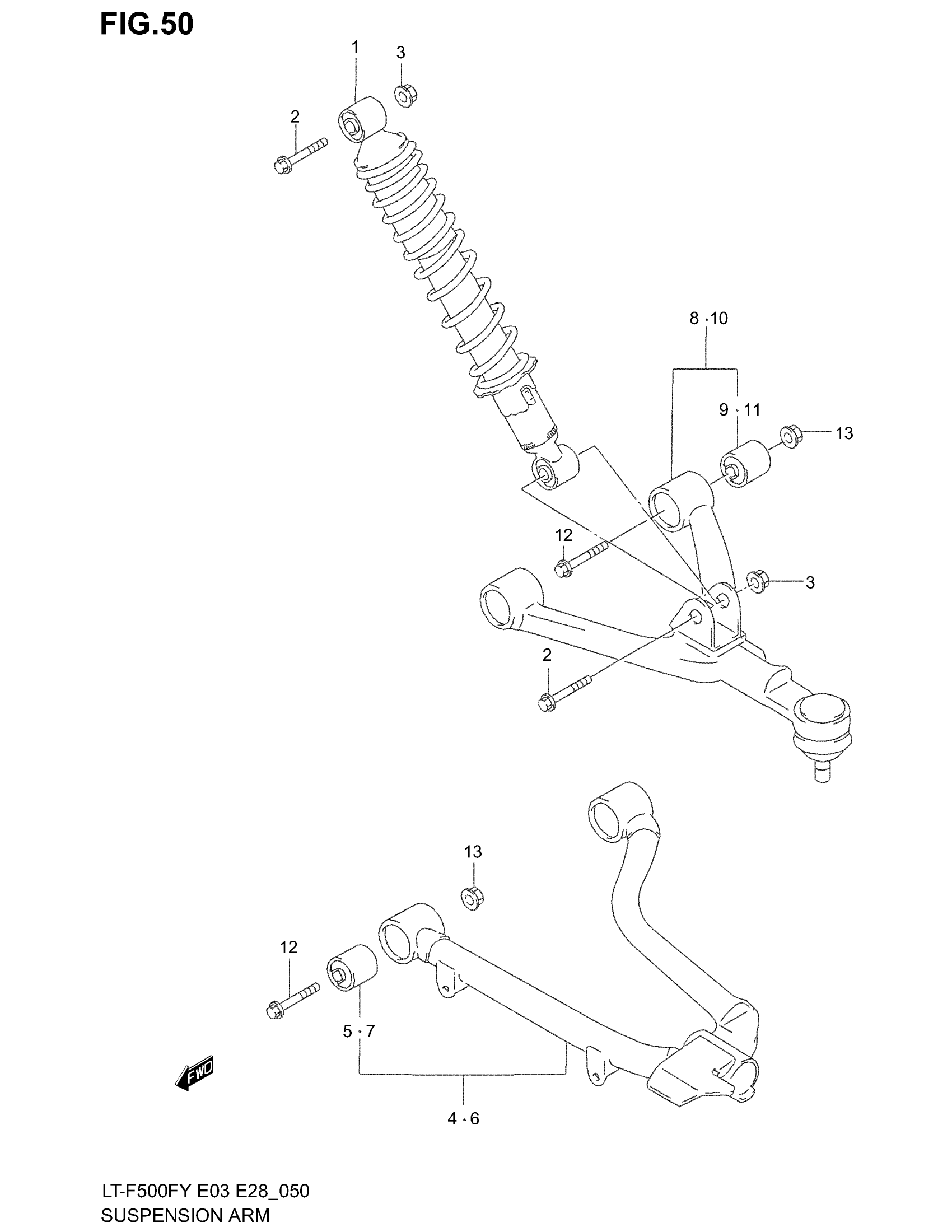

Suzuki LT-F500F (2002) SUSPENSION ARM (MODEL W/X) Diagram

#

Description

Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-09F00-019

Unavailable

2

BOLT (10X48)

09103-10126

$4.50

3

NUT

08319-31107

$2.73

4

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 5

52410-09810

Unavailable

5

BUSH (10X35.1X38)

09319-10055

$21.02

6

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 7

52420-09810

Unavailable

7

BUSH (10X35.1X38)

09319-10055

$21.02

8

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 9

52430-09810

Unavailable

9

BUSH (10X35.1X38)

09319-10055

$21.02

10

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 11

52440-09810

Unavailable

11

BUSH (10X35.1X38)

09319-10055

$21.02

12

BOLT (10X60)

09103-10107

$4.60

13

NUT

08319-31107

$2.73
