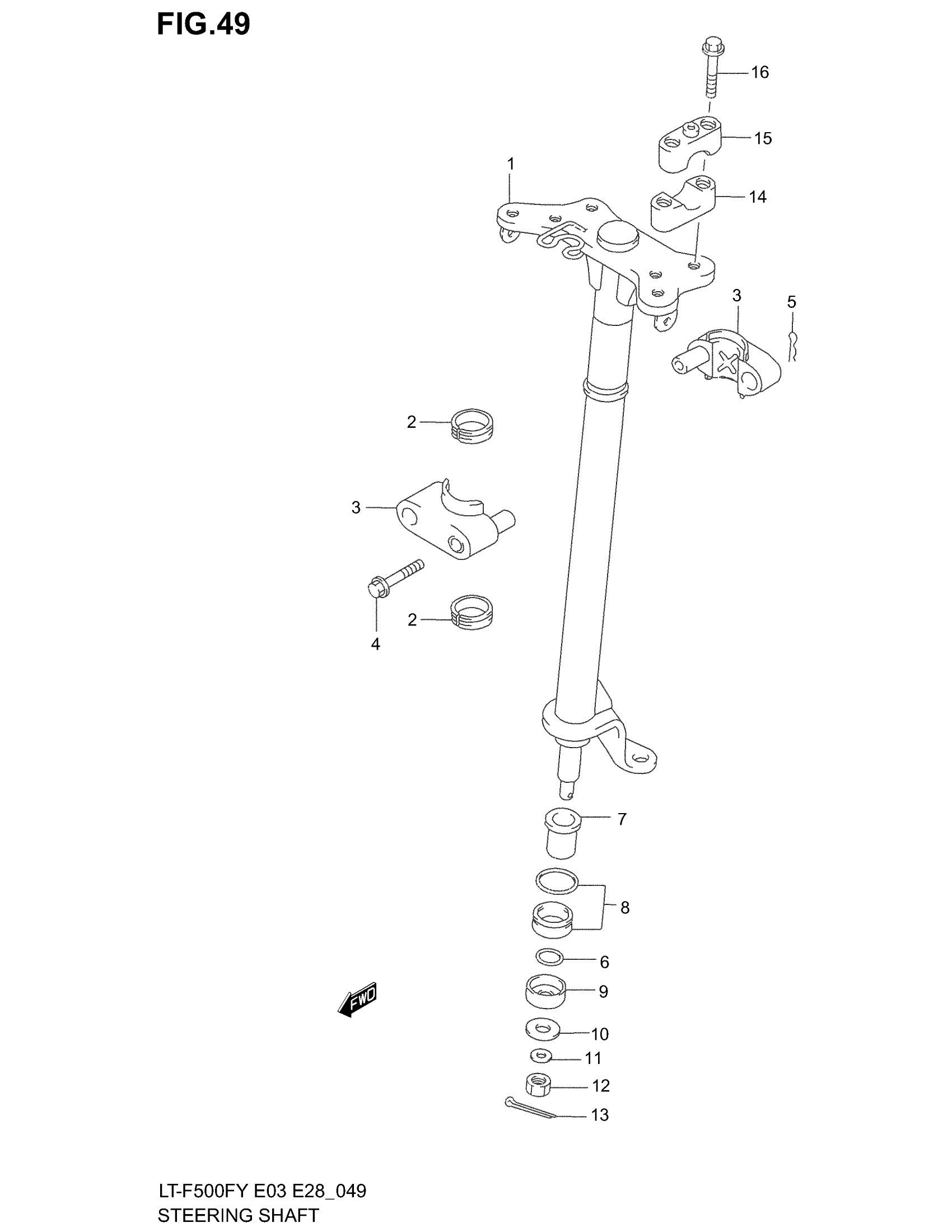

Suzuki LT-F500F (2002) STEERING SHAFT (MODEL W/X) Diagram

#

Description
Price

1

SHAFT, STEERING

51650-09F00

Unavailable

2

DUST SEAL, STEERING HOLDER (27X38X8.5)

51678-24500

$6.64

3

HOLDER,STEERING SHAFT

51670-24500

$23.07

4

BOLT (8X80)

09103-08116

Unavailable

5

CLIP

09385-08002

Unavailable

6

O RING (ID:16.8,D:3.10)

09280-17003

$1.65

7

BUSH, STEERING SHAFT LOWER (17X26X36.9) This part replaces 51661-19B10.

51661-09F00

$30.05

8

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$6.42

9

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$7.13

10

WASHER (12.5X32X4.5)

09160-12094

$3.72

11

LOCK WASHER

09162-12006

$3.85

12

NUT This part replaces 08319-21123.

08319-2112B

$5.18

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

CLAMP, HANDLEBAR LOWER (BLACK)

56211-09F00-291

$29.37

15

HOLDER, HANDLE (BLACK) This part replaces 56211-29900-291.

56211-29900

$15.20

16

BOLT This part replaces 01570-08553.

01570-0855B

$4.32
