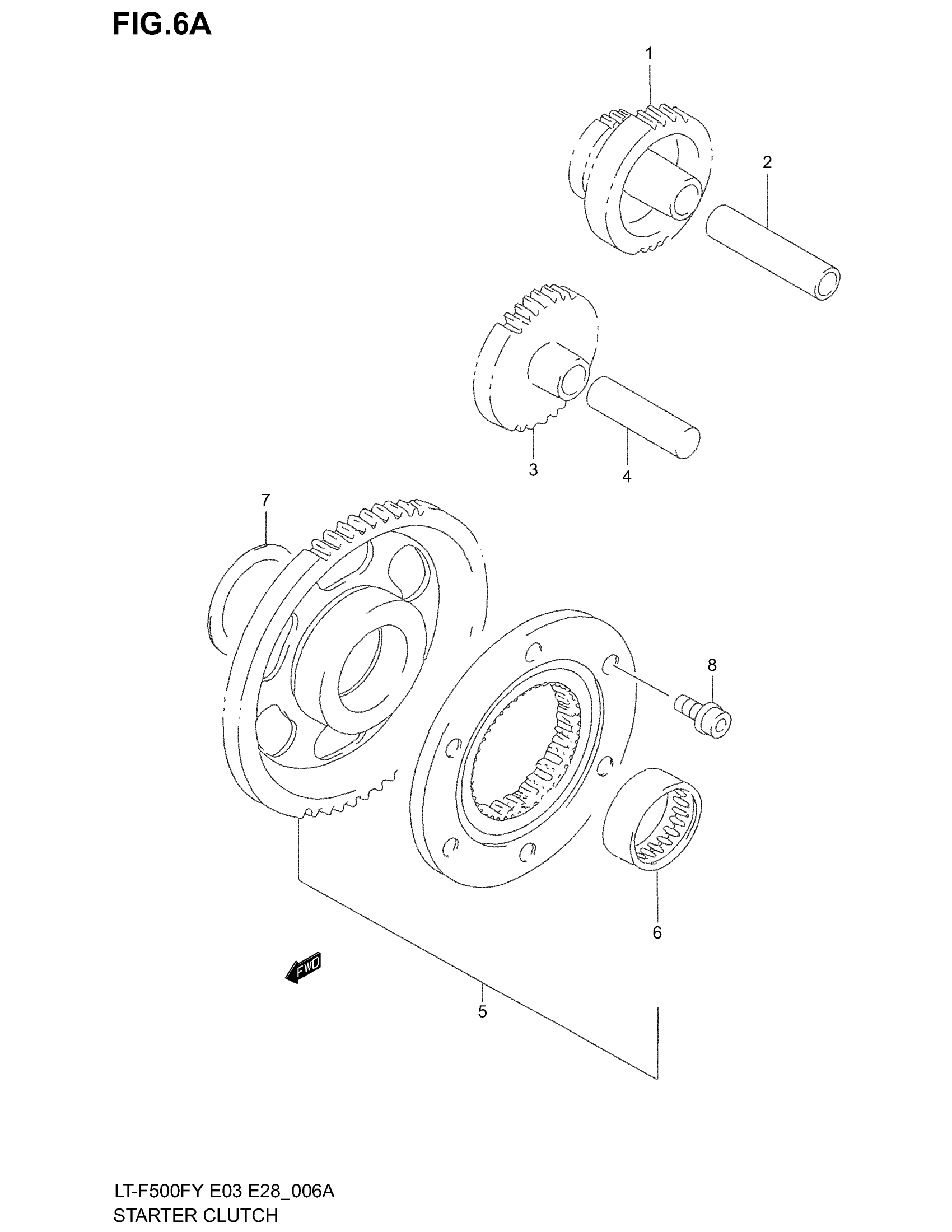

Suzuki LT-F500F (2002) STARTER CLUTCH (MODEL Y/K1/K2) Diagram

#

Description

Price

1

GEAR, STARTER IDLE NO.1 | MODEL Y This part replaces 12611-44D00.

12611-44D10

$74.21

1

GEAR, STARTER IDLE NO.1 | MODEL K1/K2 This part replaces 12611-44D01.

12611-44D10

$74.21

2

PIN

09206-12005

$15.12

3

GEAR, STARTER IDLE NO.2 (NT:27)

12612-12D01

$83.65

4

PIN This part replaces 09202-12002.

09206-12006

$9.43

5

CLUTCH SET, STARTER | Includes Item(s) 6

12600-09860

$347.67

6

BEARING (31X39X17.8)

09263-31009

$47.00

7

WASHER

08211-35505

$9.10

8

BOLT This part replaces 07130-08203.

07130-0820B

$3.49
