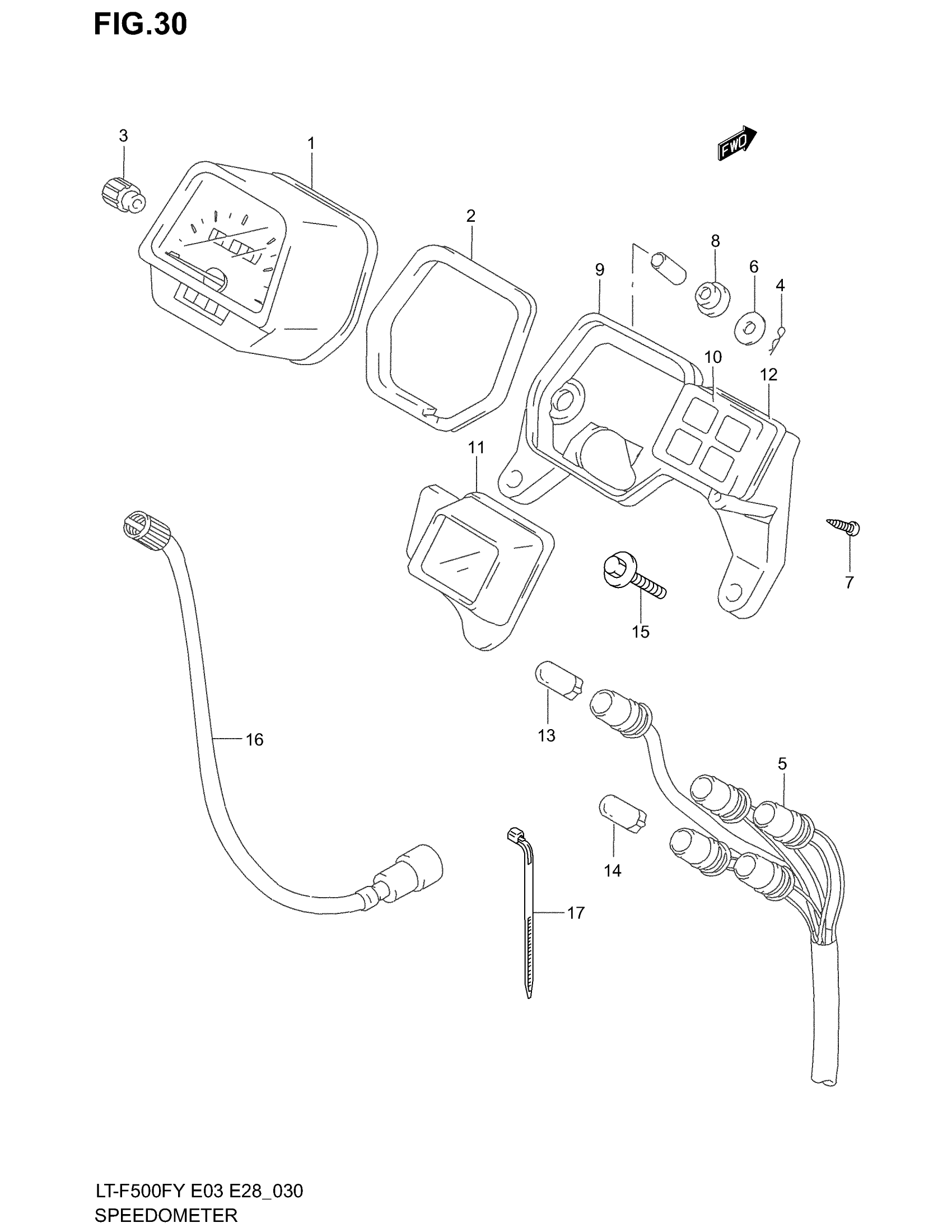

Suzuki LT-F500F (2002) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER

34110-09F00

Unavailable

1

SPEEDOMETER | E28

34110-09F10

Unavailable

2

DAMPER

34114-09F00

$13.03

3

KNOB

34124-09F00

Unavailable

4

SNAP PIN

34136-09F00

$2.87

5

CORD ASSY

34173-09F00

Unavailable

6

WASHER (5.2X18X1.2)

34181-09F00

$2.87

7

.SCREW (3X12)

34183-09F00

$2.56

8

DAMPER This part replaces 34188-09F00.

34188-09F01

$2.96

9

BRACKET ASSY

34950-09F00

Unavailable

10

LENS SET, PILOT

36300-09850

Unavailable

11

PILOT BOX, UPPER CASE

36381-09F00

Unavailable

12

REFLECTOR, PILOT BOX

36386-09F00

Unavailable

13

BULB (12V,1.7W)

09471-12077

$3.55

14

BULB (12V,3.4W)

09471-12028

$1.99

15

BOLT (6X30)

09116-06171

$3.08

16

CABLE ASSY,SPEE This part replaces 34910-09F00.

34910-09F02

$46.55

17

CLAMP | MODEL W This part replaces 09407-18403.

09407-18402

$2.19

17

CLAMP (L:165) | MODEL X/Y/K1/K2

09407-18402

$2.19
