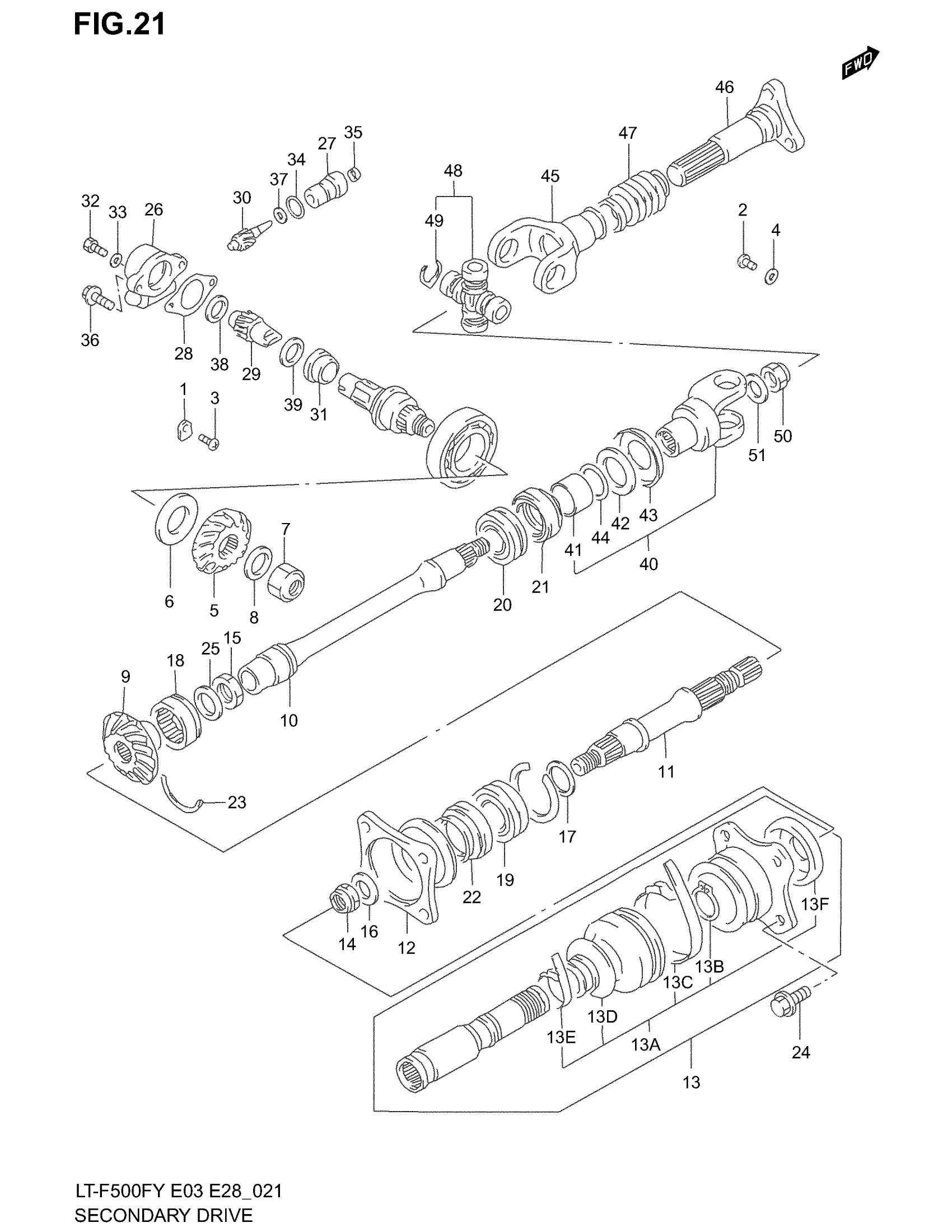

Suzuki LT-F500F (2002) SECONDARY DRIVE (MODEL W/X/Y) Diagram

#

Description
Price

1

RETAINER, SEC DRIVE SFT BRG

24741-21A00

$2.80

2

SCREW | MODEL W This part replaces 02112-06123.

02112-0612A

$1.43

2

SCREW, SEC DRIVE SFT BRG RTNR | MODEL X/Y

09125-06110

$2.13

3

SCREW | MODEL W This part replaces 02112-06123.

02112-0612A

$1.43

3

SCREW, CNTR SHAFT BRG RTNR | MODEL X/Y

09125-06110

$2.13

4

RETAINER, CNTR SHAFT BRG

08211-06165

Unavailable

5

GEAR, SEC DRIVE BEVEL | NT:15 This part replaces 24911-44D10.

24911-44D11

$248.41

6

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

$150.17

7

NUT, SEC DRIVE BEVEL GR

09140-20012

$4.70

8

WASHER, SEC DRIVE BEVEL GR | 20.1X32X2

09164-20007

$5.00

9

GEAR, SEC DRIVEN BEVEL

24921-44D10

$303.00

10

SHAFT, SEC DRIVEN,FR | MODEL W This part replaces 24960-44D50.

24960-44D60

Unavailable

10

SHAFT, SEC DRIVEN,FR | MODEL X/Y

24960-44D60

Unavailable

11

SHAFT, SEC DRIVEN OUTPUT RR This part replaces 24971-44D50.

24971-44D60

Unavailable

12

FLANGE, RR OUTPUT JOINT | MODEL W This part replaces 27140-44D00.

27140-44D10

Unavailable

12

FLANGE, RR OUTPUT JOINT | MODEL X/Y

27140-44D10

Unavailable

13

JOINT ASSY, REAR OUTPUT | Includes Item(s) 13A - 13F

27200-44D00

$548.67

13A

BOOT SET, JOINT

27201-44D00

$101.32

13B

RING, SNAP

27214-44D00

$5.75

13C

BAND

44121-60DB0

$16.15

13D

BOOT

27213-44D00

$59.52

13E

BAND

44124-60DB0

$14.07

13F

SEAL PLATE

27215-44D00

$10.99

14

NUT, REAR OUTPUT JOINT

09159-16003

$4.33

15

NUT, SEC DRIVEN GEAR

09159-22005

$30.17

16

WASHER, REAR OUTPUT FRANGE | 16X30X3

09160-16026

$5.43

17

SHIM, SEC DRIVEN | 25X34X0.6

09181-25051

$3.80

17

SHIM, SEC DRIVEN | 25X34X0.65

09181-25052

$3.80

17

SHIM (25X34X0.7) | 25X34X0.70 This part replaces 09181-25053.

09181-25160

$3.03

17

SHIM, SEC DRIVEN | 25X34X0.75

09181-25054

$3.80

17

SHIM 0.8 | 25X34X0.80 This part replaces 09181-25055.

09181-25162

$2.50

17

SHIM, SEC DRIVEN | 25X34X0.85

09181-25056

$3.72

17

SHIM 0.9 | 25X34X0.90 This part replaces 09181-25057.

09181-25164

$2.50

17

SHIM, SEC DRIVEN | 25X34X0.95

09181-25058

$3.80

17

WASHER, 5TH DRIVE | 25X34X1.00 This part replaces 09181-25059.

09181-25167

$2.85

17

SHIM, SEC DRIVEN | 25X34X1.05

09181-25060

$3.72

17

SHIM, SEC DRIVEN | 25X34X1.10

09181-25061

$4.18

17

SHIM, SEC DRIVEN | 25X34X1.15

09181-25062

$2.30

17

SHIM, SEC DRIVEN | 25X34X1.20

09181-25063

$4.10

18

BEARING (30X50X17) | 30X50X17 This part replaces 09263-30010.

09263-30050

$62.02

19

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

$135.30

20

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

$135.30

21

OIL SEAL, DRIVEN SFT,FR | 34X52X9

09283-34008

$18.71

22

OIL SEAL, DRIVEN SFT,RR | 34X52X9

09283-34008

$18.71

23

RING, SEC DRIVEN BRG,M

09390-50002

$3.30

24

BOLT | MODEL W This part replaces 07130-08163.

07130-0816A

$2.90

24

BOLT, RR OUTPUT JOINT | MODEL X/Y

09106-08095

$0.88

25

WASHER, SEC DRIVEN

08211-22365

$6.48

26

HOUSING, ODOMETER GEAR

26441-19B01

$71.65

27

SLEEVE

26442-19B00

$45.52

28

GASKET

26451-19B12

$4.32

29

GEAR, DRIVE

26461-44D00

Unavailable

30

GEAR, DRIVEN

26471-44D00

Unavailable

31

SPACER, DRIVEN GEAR

26481-19B00

Unavailable

32

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$2.80

33

WASHER, DRIVEN | 6.2X11X1.2

09168-06004

$1.43

34

O RING | ID:16.6,DD:1.9

09280-17004

$3.98

35

SEAL, DRIVEN GEAR

09289-05002

$7.61

36

BOLT, GEAR SLV

09103-06201

$2.54

37

WASHER, DRIVEN GR

08211-08151

$1.42

38

WASHER, DRIVE GR

08211-15201

$2.58

39

WASHER, DRIVE GR,RH

08211-17241

$2.53

40

YOKE, FR DRIVE OUTPUT | Includes Item(s) 41 - 44 This part replaces 27130-19B00.

27130-19B10

$206.47

41

COLLAR, YOKE

27591-19B01

$25.08

42

PLATE, YOKE COLLAR

27592-19B00

$7.28

43

PLATE, YOKE COLLAR

09165-30003

Unavailable

44

O RING, YOKE COLLAR | ID:28,DD:1.0

09280-28007

$2.19

45

YOKE, PROP SFT JOINT

27140-19B00

Unavailable

46

SHAFT, PROPELLER | MODEL W

27150-44D00

Unavailable

46

SHAFT, PROPELLER | MODEL X/Y

27150-44D20

Unavailable

47

BOOT, PROP SHAFT

27153-62021

$12.87

48

JOINT SET, UNIVERSAL RR | Includes Item(s) 49 This part replaces 27200-73813.

27200-73814

$46.36

49

CIRCLIP

09380-25005

$1.68

50

NUT, FR YOKE

09159-16003

$4.33

51

WASHER, FR DRIVE OUTPUT YOKE | 16X30X3

09160-16026

$5.43
