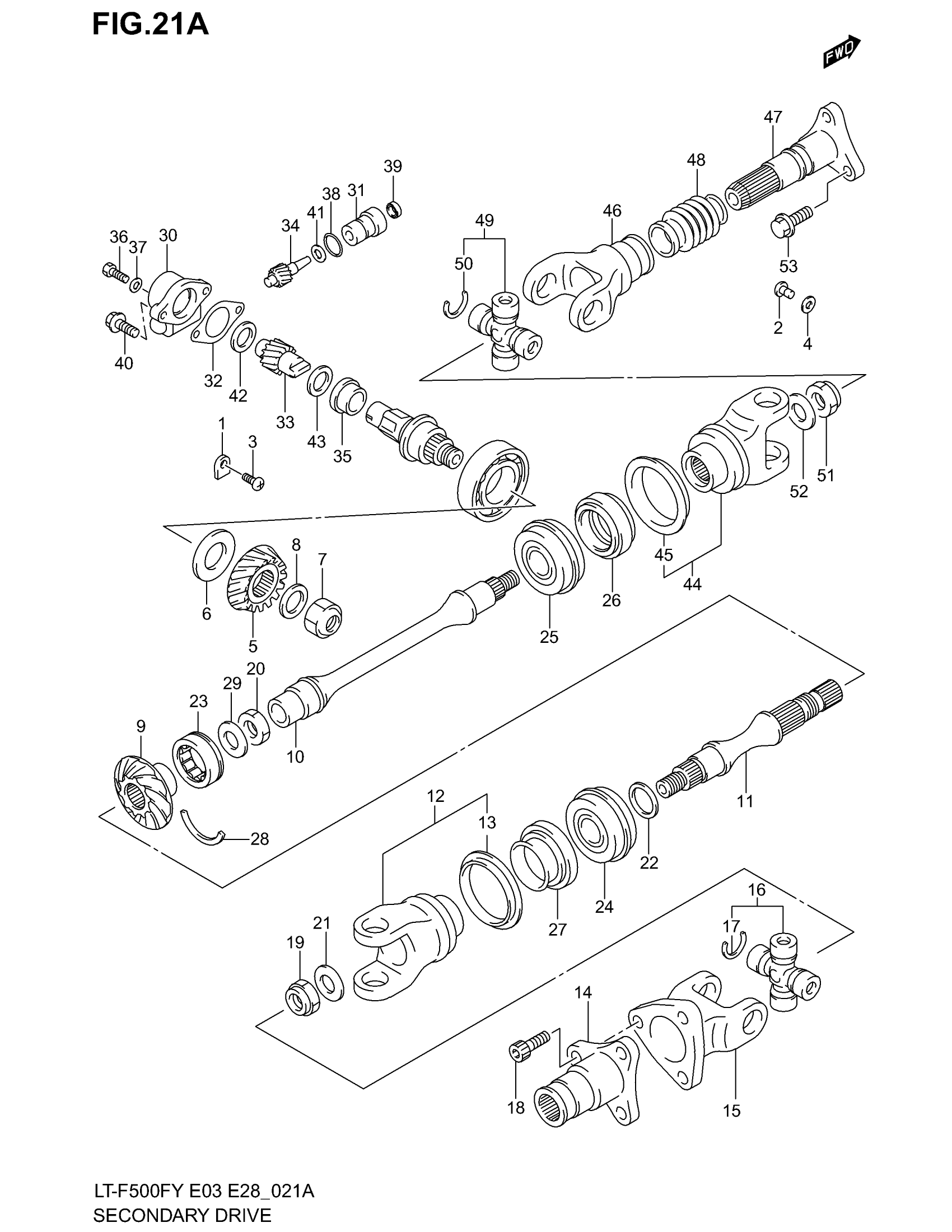

Suzuki LT-F500F (2002) SECONDARY DRIVE (MODEL K1/K2) Diagram

#

Description
Price

1

RETAINER, SEC DRIVE SFT BRG

24741-21A00

$2.80

2

SCREW, SEC DRIVE SFT BRG RTNR

09125-06110

$2.13

3

SCREW, CNTR SHAFT BRG RTNR

09125-06110

$2.13

4

RETAINER, CNTR SHAFT BRG

08211-06165

Unavailable

5

GEAR, SEC DRIVE BEVEL | NT:15

24911-44D11

$248.41

6

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

$150.17

7

NUT, SEC DRIVE BEVEL GR

09140-20012

$4.70

8

WASHER, SEC DRIVE BEVEL GR | 20.1X32X2

09164-20007

$5.00

9

GEAR, SEC DRIVEN BEVEL

24921-44D10

$303.00

10

SHAFT, SEC DRIVEN,FR

24960-44D60

Unavailable

11

SHAFT, SEC DRIVEN OUTPUT RR

24971-44D60

Unavailable

12

YOKE, REAR DRIVE OUTPUT | Includes Item(s) 13 This part replaces 27130-38F00.

27130-03G00

$205.45

13

PLATE, OUTPUT

27592-38F00

$12.80

14

SHAFT, PROPELLER REAR

27150-38F00

$150.43

15

YOKE, PROP SHAFT JOINT RR This part replaces 27161-38F10.

27161-38F11

$186.60

16

JOINT SET,UNIVERSAL | Includes Item(s) 17 This part replaces 27200-19810.

27200-19811

$54.50

17

CIRCLIP

09380-20016

$2.34

18

BOLT This part replaces 07130-10203.

07130-1020B

$5.00

19

NUT, REAR OUTPUT JOINT

09159-16003

$4.33

20

NUT, SEC DRIVEN GEAR

09159-22005

$30.17

21

WASHER, REAR OUTPUT FRANGE | 16X30X3

09160-16026

$5.43

22

SHIM, SEC DRIVEN | 25X34X0.6

09181-25051

$3.80

22

SHIM, SEC DRIVEN | 25X34X0.65

09181-25052

$3.80

22

SHIM (25X34X0.7) | 25X34X0.70 This part replaces 09181-25053.

09181-25160

$3.03

22

SHIM, SEC DRIVEN | 25X34X0.75

09181-25054

$3.80

22

SHIM 0.8 | 25X34X0.80 This part replaces 09181-25055.

09181-25162

$2.50

22

SHIM, SEC DRIVEN | 25X34X0.85

09181-25056

$3.72

22

SHIM 0.9 | 25X34X0.90 This part replaces 09181-25057.

09181-25164

$2.50

22

SHIM, SEC DRIVEN | 25X34X0.95

09181-25058

$3.80

22

WASHER, 5TH DRIVE | 25X34X1.00 This part replaces 09181-25059.

09181-25167

$2.85

22

SHIM, SEC DRIVEN | 25X34X1.05

09181-25060

$3.72

22

SHIM, SEC DRIVEN | 25X34X1.10

09181-25061

$4.18

22

SHIM, SEC DRIVEN | 25X34X1.15

09181-25062

$2.30

22

SHIM, SEC DRIVEN | 25X34X1.20

09181-25063

$4.10

23

BRG, SEC DRIVEN GEAR,M | 30X50X17

09263-30050

$62.02

24

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

$135.30

25

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

$135.30

26

OIL SEAL, DRIVEN SFT,FR | 34X52X9

09283-34008

$18.71

27

OIL SEAL, DRIVEN SFT,RR | 34X52X9

09283-34008

$18.71

28

RING, SEC DRIVEN BRG,M

09390-50002

$3.30

29

WASHER, SEC DRIVEN

08211-22365

$6.48

30

HOUSING, ODOMETER GEAR

26441-19B01

$71.65

31

SLEEVE

26442-19B00

$45.52

32

GASKET

26451-19B12

$4.32

33

GEAR, DRIVE

26461-44D00

Unavailable

34

GEAR, DRIVEN

26471-44D00

Unavailable

35

SPACER, DRIVEN GEAR

26481-19B00

Unavailable

36

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$2.80

37

WASHER, DRIVEN | 6.2X11X1.2

09168-06004

$1.43

38

O RING | ID:16.6,DD:1.9

09280-17004

$3.98

39

SEAL, DRIVEN GEAR

09289-05002

$7.61

40

BOLT, GEAR SLV

09103-06201

$2.54

41

WASHER, DRIVEN GR

08211-08151

$1.42

42

WASHER, DRIVE GR

08211-15201

$2.58

43

WASHER, DRIVE GR,RH

08211-17241

$2.53

44

YOKE, REAR DRIVE OUTPUT | Includes Item(s) 45 This part replaces 27130-38F00.

27130-03G00

$205.45

45

PLATE, OUTPUT

27592-38F00

$12.80

46

YOKE, REAR DRIVE OUTPUT | MODEL K1 This part replaces 27140-38F00.

27140-03G00

$154.17

46

YOKE, REAR DRIVE OUTPUT | MODEL K2 This part replaces 27140-38F10.

27140-03G00

$154.17

47

SHAFT, PROPELLER

27151-09F70

Unavailable

48

BOOT, PROP SHAFT

27153-62021

$12.87

49

JOINT SET,UNIVERSAL | Includes Item(s) 50 This part replaces 27200-19810.

27200-19811

$54.50

50

CIRCLIP

09380-20016

$2.34

51

NUT, FR YOKE

09159-16003

$4.33

52

WASHER, FR DRIVE OUTPUT YOKE | 16X30X3

09160-16026

$5.43

53

BOLT, PROP SHAFT REAR | MODEL K1 This part replaces 01550-10203.

01550-1020A

$2.80

53

BOLT, PROPELLER SHAFT | MODEL K2

09103-10310

$2.84
